• 150W. RMS.
• 99 SPL (1W/1m)
• 10" koaksiaalikaiutin, jossa on integroitu 1" HF-kaiutin.
• Hajontakulma 75° x75°.
• Erittäin alhainen herkkyys palautetta varten.
• Oikosulkusuojaus ja rajoitin takaavat luotettavan drift.
• Säädettävä äänenvoimakkuus ja virtakytkin suoraan monitorissa.

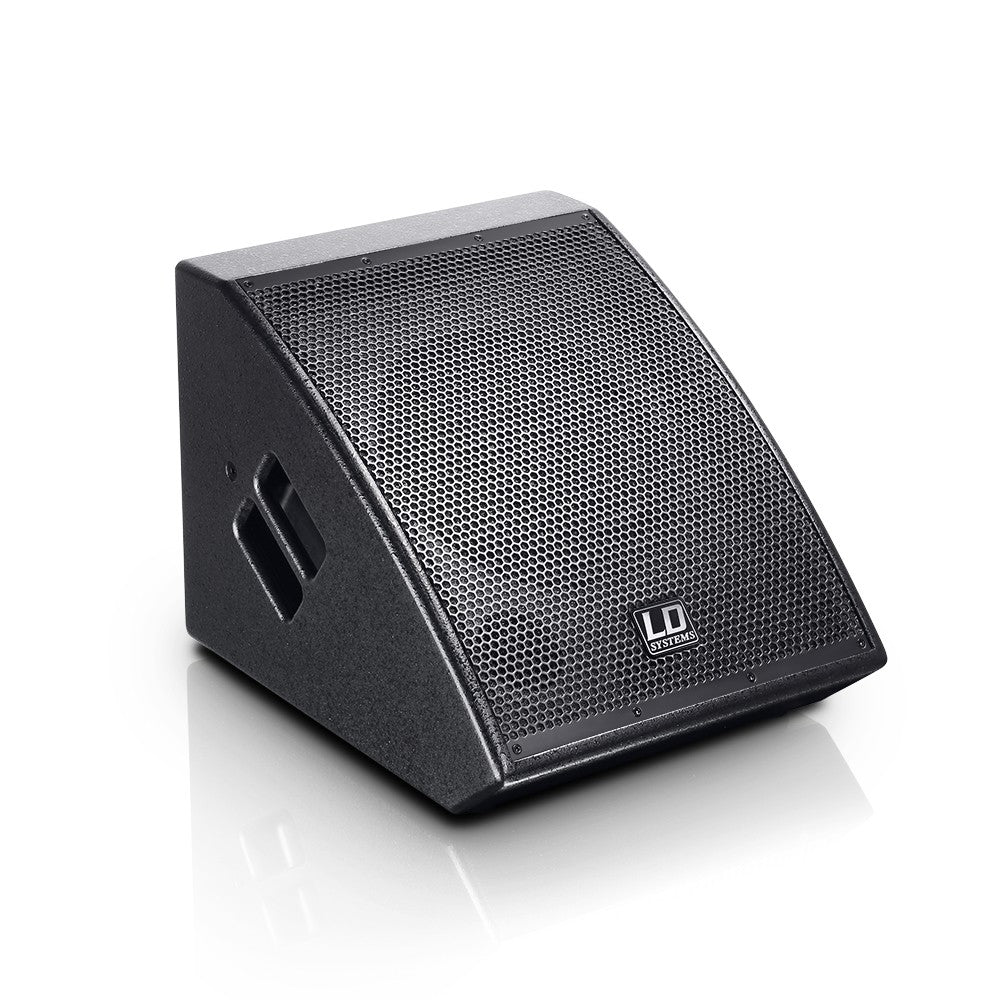

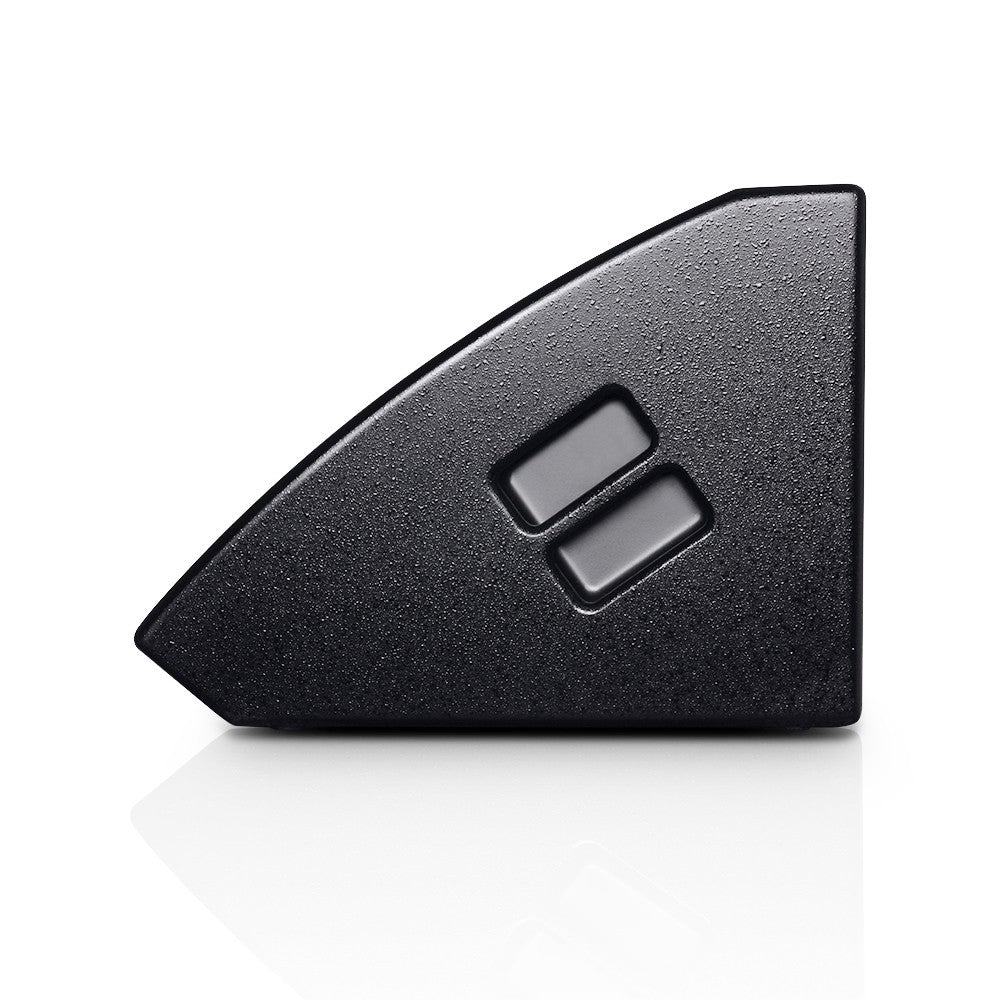

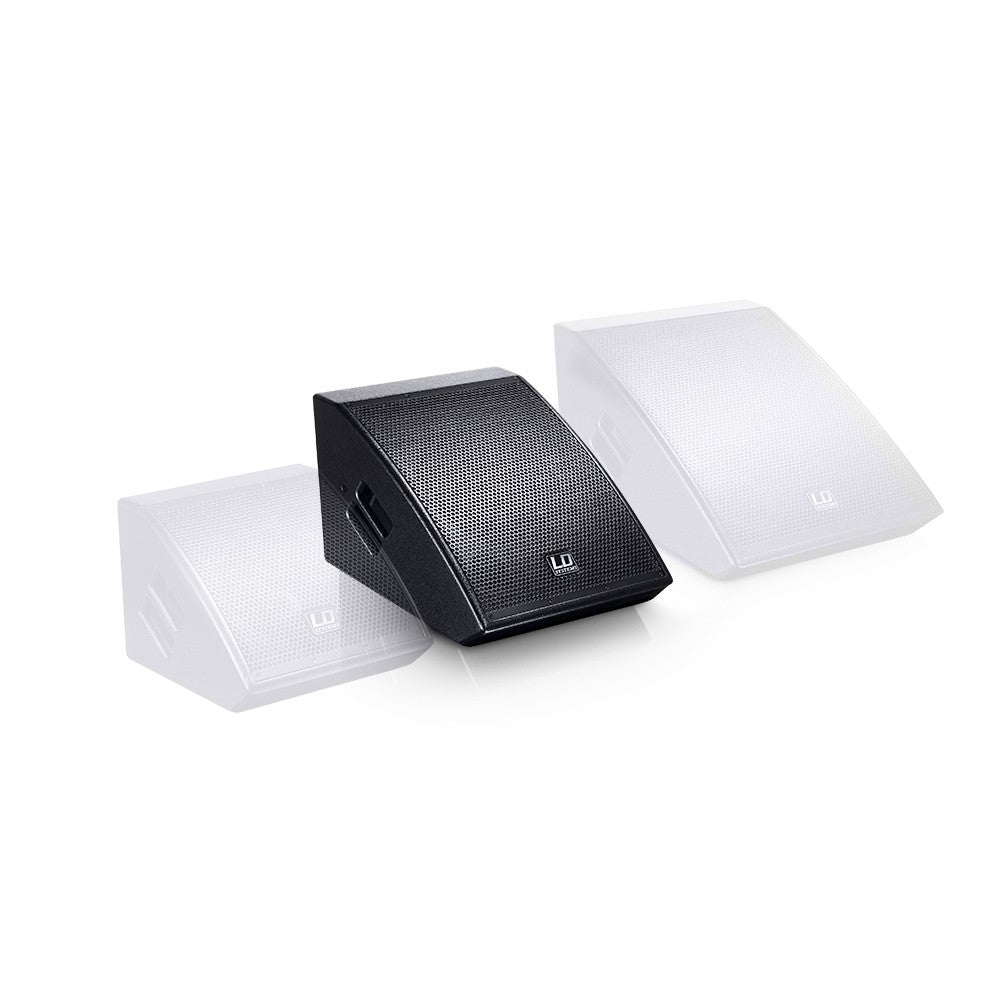

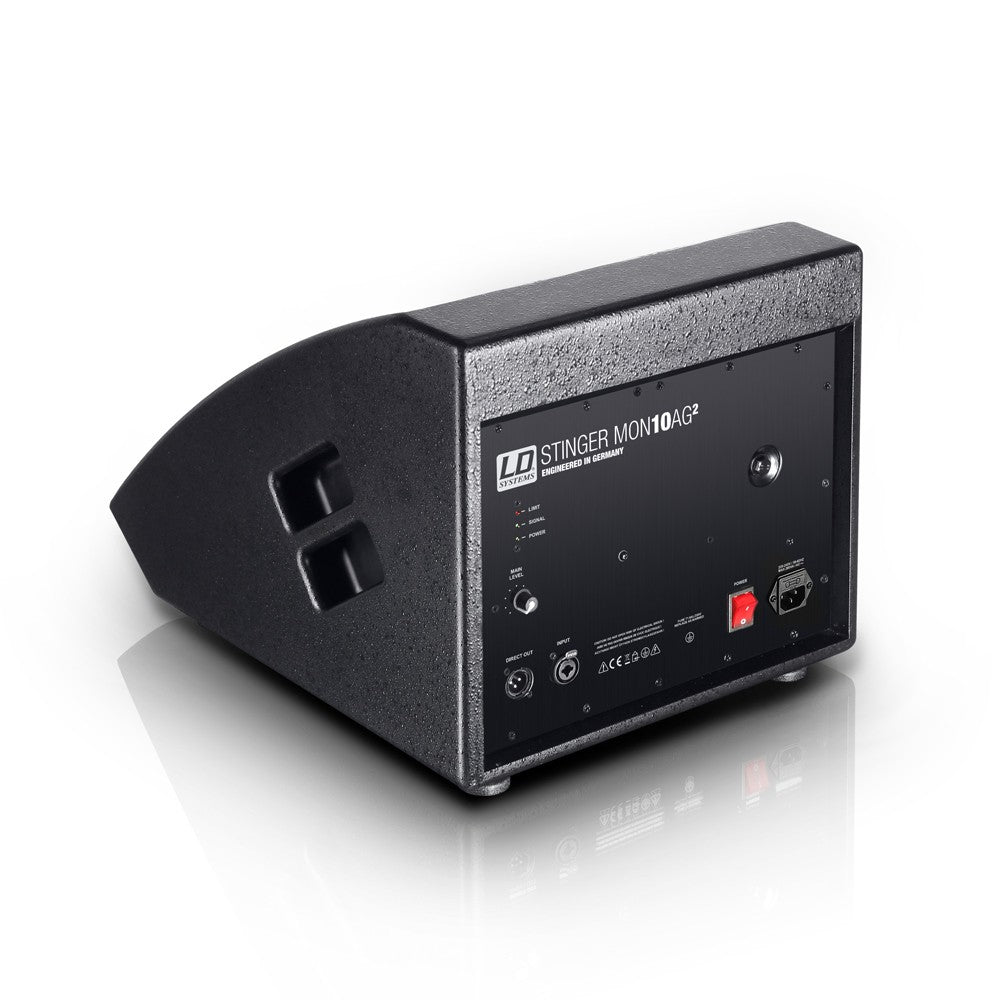

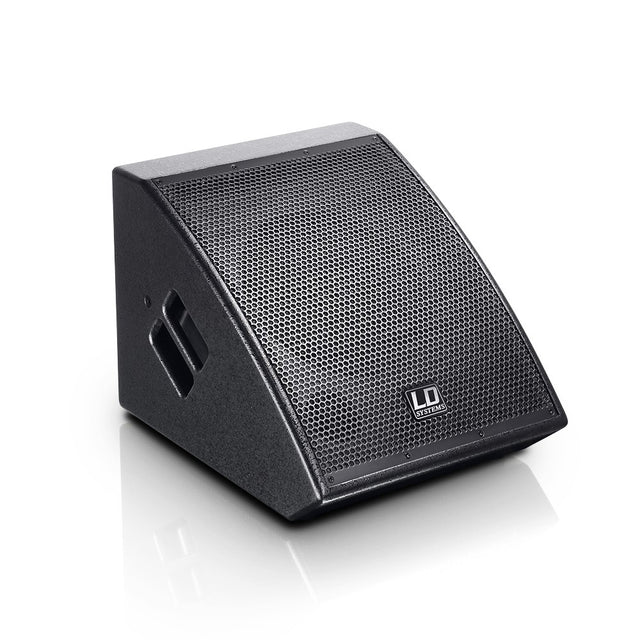

LD Systems Stinger MON-101A G2

Tämä on erittäin kompakti aktiivimonitori, jonka taajuusalue on erittäin laaja ja enimmäisäänenpainetaso 121 dB.

Product type

PA loudspeaker

---

Type

Actives

---

Low/mid driver dimensions

10 "

---

Woofer size

254 mm

---

Woofer type

coaxial loudspeaker

---

Woofer magnet

Ferrite

---

Woofer brand

Custom-made

---

Woofer voice coil

2 "

---

Woofer voice coil (mm)

50.8 mm

---

HF driver dimensions

1 "

---

HF Driver Size

25.4 mm

---

HF driver magnet

Ferrite

---

HF driver brand

Custom-made

---

HF driver voice coil

1 "

---

HF Driver Voice Coil

25.4 mm

---

Amplifier

Class A/B

---

Dispersion (H x V)

75 x 75 °

---

RMS

150 W

---

Peak power

600 W

---

Frequency response

90 - 20000 Hz

---

Crossover frequency

3300 Hz

---

SPL (1W/1m)

99 dB

---

Max. SPL (continuous)

113 dB

---

Max. SPL (peak)

121 dB

---

Protection circuits

limiter , short circuit

---

Controls

On / Off , volume

---

Indicators

Limit , Power , Signal

---

Line Inputs

1

---

Line input connectors

6.3 mm jack , XLR

---

Line Outputs

1

---

Line output connectors

XLR

---

Operating voltage

transformer

---

Operating voltage

230 V AC / 50-60 Hz

---

Cabinet material

15 mm Plywood

---

Cabinet construction

vented

---

Monitor angle

35 °

---

Width

380 mm

---

Depth

335 mm

---

Height

466 mm

---

Weight

15,3 kg

---

Features

ergonomically shaped insert handles
