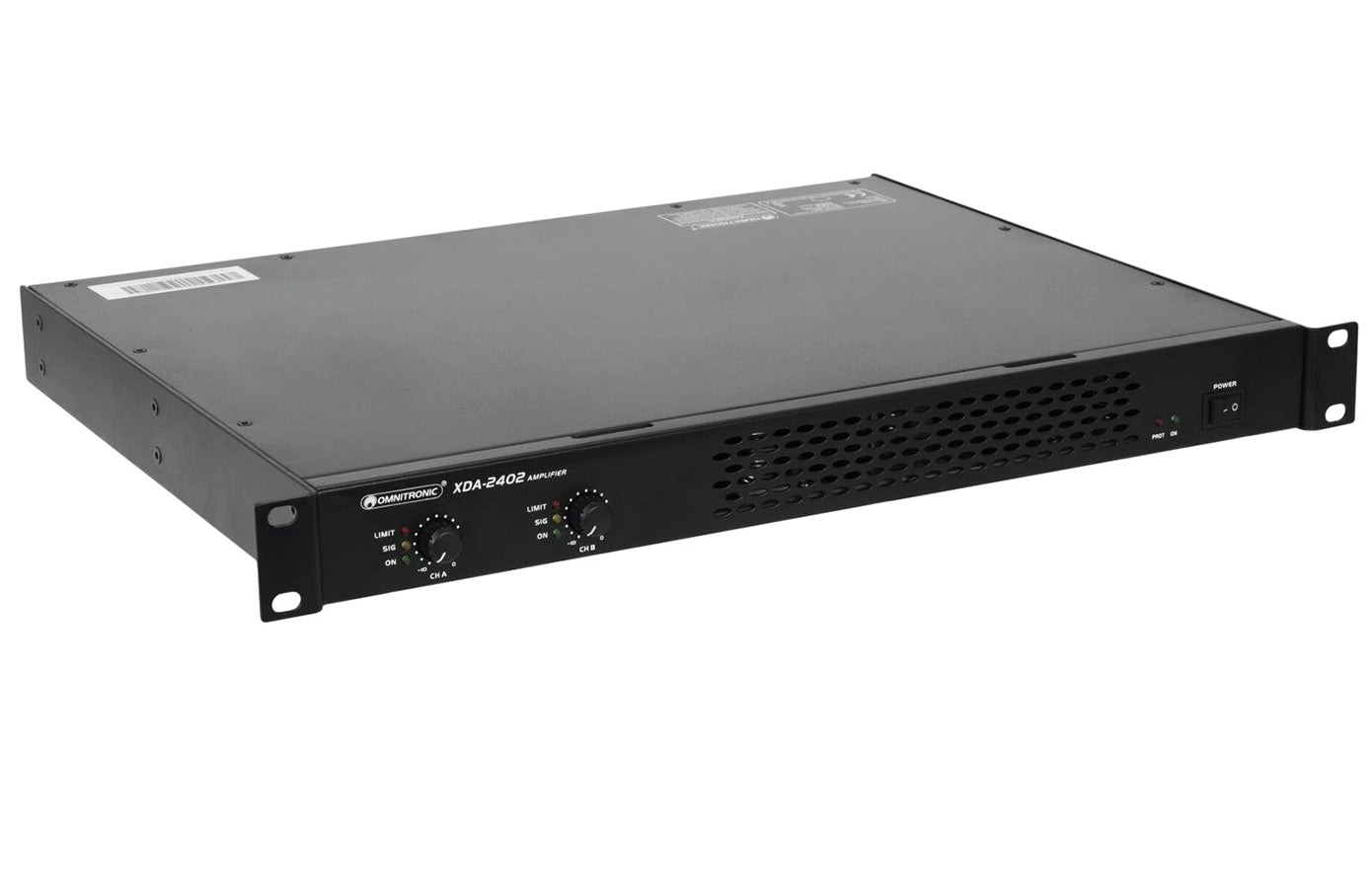

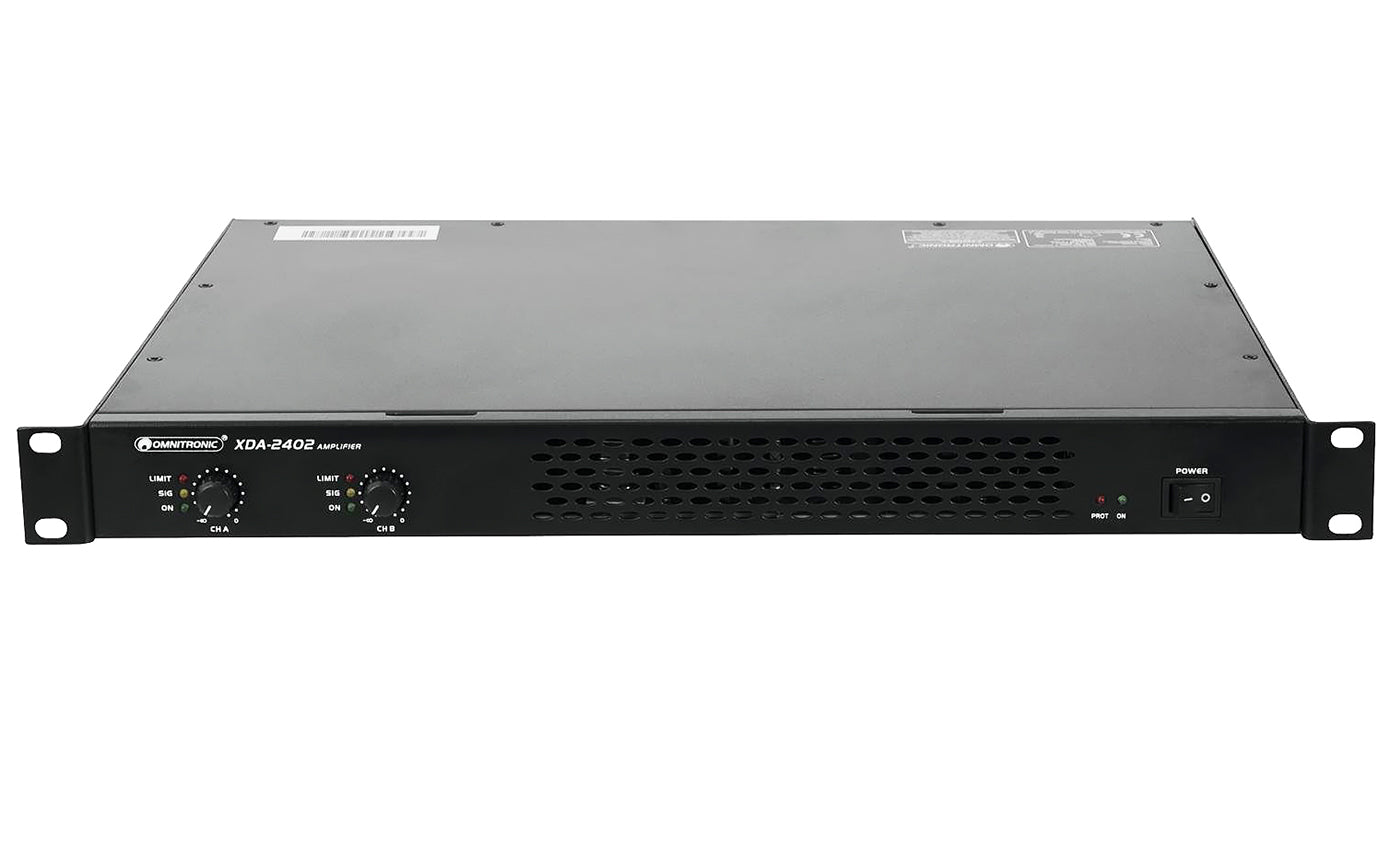

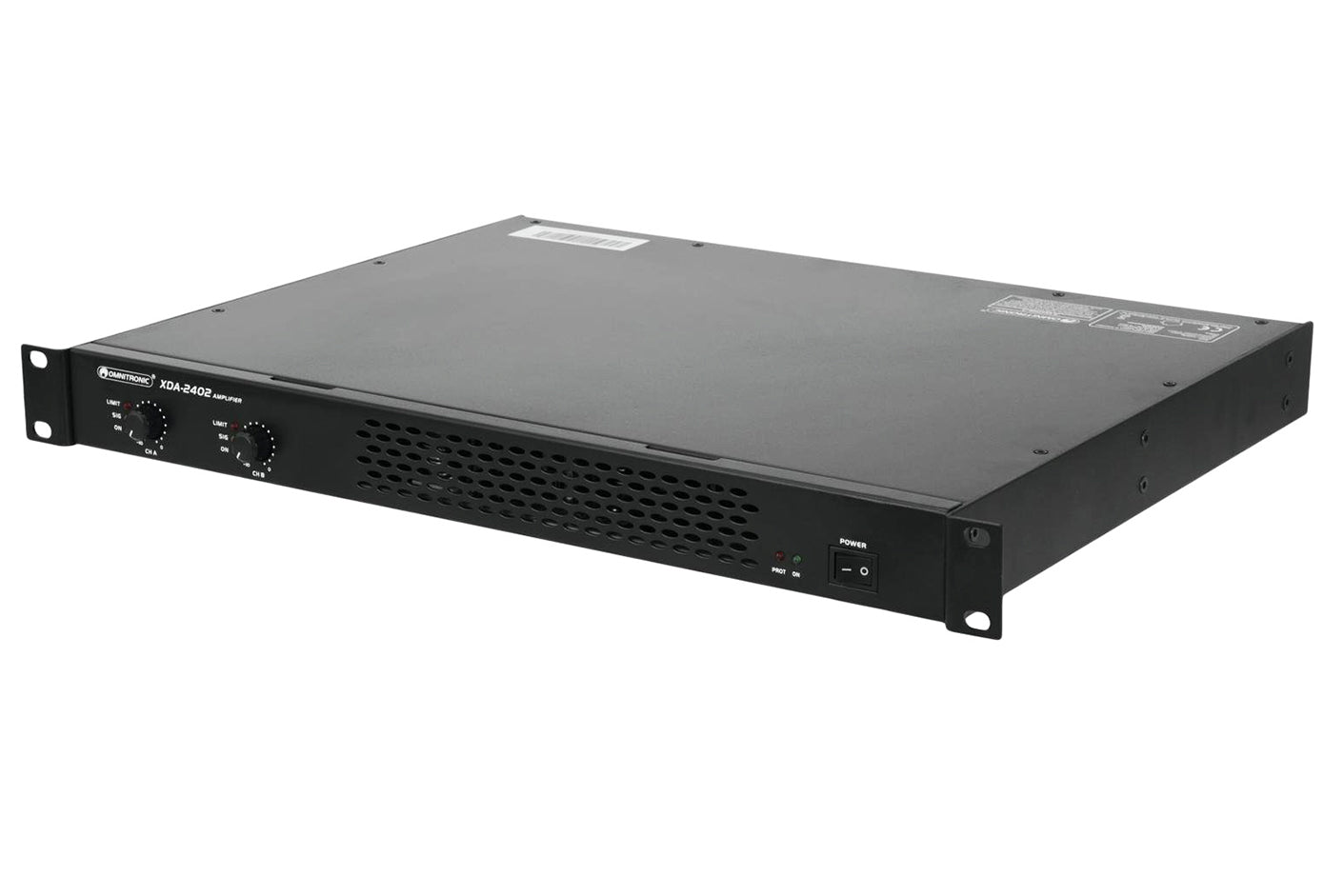

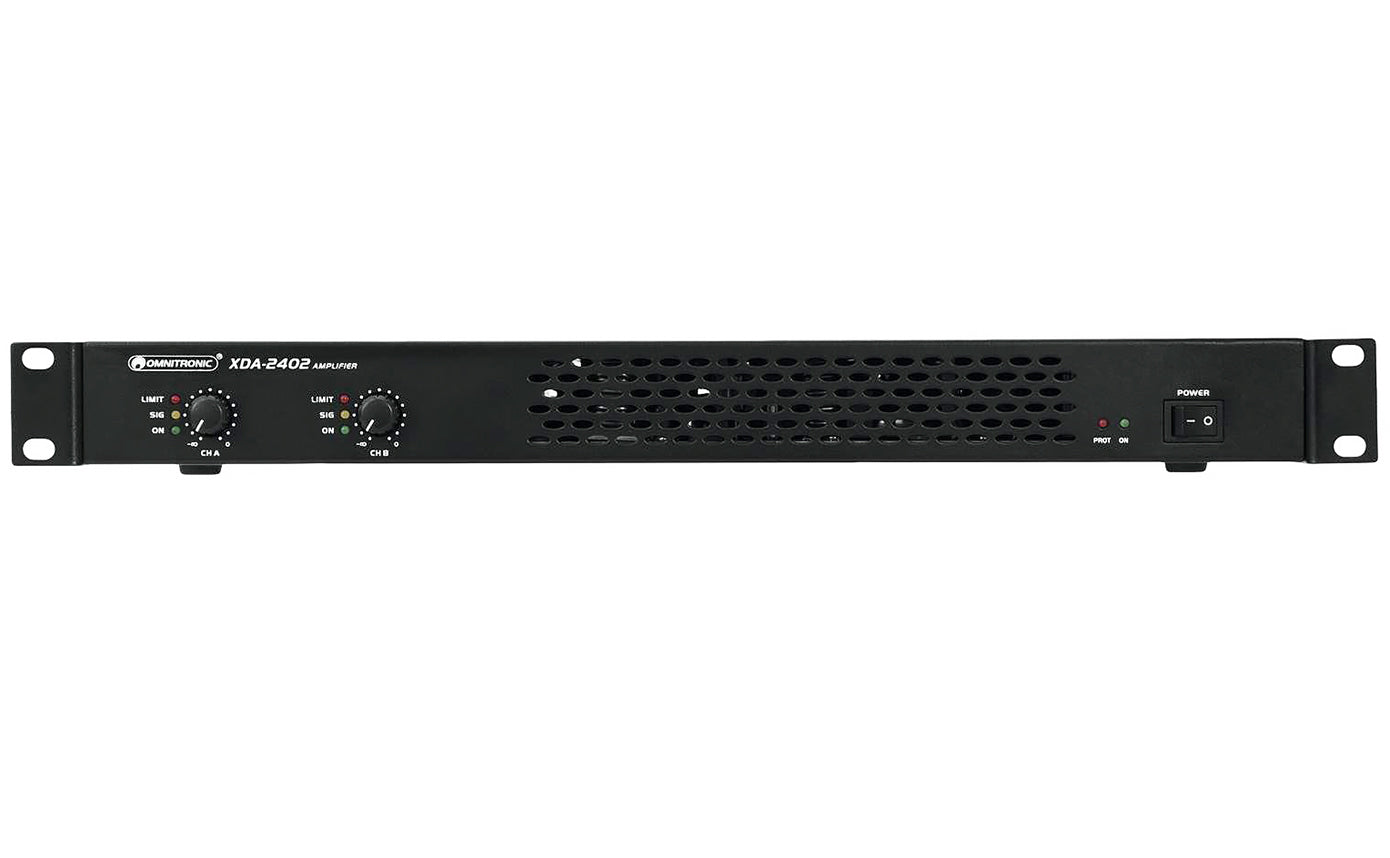

Omnitronic XDA-2402 PA-digitaalivahvistin
€565,25
Kpl. hinta
/
Ei saatavilla
Kuvaus
Kuvaus
- Omnitronic XDA-2402 Luokka D-vahvistin
-
Stereo PA-vahvistin ja SMPS
-
2 x 1200W osoitteessa 4 ohmia / 2 x 880W osoitteessa 8 ohmia.
-
19" telineasennus 1U
- Mustaksi maalattu teräsrunko
Erityisominaisuudet
Erityisominaisuudet
-
Weight (kg)
Lisätiedot
Lisätiedot
- Low weight and height due to integrated switch mode power supply
- Speaker switch-on delay and auto limiters
- 2 level controls
- LEDs for activated protective circuit, limiter, signal, and power
- Complete protection set against short-circuit, overheat, DC voltage, power on/off transients, soft start
- Ground lift switch against humming
- Fan cooling

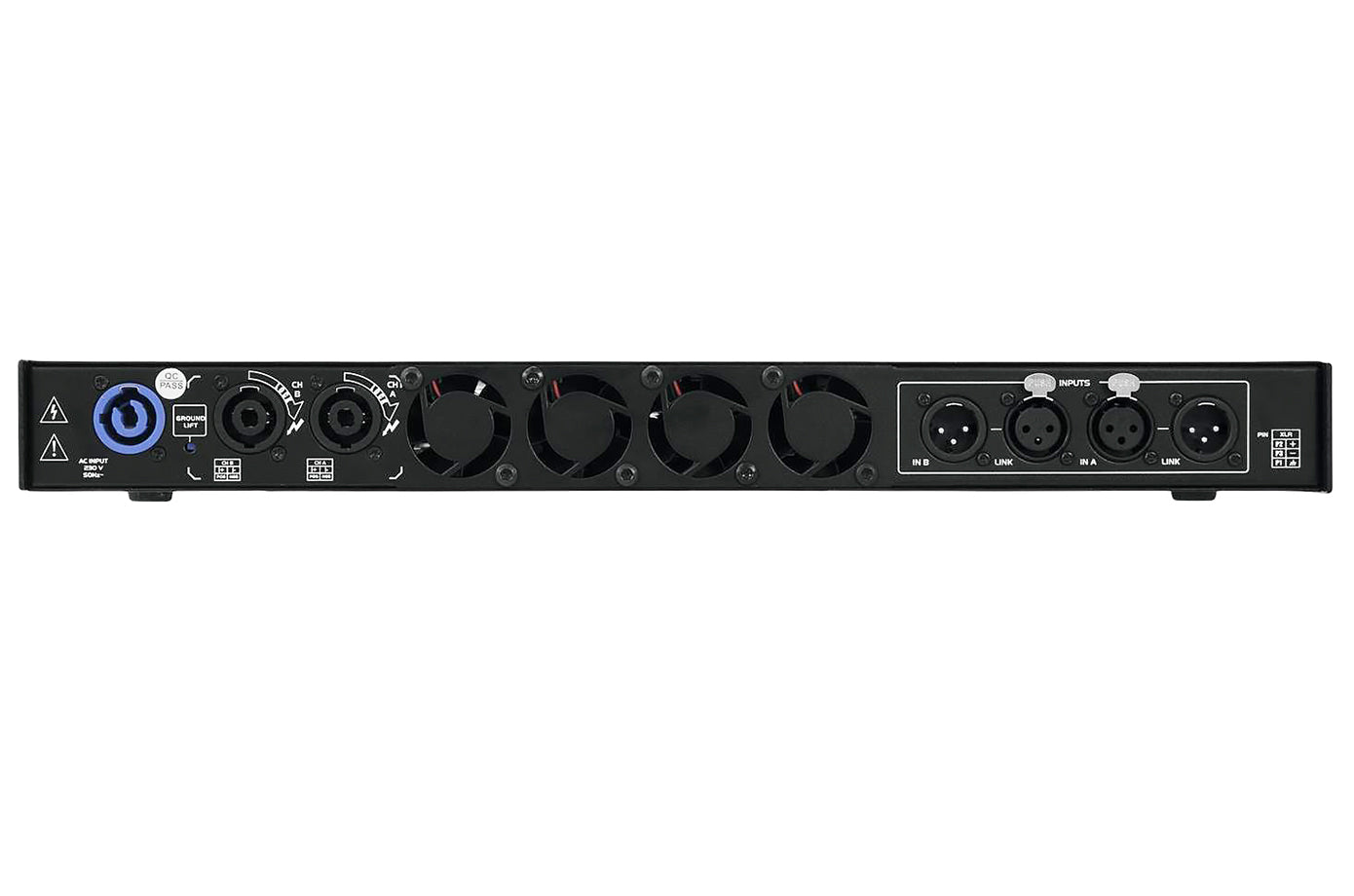

- Electronically balanced inputs via XLR mounting jacks with feed-through output
- Speaker outputs via lockable speaker jacks
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 465 W 1/8 power |
| Output power: | 2 x 880 W RMS (8 ohms) |
| 2 x 1200 W RMS (4 ohms) | |
| Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
| Frequency range: | 30 - 20000 Hz |
| S/N ratio: | >100 dB |
| Circuitry: | Class D |
| Input sensitivity: | ca. 1,25 V |
| Distortion: | <0,02 % |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Width: | 48,3 cm |
| Height: | 4,45 cm |
| Depth: | 35,5 cm |
| Weight: | 6,40 kg |
| Voltage gain: | 36 dB at 8 ohms |
| Input impedance: | 20 kohms (balanced), 10 kohms (unbalanced) |
| Input connectors: | 2 x XLR |
| Output connectors: | 2 x Speaker, 2 x XLR feed-through output |
| Circuitry: | class D |
| Control elements: | power switch, level control per channel, ground lift switch |
| LED indicators: | Protect, limit, signal, power |
| Protection circuits: | Short-circuit, overheat, DC voltage, power on/off transients, softstart |
| Construction: | steel chassis |
Brand: OMNITRONIC
SKU: STE-10451636
