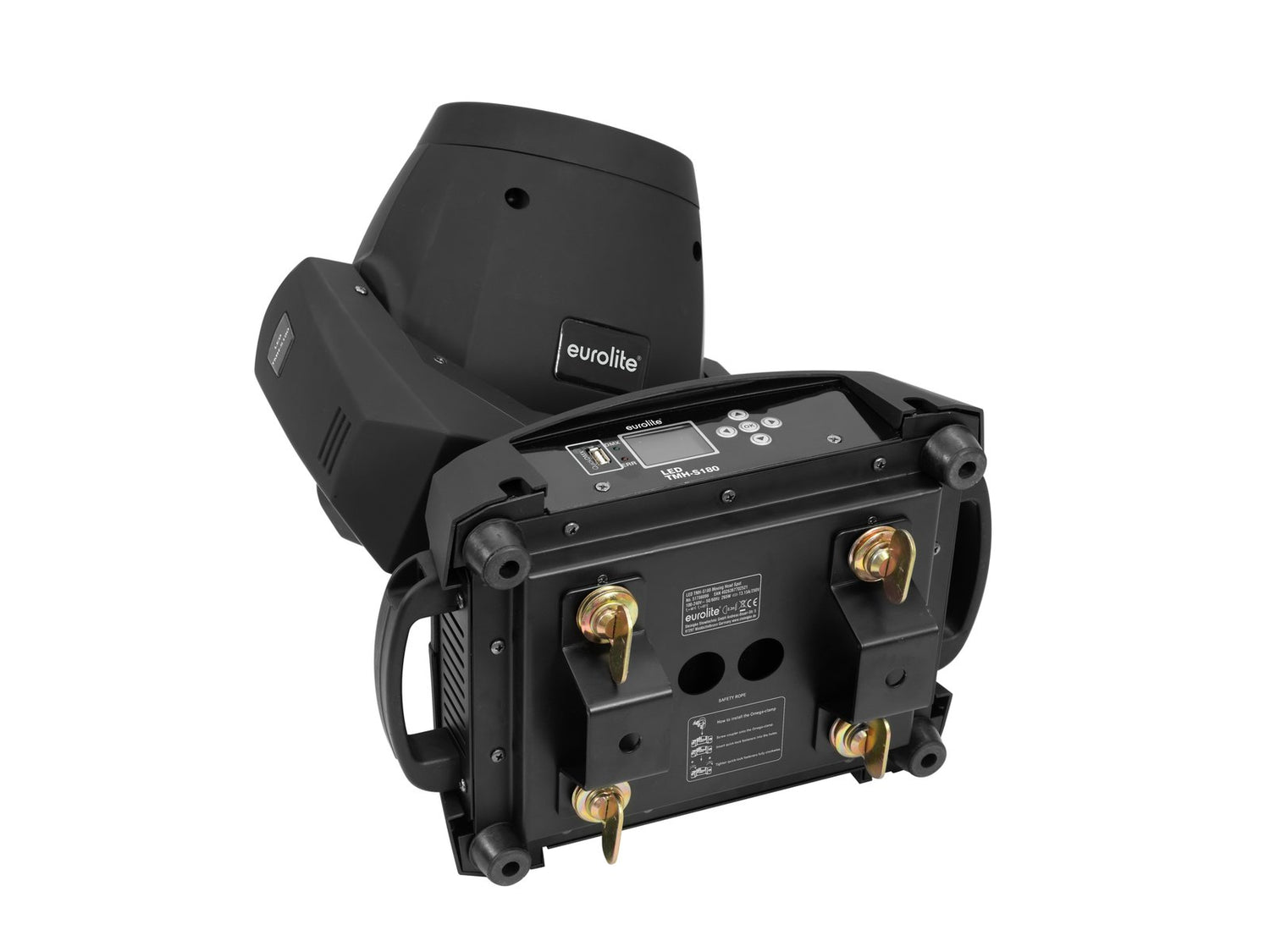

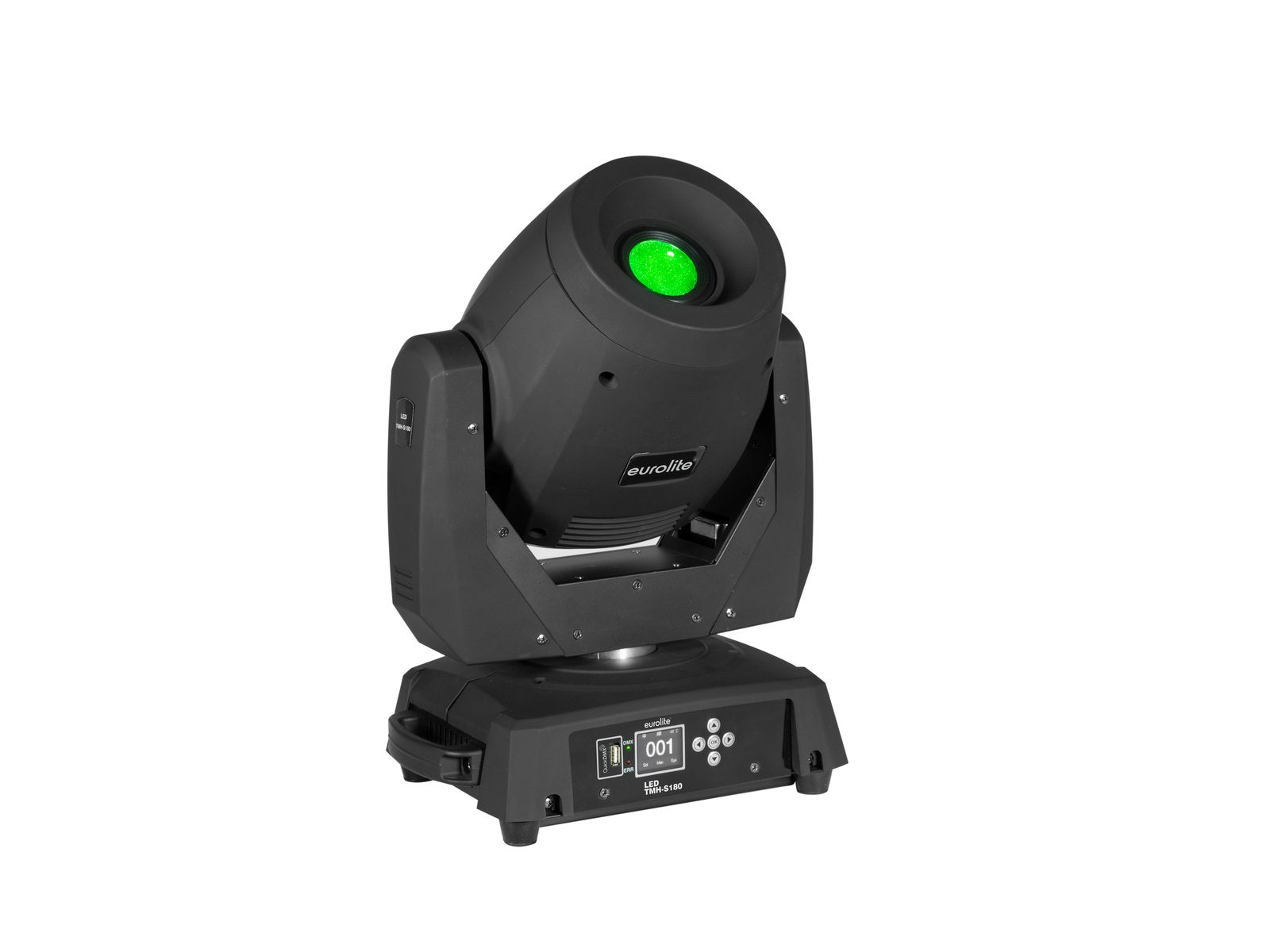

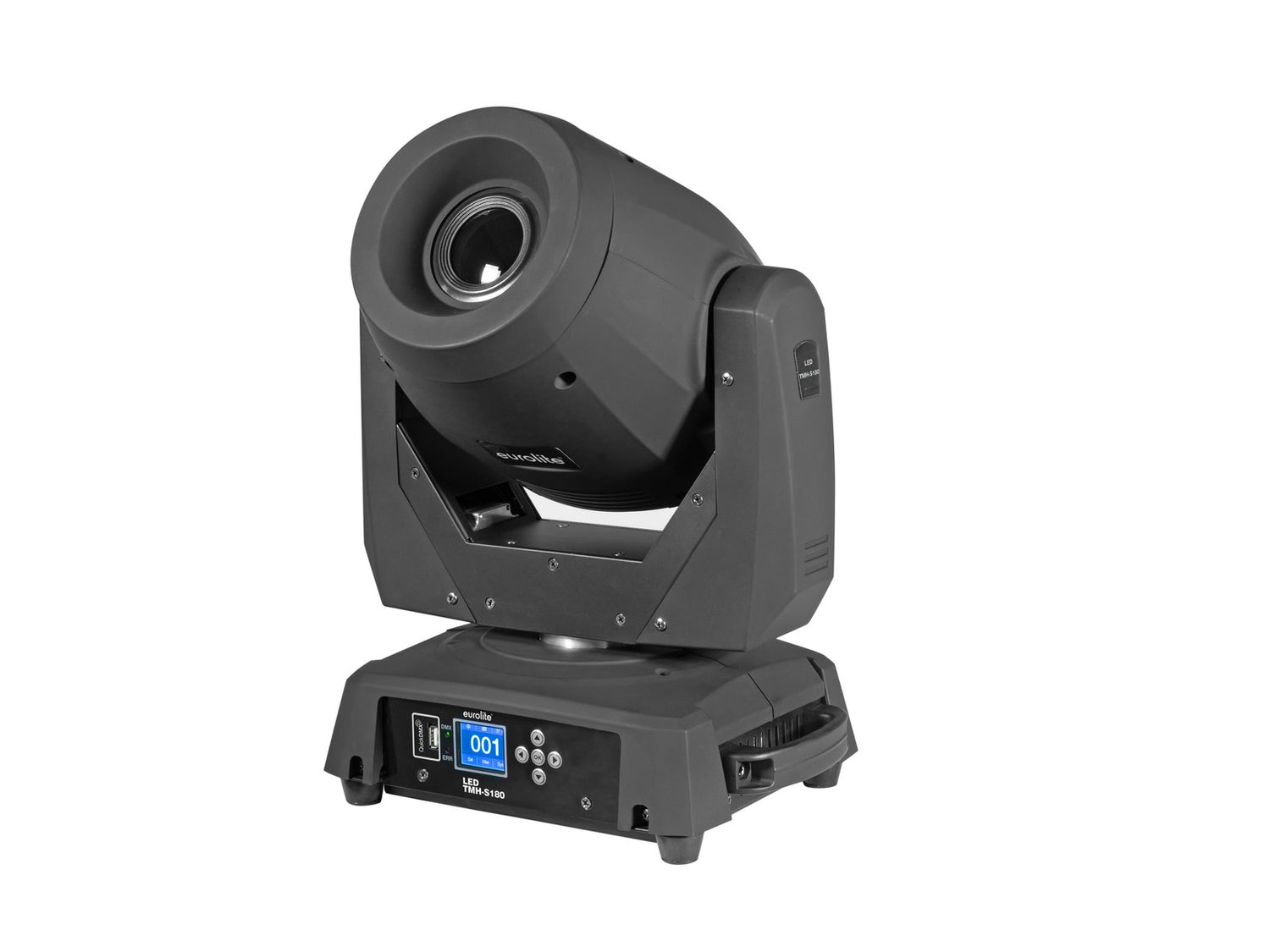

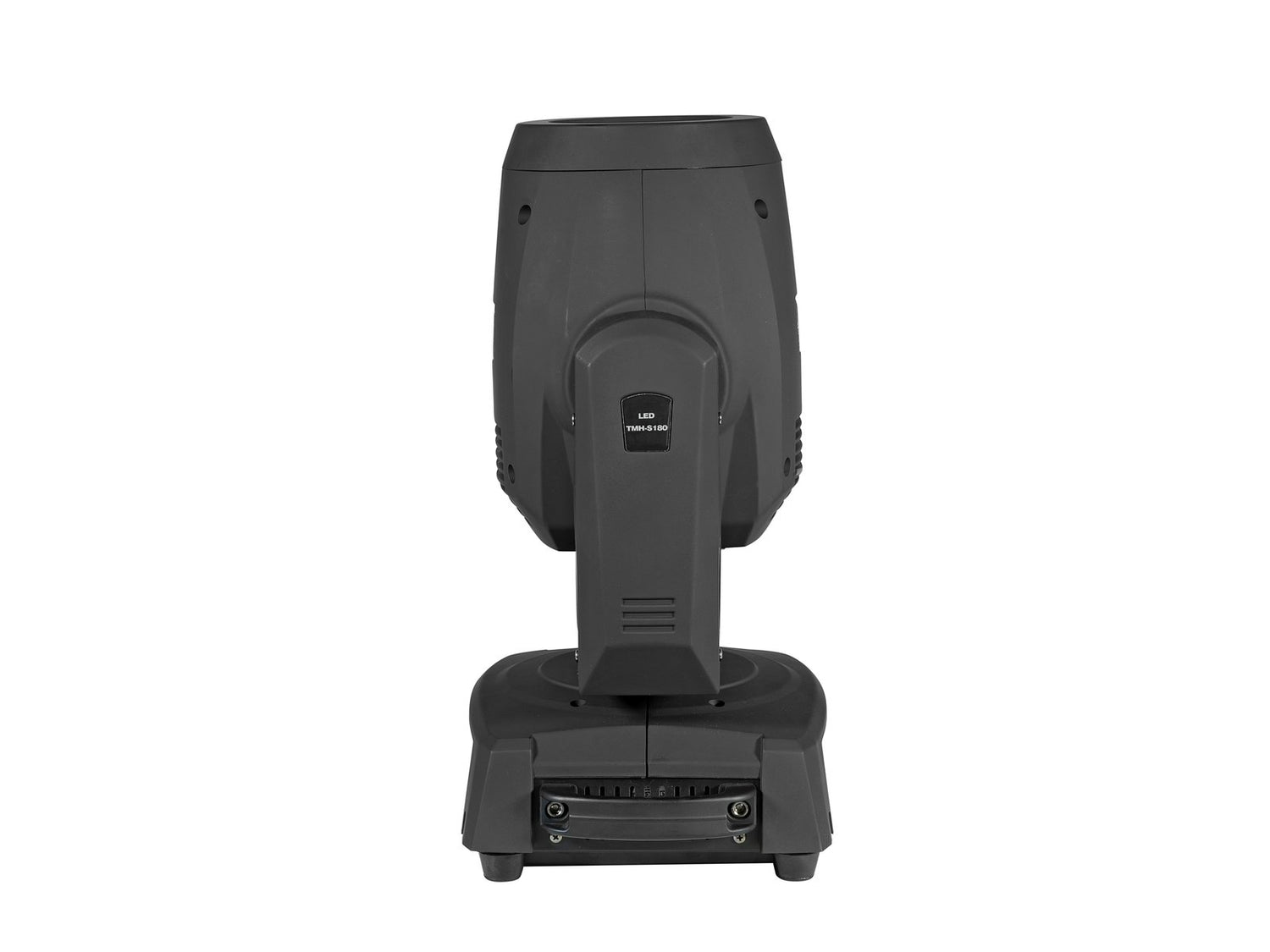

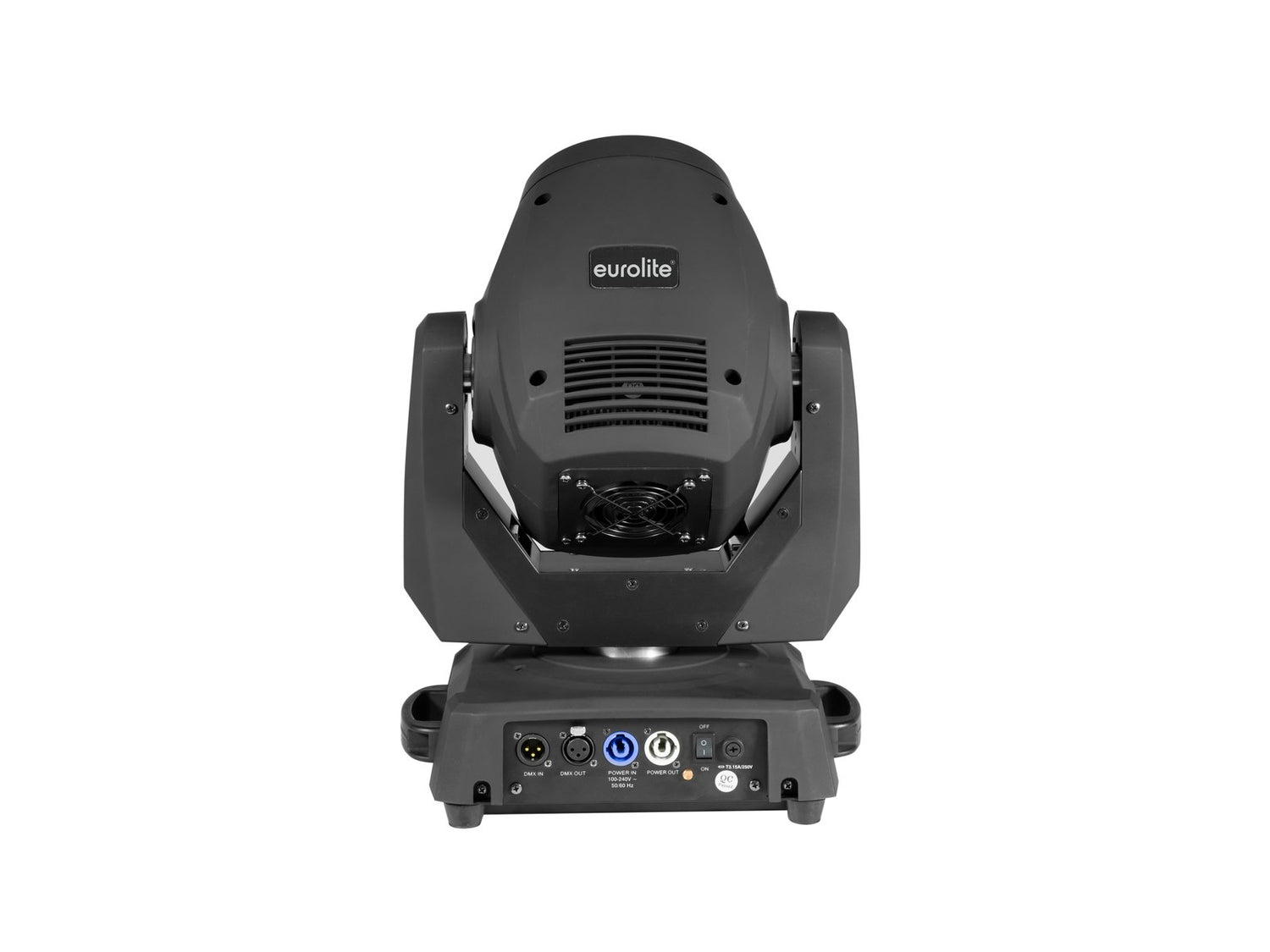

Eurolite LED TMH-S180 Liikkuvat päät Spot

Technical:

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 265 W
• IP classification: IP20
• Protection class: Protection class I
• Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
• Power output: P-Con (gray), mounting version
• Fuse: 5 x 20 mm, T 3,15 A Fuse replaceable
• Lamp type: LED lamp
• LED: 1 x 200 W COB (chip-on-board) cold white (CW)
• Max. TILT movement: 270° Exact positioning (16 bit resolution) Auto position correction (feedback)
• Max. PAN movement: 540° Exact positioning (16 bit resolution) Auto position correction (feedback)
• Flash rate: 0 - 18 Hz
• Equipment: Gobo wheel with rotating gobos; Prism 3-fold rotating; Focus motor-driven
• Color generation: Color wheel with 8 dichroic filters plus open
• Half colors selectable, Rainbow effect with adjustable speedDMX channels: 13; 15
• DMX input: 3-pin XLR (M) mounting version
• DMX output: 3-pin XLR (F) mounting version
• Cooling: Cooling fan
• Control: Stand-alone; DMX; Sound to light via Microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); Master/slave function
• Preprogrammed in: LED PC-Control 512; Light Captain
• Projection: Flicker-free
• Beam angle: 10°
• Beam angle (1/2 peak): 10°
• Illuminance in Lux (lx): Cold white (CW) 3m: 20700 lx, 6m: 5273 lx
• Housing color: Black
• Display type: LCD display
• Noise classification: Class 3 (clearly perceptible sounds)

Gobos:

• Gobo wheel with rotating gobos, 7 gobos and open
• Outside diameter 23,5mm
• Image diameter 15mm
• Shake effect
• Gobos changeable
• Slot-in gobo system for easy gobo replacement

Dimensions:

• Width: 32,5 cm
• Depth: 27,0 cm
• Height: 45,5 cm
• Weight: 11,35 kg

Legal specifications

• Special product: Not designed for household room illumination
• Intended use: Show effect lighting

Downloads

• Eurolite LED TMH-S180 Moving Head Spot manual
