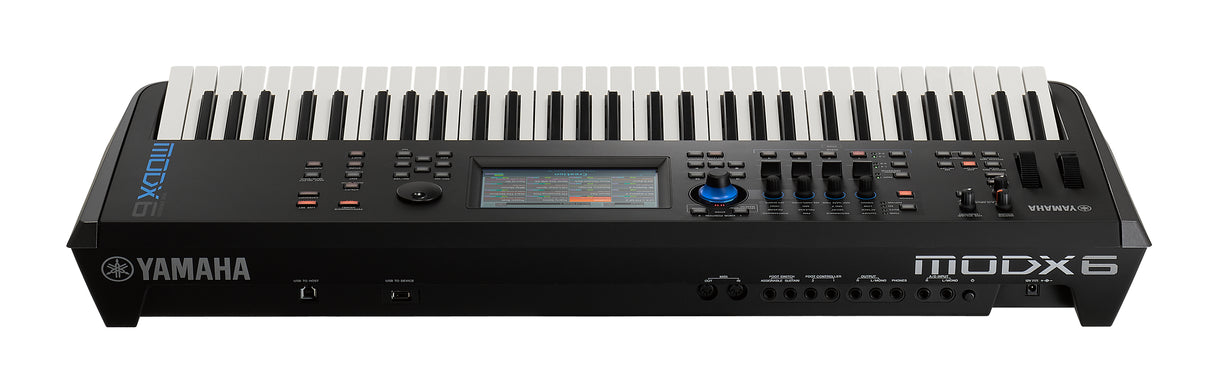

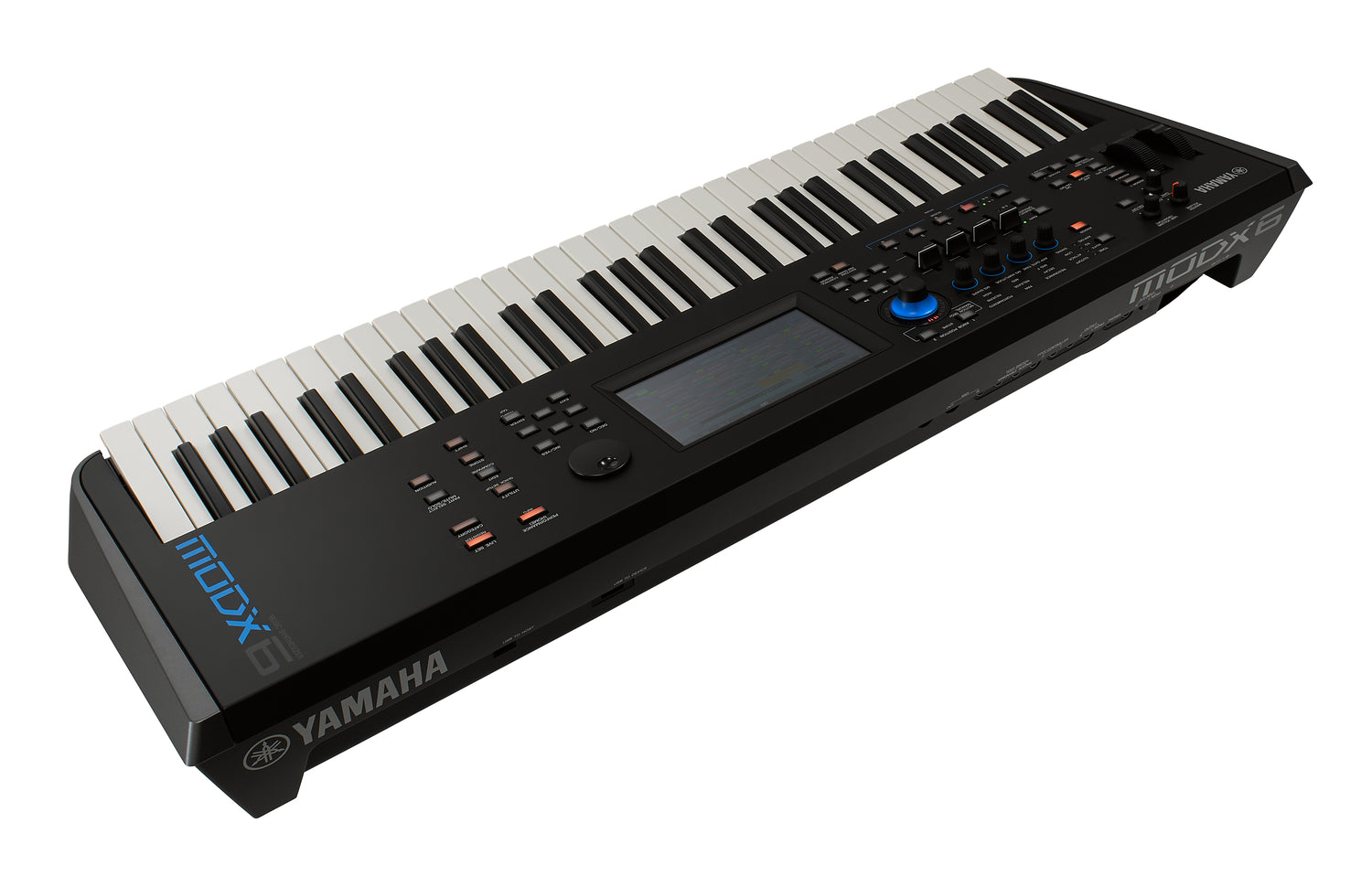

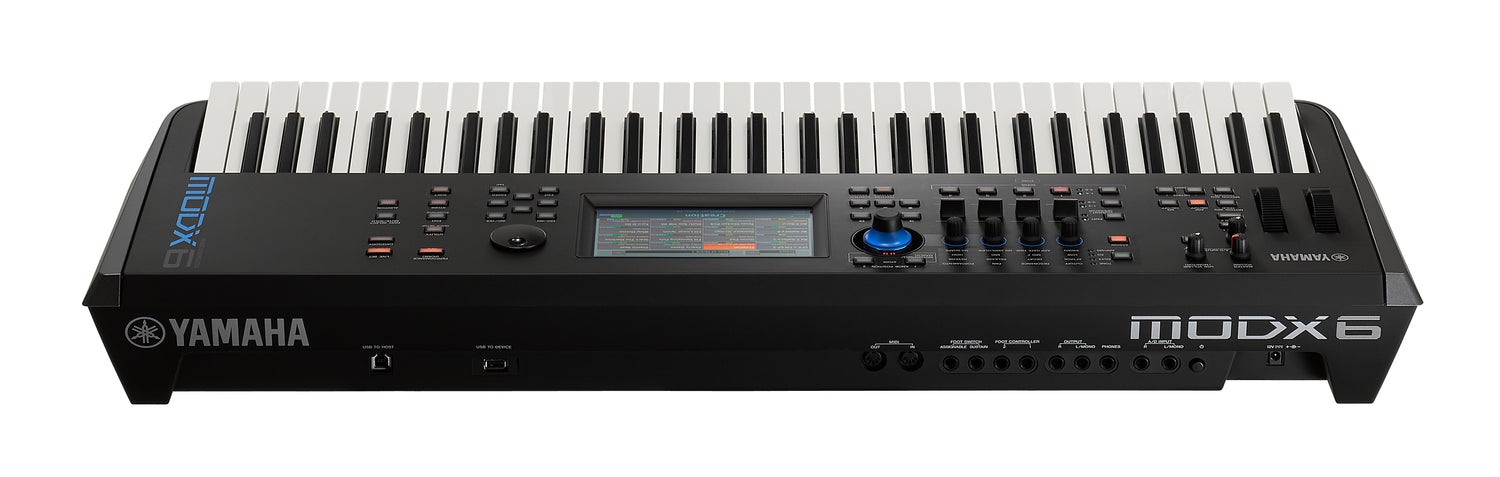

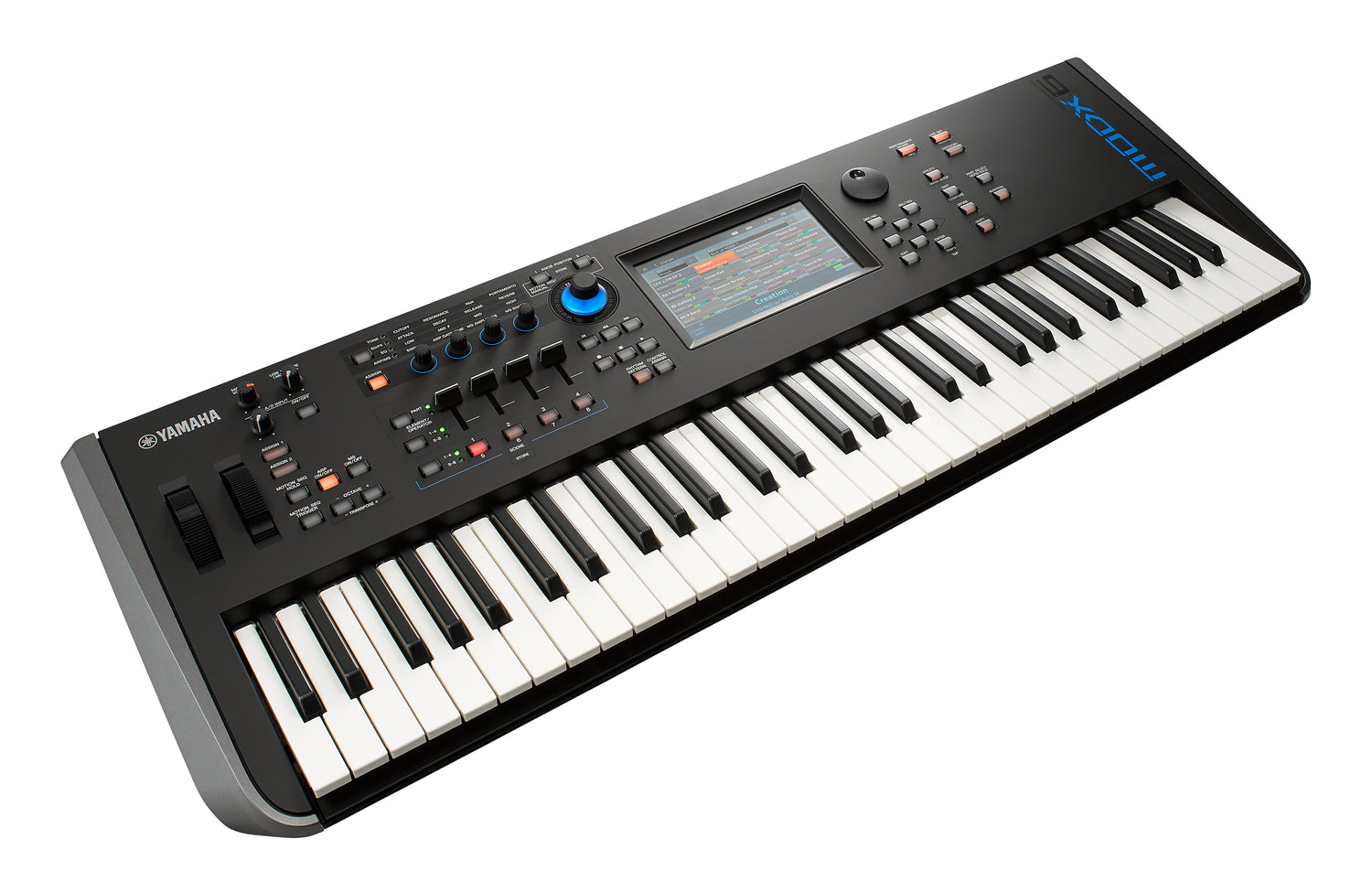

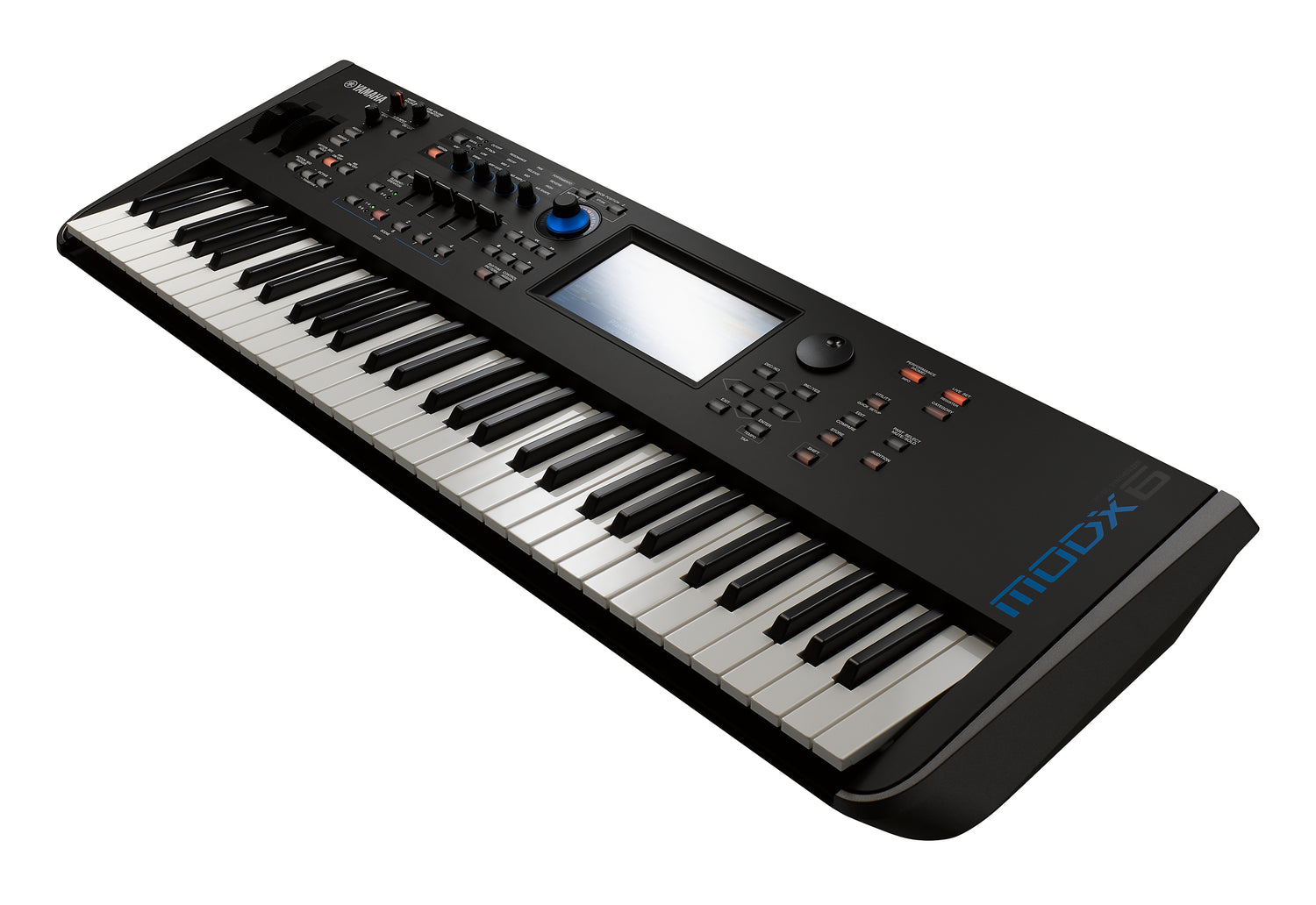

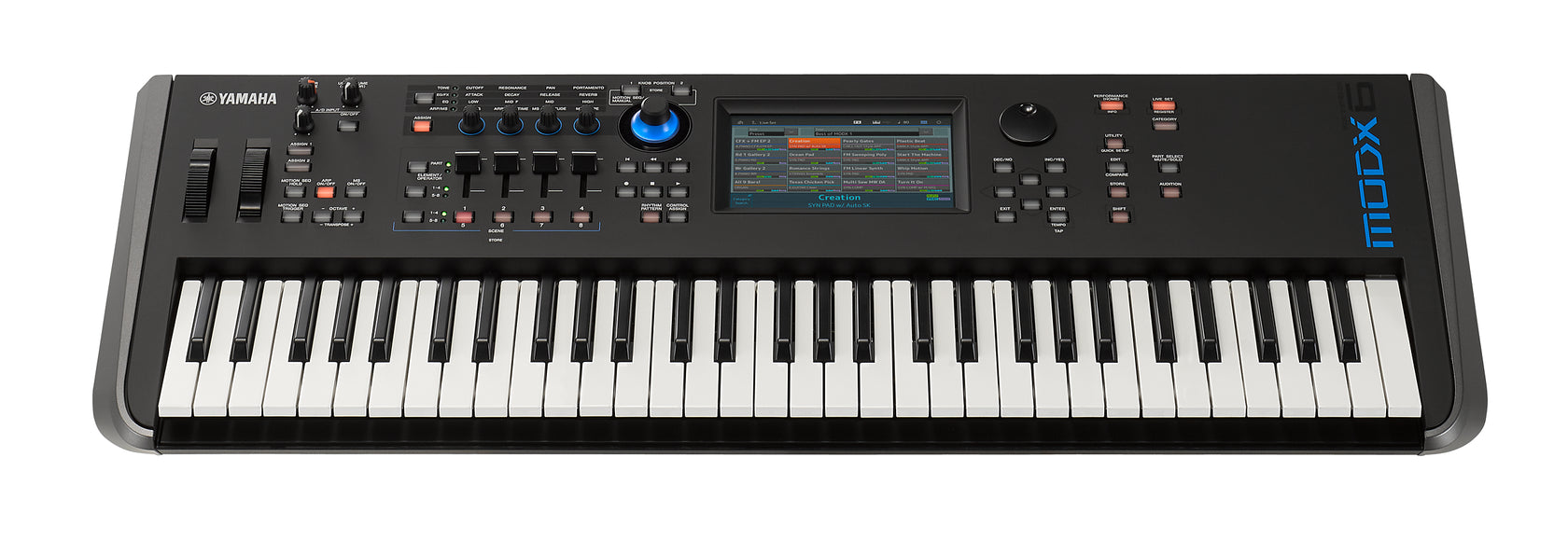

Yamaha MODX6 Syntetisaattori

Dimensions:

Width 937mm, Height 134mm, Depth 331mm

Weight: 6.6 kg

Number of Keys 61

Semi vægtede tangenter

Tone Generator:

Motion Control Synthesis Engine AMW2: 8 Elements FM-X: 8 Operators, 88 Algorithms

Multi Timbral Capacity

16 Parts (internal), Audio Input Parts (A/D*, USB*) *stereo Part

Wave

Preset: 5.67 GB (when converted to 16 bit linear format), User: 1.00 GB

Performance Approx. 2,000

Filter 18 types

Maximum Polyphony AWM2: 128 (max.; stereo/mono waveforms) FM-X: 64 (max.)

Effects

Reverb x 12 types, Variation x 76 types, Insertion (A, B) x 76 types*, Master Effect x 15 types *A/D part insertion x 71 types (Preset settings for parameters of each effect type are provided as templates) Master EQ (5 bands), 1st part EQ (3 bands), 2nd part EQ (2 bands)

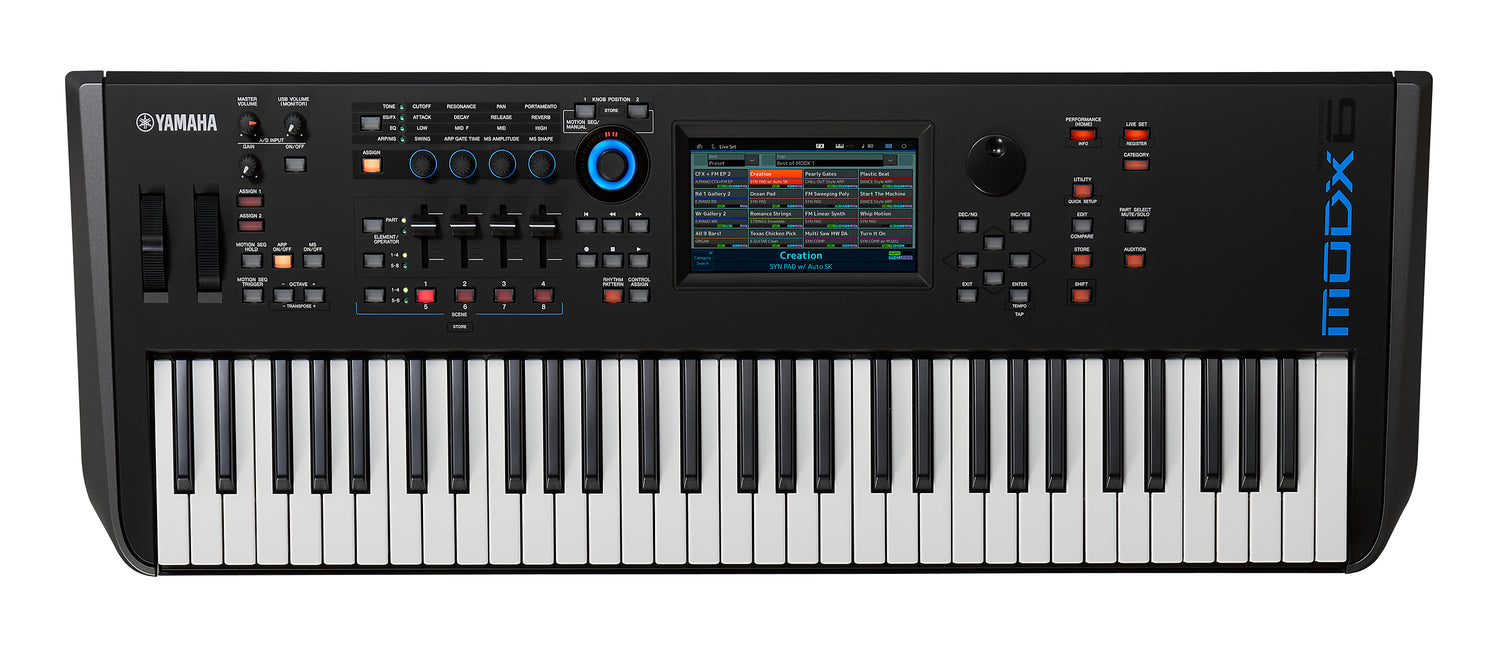

Controllers

Master Volume, AD Input Gain knob, USB Volume, Pitch Bend wheel, Modulation wheel, Control Sliders x 4, Knobs x 4, Super Knob, Data dial

Display

7" TFT Color Wide VGA LCD touch screen

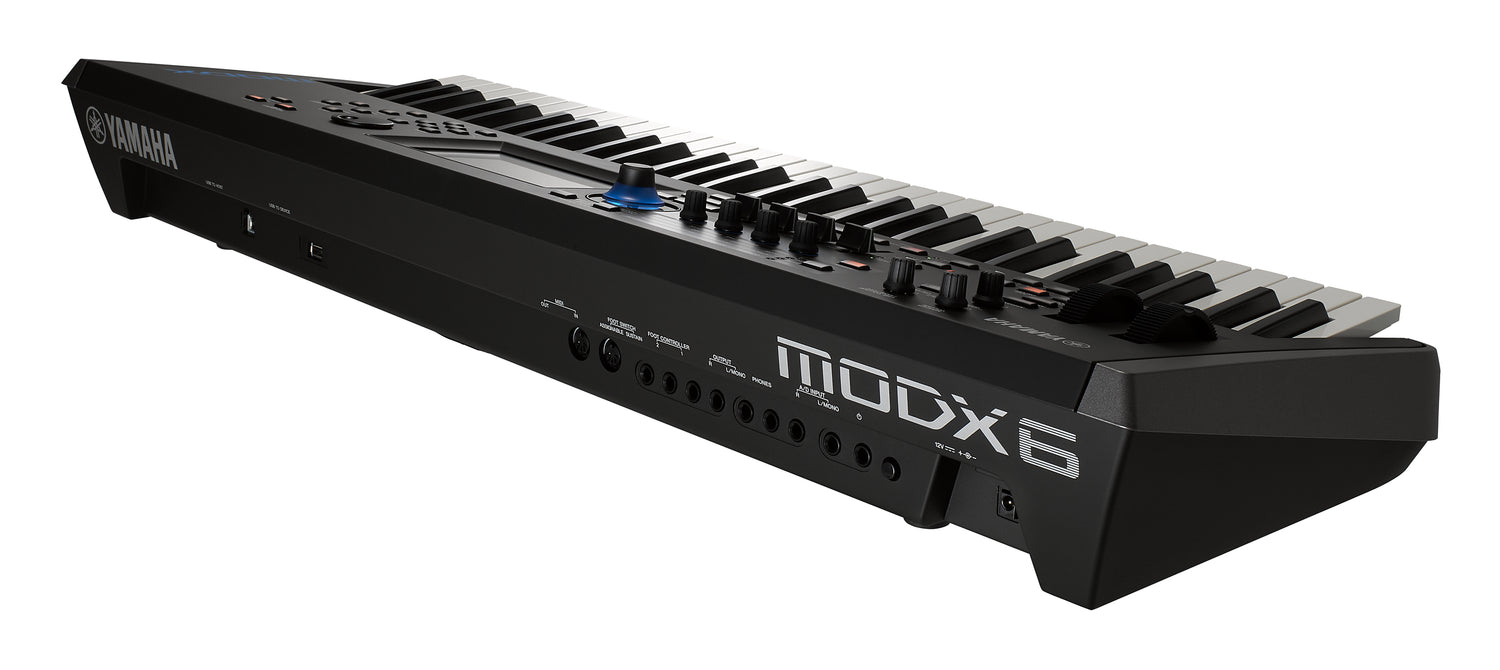

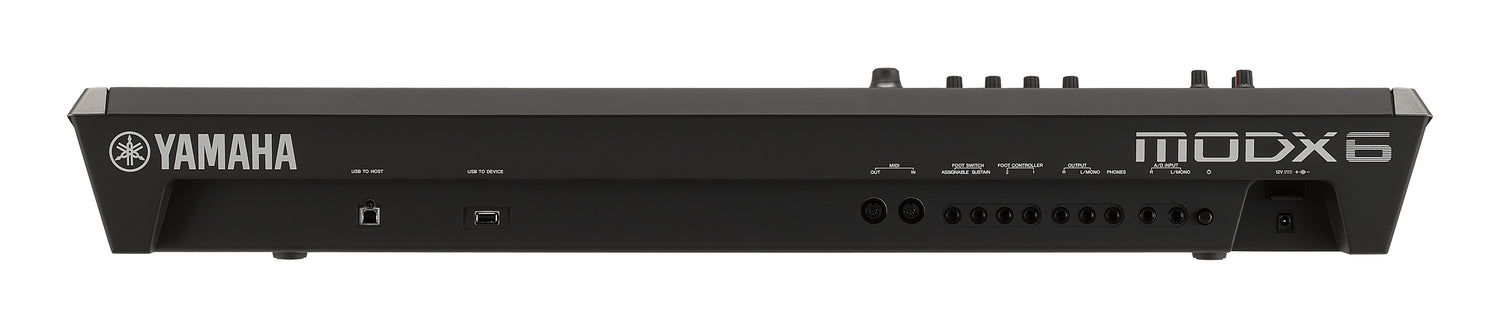

Connectors

[USB TO DEVICE], [USB TO HOST], MIDI [IN]/[OUT], FOOT CONTROLLER [1]/[2], FOOT SWITCH [ASSIGNABLE]/[SUSTAIN], OUTPUT [L/MONO]/[R] (6.3 mm, standard phone jacks), [PHONES] (6.3 mm, standard stereo phone jack), A/D INPUT [L/MONO]/[R] (6.3 mm, standard phone jacks)

Power Consumption

16 W (when using PA-150B AC adaptor)

Accessories

AC adaptor (PA-150B or an equivalent recommended by Yamaha*), Owner’s Manual (this book), Cubase AI Download Information *May not be included depending on your area. Check with your Yamaha dealer.

Live Sets

Preset: 256 and more, User: 2,048

Performance Recorder

16 Sequence tracks, Tempo track, Scene track

Recording type: Real time replace, Real time overdub, Real time punch in/out

Note Capacity: Approx. 130,000 notes

Note Resolution

480 ppq (parts per quarter note)

Tempo (BPM): 5 – 300

128 songs

Arpeggio

Parts: 8 Parts simultaneous (max.), Preset: 10,239 types User: 256 types

Sequence formats

MODX original format, SMF formats 0, 1
