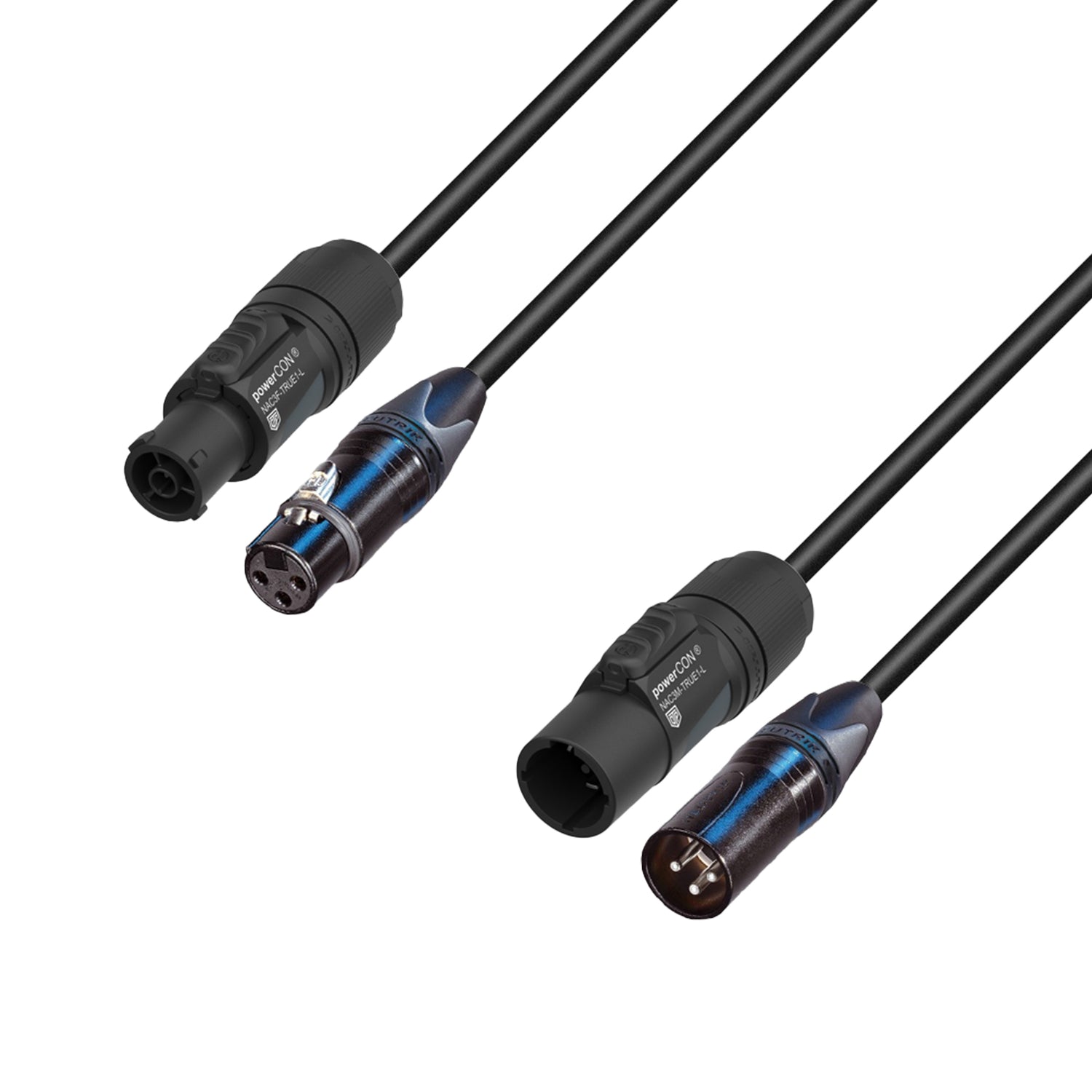

Adam Hall Cables 5 STAR H TCON D 0300 - Hybridkabel | Strøm & DMX | Neutrik® XLR 3-polet x TRUE1® | 3 m
Sis. alv. • B2B ilman alv
Kuvaus
Kuvaus
Opgrader dit lyssetup med vores topmoderne Hybrid DMX & Power-kabel fra vores 5 STAR SERIES. Dette alsidige kabel er designet til professionelle lysdesignere og gør det muligt at overføre DMX-signaler og strøm samtidigt, hvilket strømliner dit rig og sikrer en gnidningsfri afvikling.
Effektive og rodfri opsætninger kræver dette smarte kabel, som er perfekt til at forbinde to Cameo OTOS® S5 f.eks. Udstyret med originale Neutrik® premium-stik, der er kendt for deres holdbarhed og overlegne værdier for signaloverførsel, hvilket minimerer signaltab og spændingsfald.
Uanset om du sætter op til en koncert, en teaterproduktion eller et event, der kræver avanceret lysstyring, er vores Hybrid DMX- og strømoverførselskabel den ultimative løsning til effektivitet og pålidelighed. Stol på dets europæiske håndværk og kvalitet, så dit show kører problemfrit.
Tekniset tiedot
Tekniset tiedot
- This Hybrid Cable from our 5 STAR SERIES is manufactured in the EU
- For this cable we only use original Neutrik® connectors. For a long-life plugging-cycle and superior transmission quality we use 3-pole XLR for the DMX line and the power line will be provided by the Neutrik TRUE1® connectors
- The TRUE1 connectors are IP rated and pluggable under load. Furthermore, they are compliant to the highest standards
- The line with 0.34 mm² DMX & 2.5 mm² power inner-conductor cross-section is engineered by our Adam Hall Cables® crew in Germany and is made in the EU
- It comes with a PVC jacket made of a special soft-PVC compound for the highest flexibility values
- The product comes with a cable tie and two transparent, loose heat-shrinks for labeling
General
| Cable length | 3 m |
| Split end length | 40 cm |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 17 mm |
| Cable colour | Black |
Plugs
| Connector type plug 1 | XLR 3-pole female |
| Model name plug 1 | Neutrik NC3FXX-BAG |
| Contact material plug 1 | Silver plated |
| Connector type plug 2 | XLR 3-pole male |
| Model name plug 2 | Neutrik NC3MXX-BAG |
| Contact material plug 2 | Silver plated |
Line
| Conductor material | OFC (Oxygen-free copper) |
| Conductor cross-section | 2 x 0,34 mm² |
| AWG | 22 |
| Capacity/m | 55 pF |
| Conductor impedance/km | 85 Ohm |
| Shielding | Spiral copper shielding |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 5 mm |
Mains plug
| Plug type connector 1 | Mains plug device outdoor female & TRUE1® |
| Model name connector 1 | Neutrik NAC3F-TRUE1 |
| Plug type connector 2 | Mains plug device outdoor male & TRUE1® |
| Model name connector 2 | Neutrik NAC3M-TRUE1 |
Mains line
| Conductor material | OFC (Oxygen-free copper) |
| Conductor cross-section | 3 x 2,5 mm² |
| AWG | 13 |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 10 mm |
Environmental
| Ambient temperature | -20 - 70 °C |
Dimensions & weight
| Weight | 830 g |
