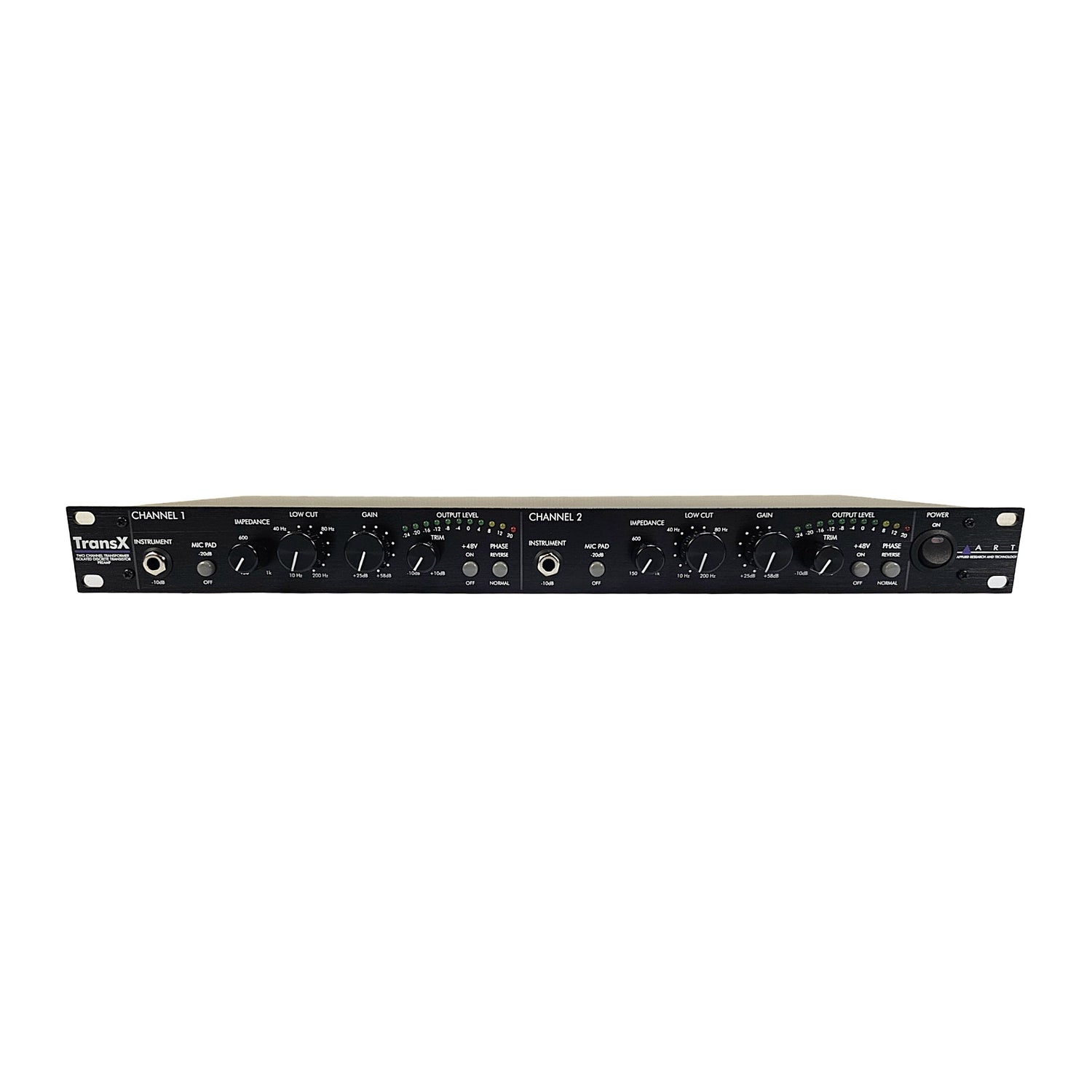

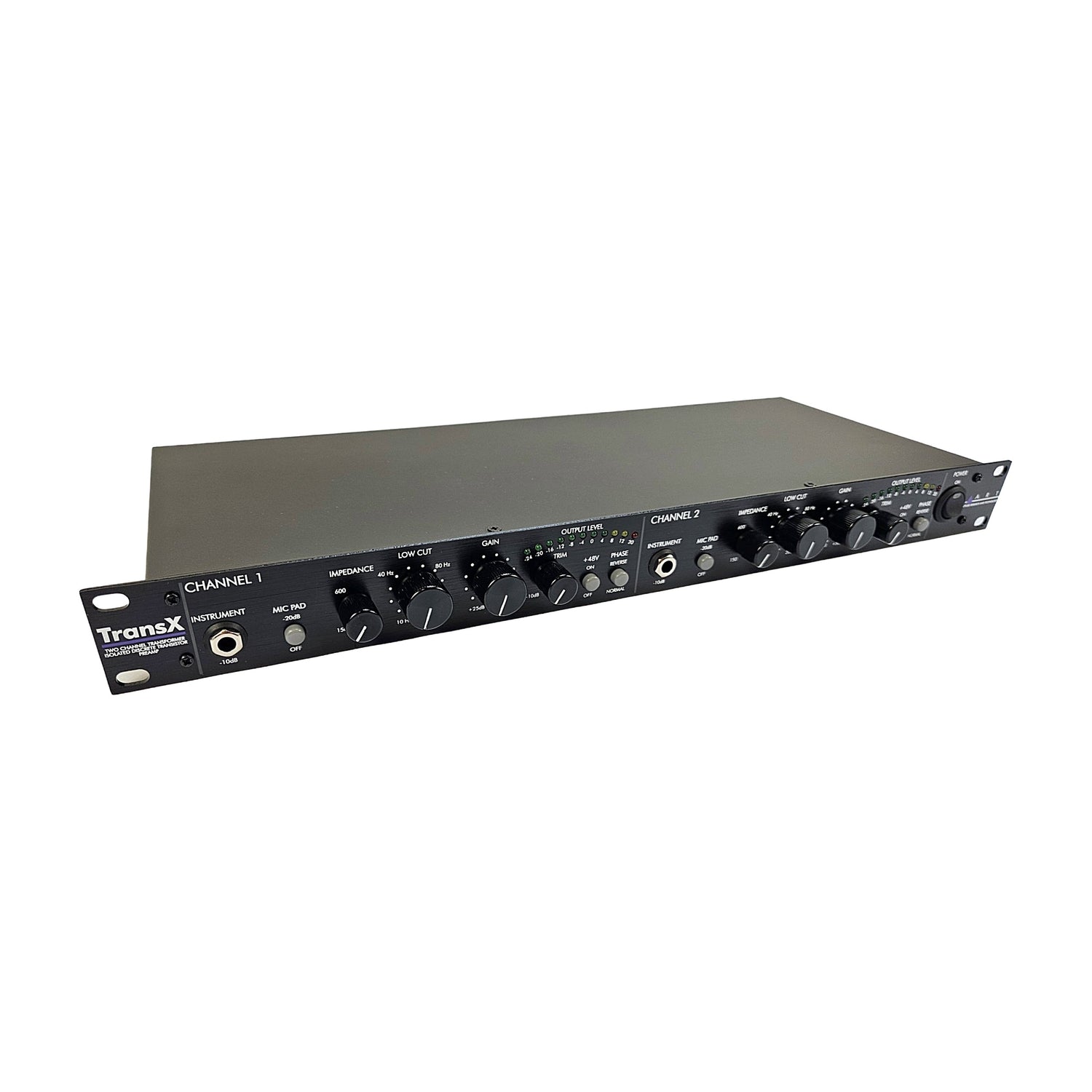

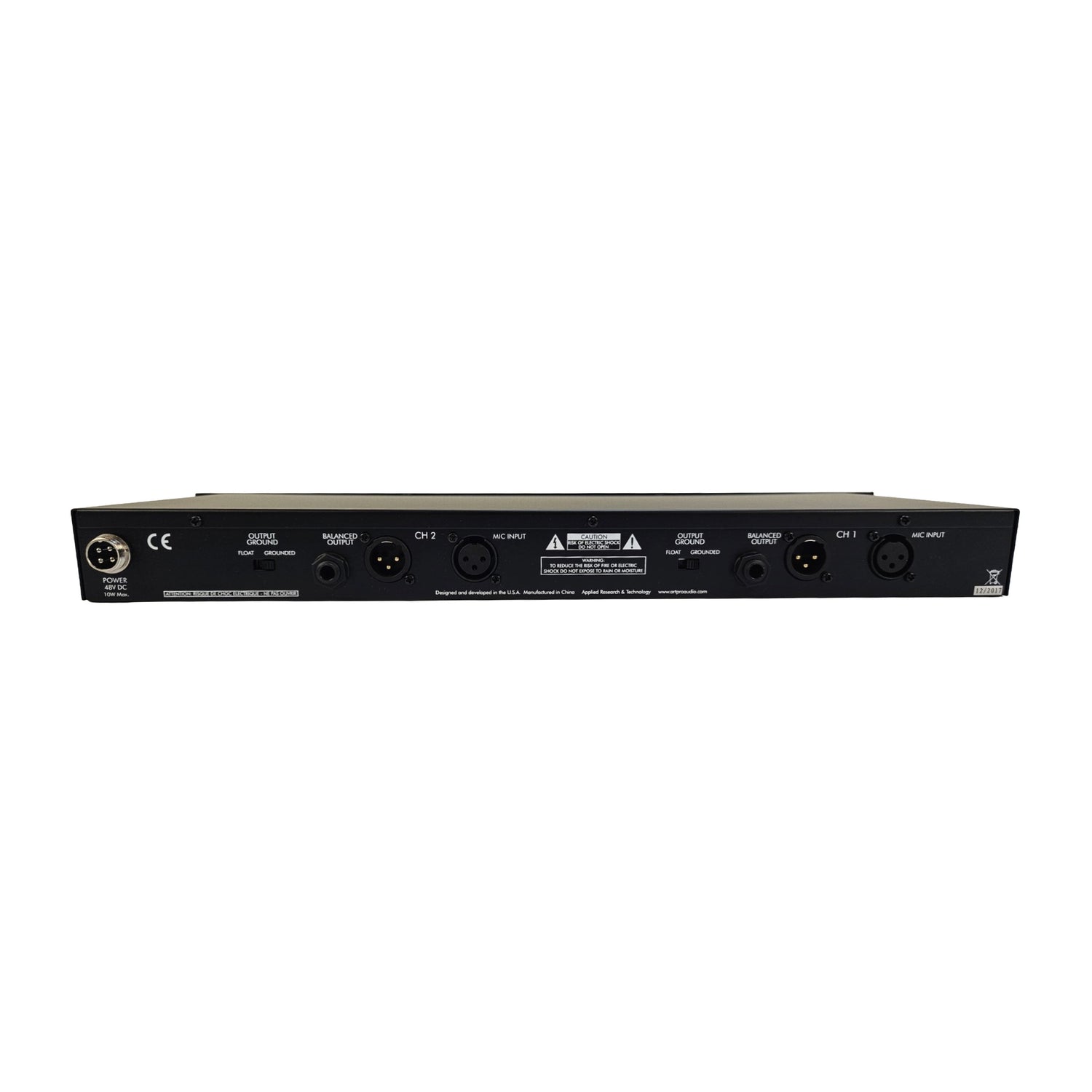

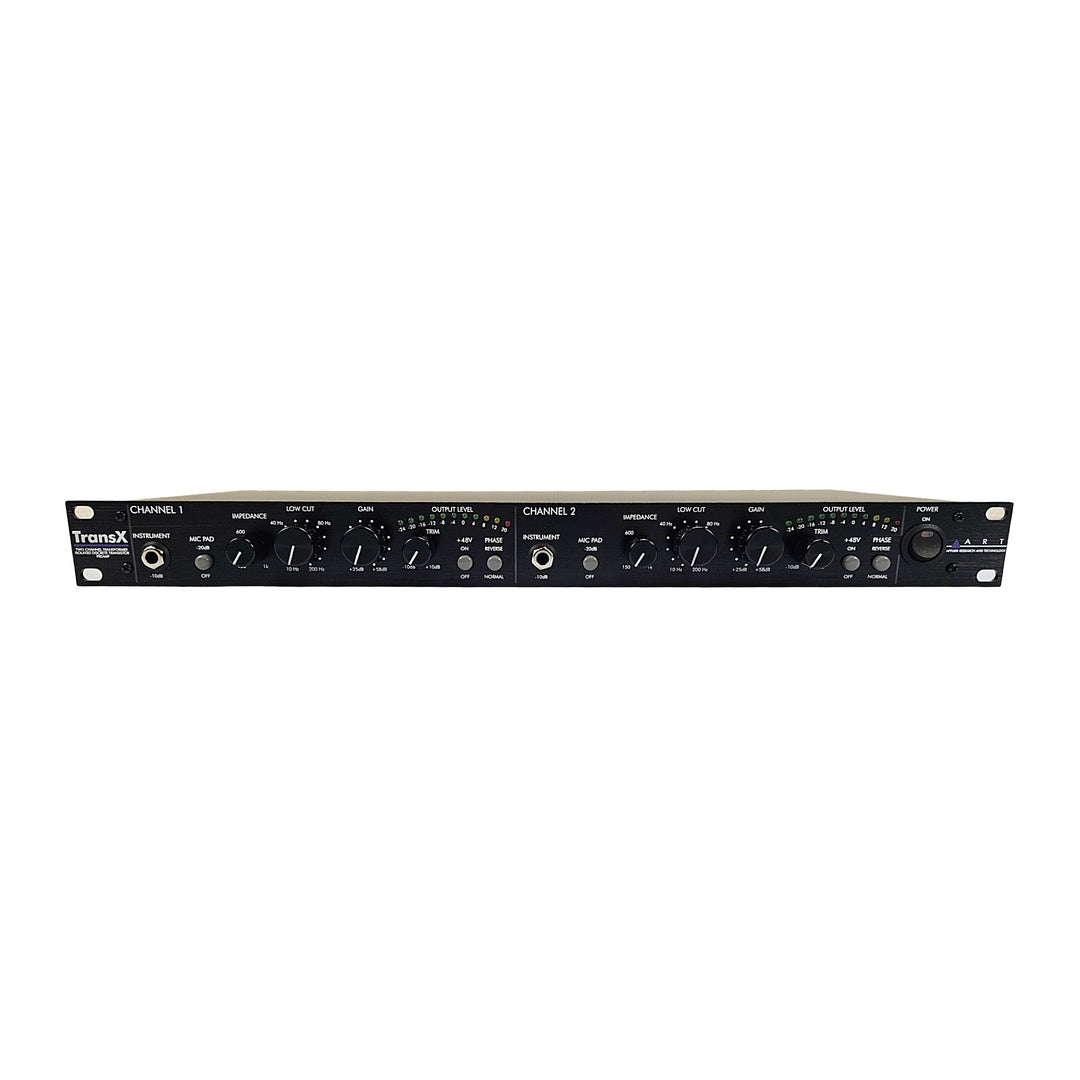

ART TransX 2 kanals rør forforstærker / PreAmp

ART TransX 2 kanals rør PreAmp

TransX-to-kanals mikrofonforforstærkeren har en ny lav støj diskret transformer koblet højtydende forforstærkningskredsløb. På grundlag af kvaliteten og succesen med gode lydprodukter som Pro MPA II og Pro VLA II, satsede ART-ingeniører på at udvikle den næste generation af professionelle mikrofonforforstærkere til at komplimentere vores rørbaserede forforstærkere. TransX sætter en ny standard for kvalitet og værdi. Professionelle funktioner og spektakulære tone er det, der gør TransX til en forforstærker af mikrofoner i verdensklasse.

Input Transformer blocks R.F. and other noise
Custom Output Transformer reduces ground noise and maintains level for Balance/Unbalanced connections
Low noise, low THD discrete audio path
High impedance direct coupled low noise Instrument input
Variable input impedance on the XLR input
Rotary switches allow for reliable, repeatable results
Gain trim function for precise adjustment of gain
20dB pad allows high level XLR input signals
Wide range peak sensitive LED meter
Phase reverse switch
Auto muting on outputs
Ground lift function on each channel's outputs
Universal External supply reduces noise and lowers power consumption
Rugged, reliable steel chassis shields the preamp from external noise

Frequency Response 10-50kHz + 1dB
Total Harmonic Distortion CMRR 90dB @60Hz
Equivalent Input Noise Mic (@max gain) -128dBu "C"; wtd.
Inst. (@ max gain) -125dBu "C" wtd.
Input Impedance Mic 150 to 1k Ohm variable
Instrument 1M Ohm
Maximum Gain Mic in to output (bal.) +68dB
Inst. IN to Main output (bal.) +59dB
Maximum Input Level XLR +24dBu
Instrument +15dBu
Maximum Output Level +24dBu
Output Impedance 100 Ohms
Low Cut Filter Slope 6dB/Oct.
Range 10Hz to 200 Hz
Step size 1/3 Oct.
Phantom Power Switch selectable, +48V DC, filtered, current limited
Chassis Type Chassis Steel, Painted finish
Power Supply Input requirements USA - 85 to 250 VAC/ 50-60 Hz
Export units configured for country of destination.
Output requirements 48 V dc, 10 Watts Max
Dimensions 1.75"H x 19"W x 9.5"D (44m x 483mm x 241mm)
Weight 13.2 lbs. (6.0 kg)
Notes With the locking power supply plug connected, the depth increases to 11.6" (295mm) total

0 dBu = 0.775 VRMS

ART maintains a policy of constant product improvement. ART reserves the right to make changes in design, or make additions to, or improvements upon, this product without any obligation to install same on products previously manufactured. Therefore, specifications are subject to change without notice.
