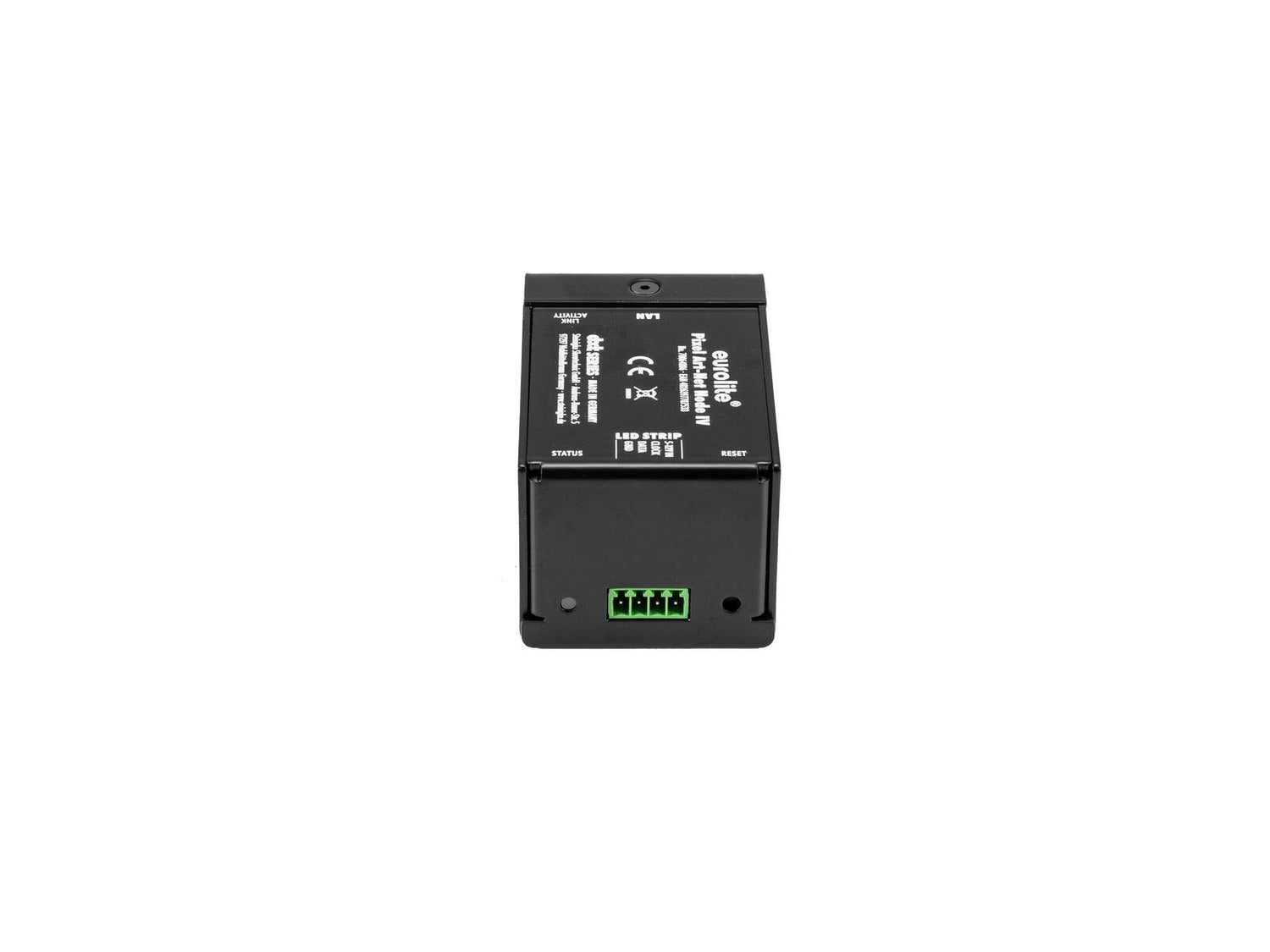

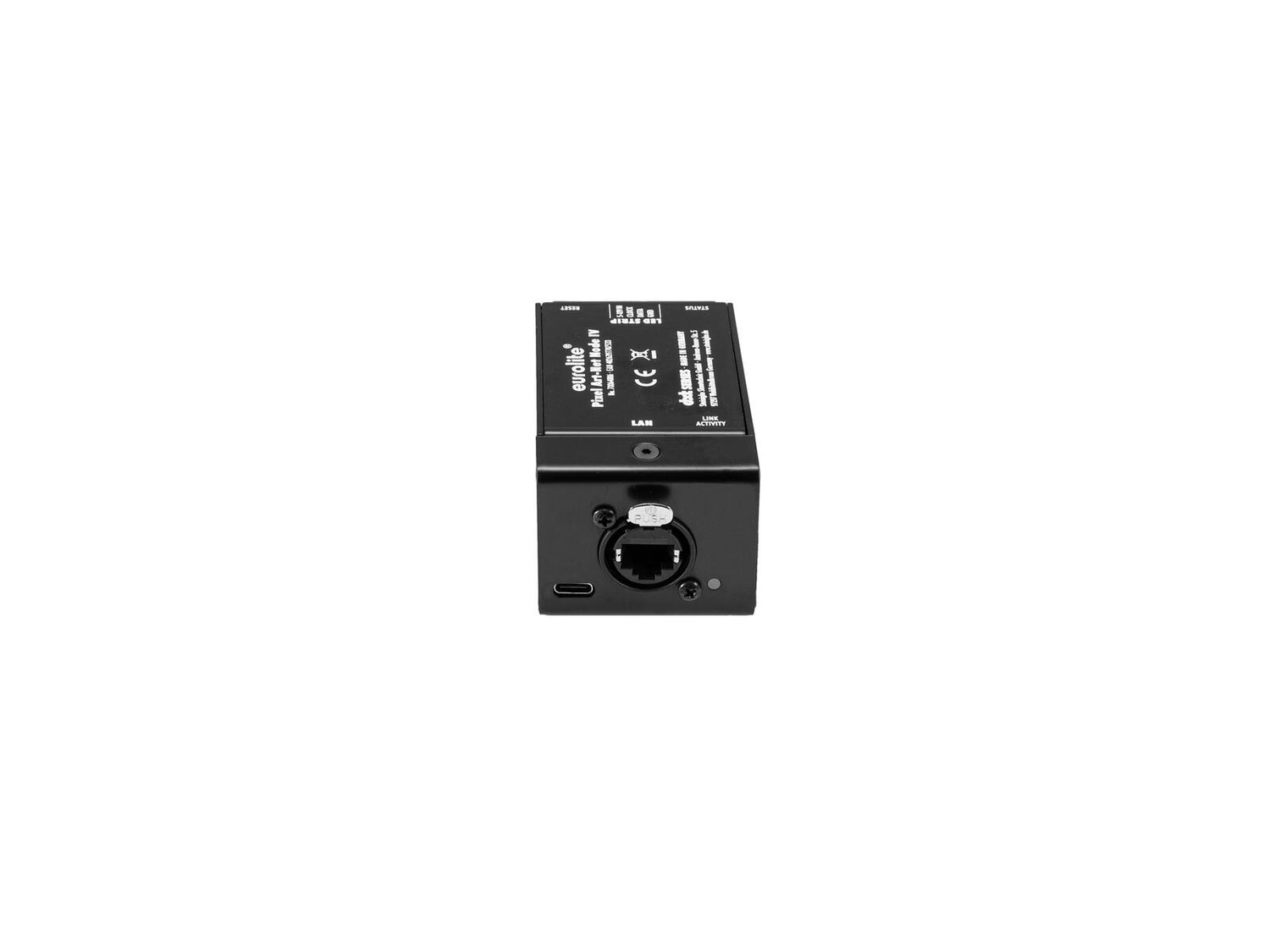

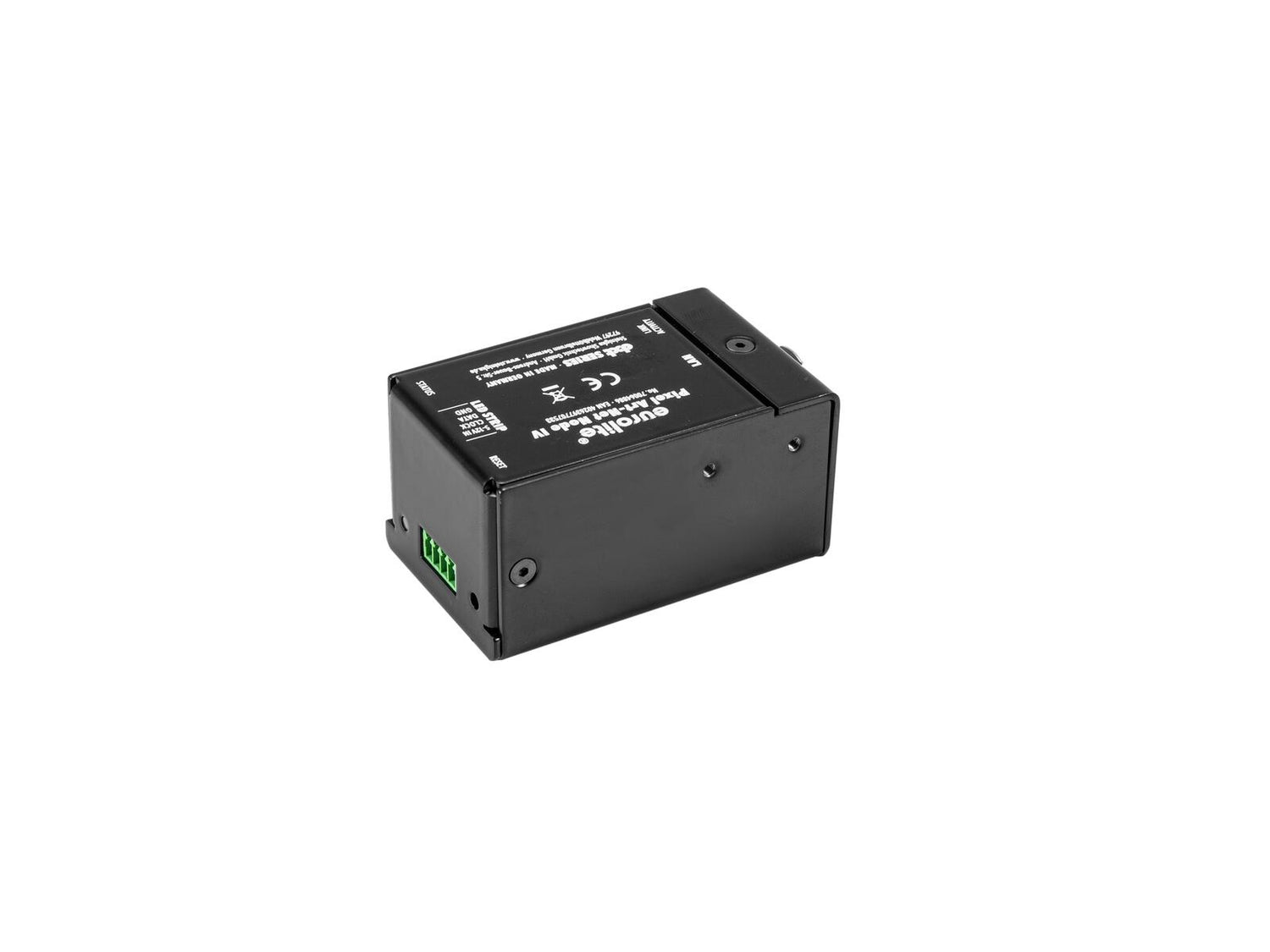

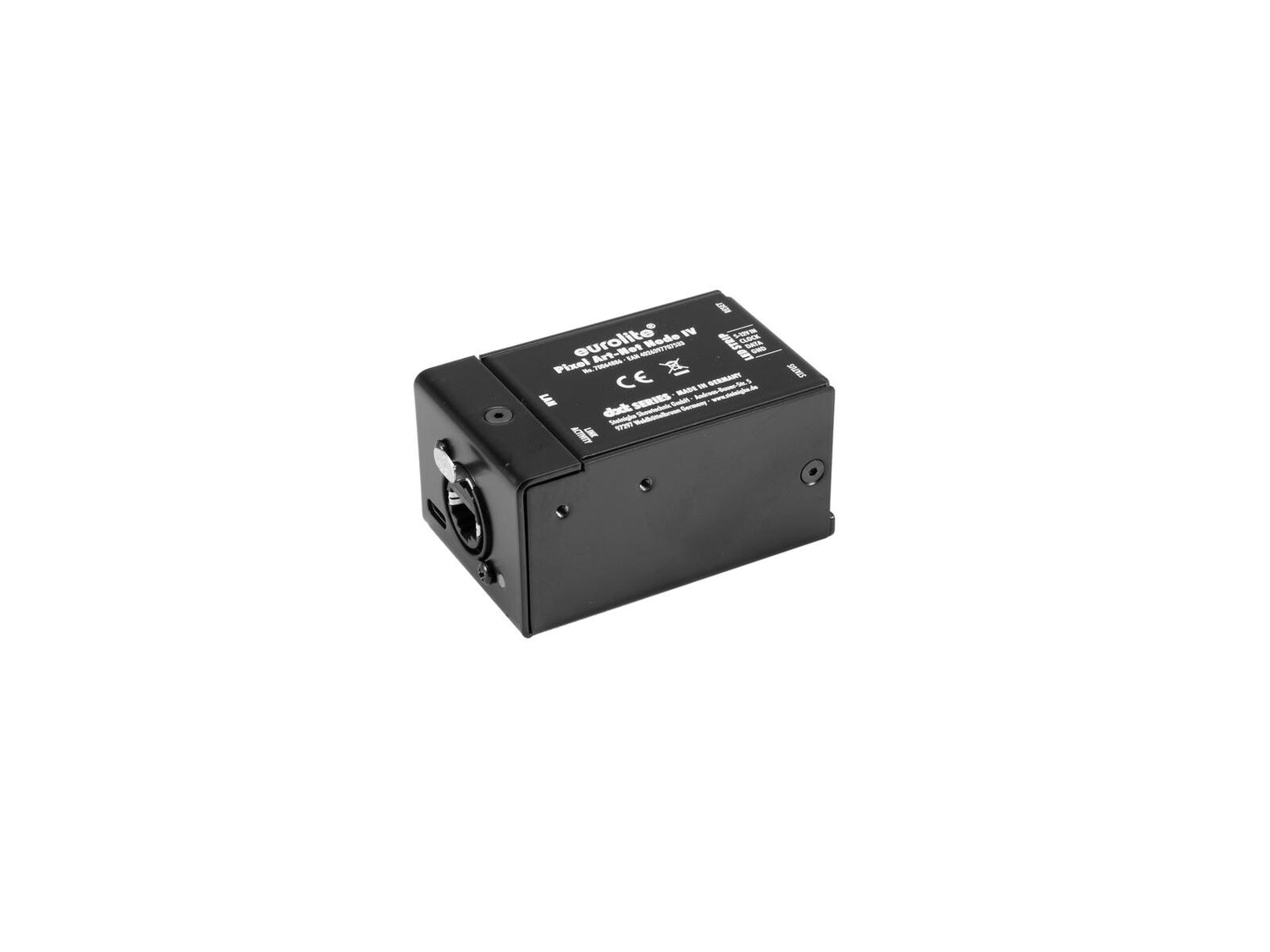

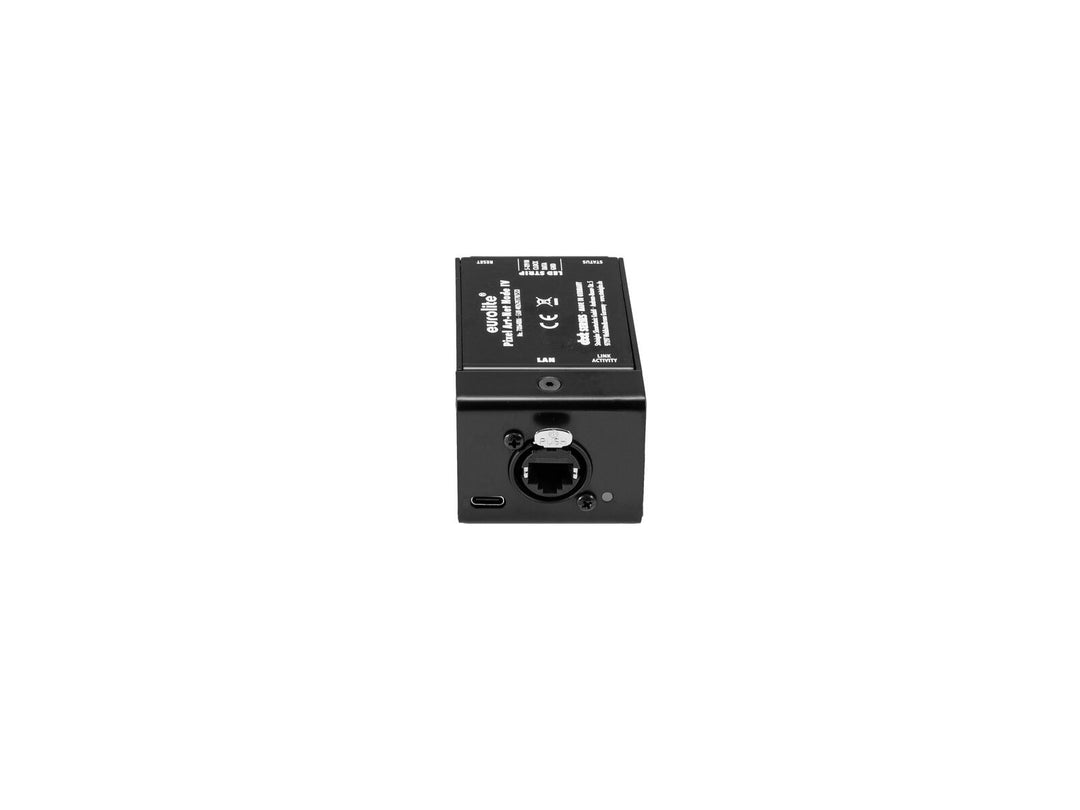

EUROLITE DXT Pixel Art-Net Node IV

Name: EUROLITE DXT Pixel Art-Net Node IV
Brand: EUROLITE
SKU: STE-70064886
Price: 161.95 EUR
Availability: BackOrder

1 4

€161,95

Sis. alv. • B2B ilman alv.

Ulkoinen varasto – toimitus 6–11 arkipäivää

Toimitus €10 (ilmainen yli €199)

Muut asiakkaat ostivat

Art-Net interface for control of 50000 digital LED channels

Can receive and process up to 2048 DMX channels
1 to 6 colors per pixel
Supports pixel groups (1 - 9999)
Configuration with website or Art-Net
Does not require a separate adapter - power supply is via LED strip (5-12 V)
Rugged metal housing
Useable for WS2801; WS2811, WS2812, SK6812; APA102 LED´s
Control via Art-Net; sACN
Built with NEUTRIK connector
The device can be connected via RJ-45 etherCON (F) mounting version to the PC in connection with f.e. FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC)
Desktop console housing
Made in Germany

Scope of delivery

Power supply:	5-12V DC
Pin configuration:	Pin1 (GND) / Pin2 (DATA) / Pin3 (CLOCK) / Pin4 (VIN)
Power consumption:	1 W
Power connection:	Mains input via 4-pin screw plug connector (M) mounting version
DMX channels:	Input 2048
Network connection:	Protocol: Ethernet TCP/IP via 1x RJ-45 etherCON (F) mounting version, 10 Mbit/s Standard: IEEE 802.3u
Control:	Art-Net; sACN
Control channels:	50000
Housing color:	Black
Status LED:	Signal, link
Connections:	Input: 1 x RJ-45 etherCON (F) mounting version Output: screw plug-in terminal
Use of brands:	Built with NEUTRIK connector
PC connect:	F.e. FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC) via RJ-45 etherCON (F) mounting version
Housing design:	Desktop console housing
Dimensions:	Length: 7.8 cm Width: 5.0 cm Height: 4.2 cm
Weight:	0.25 kg
