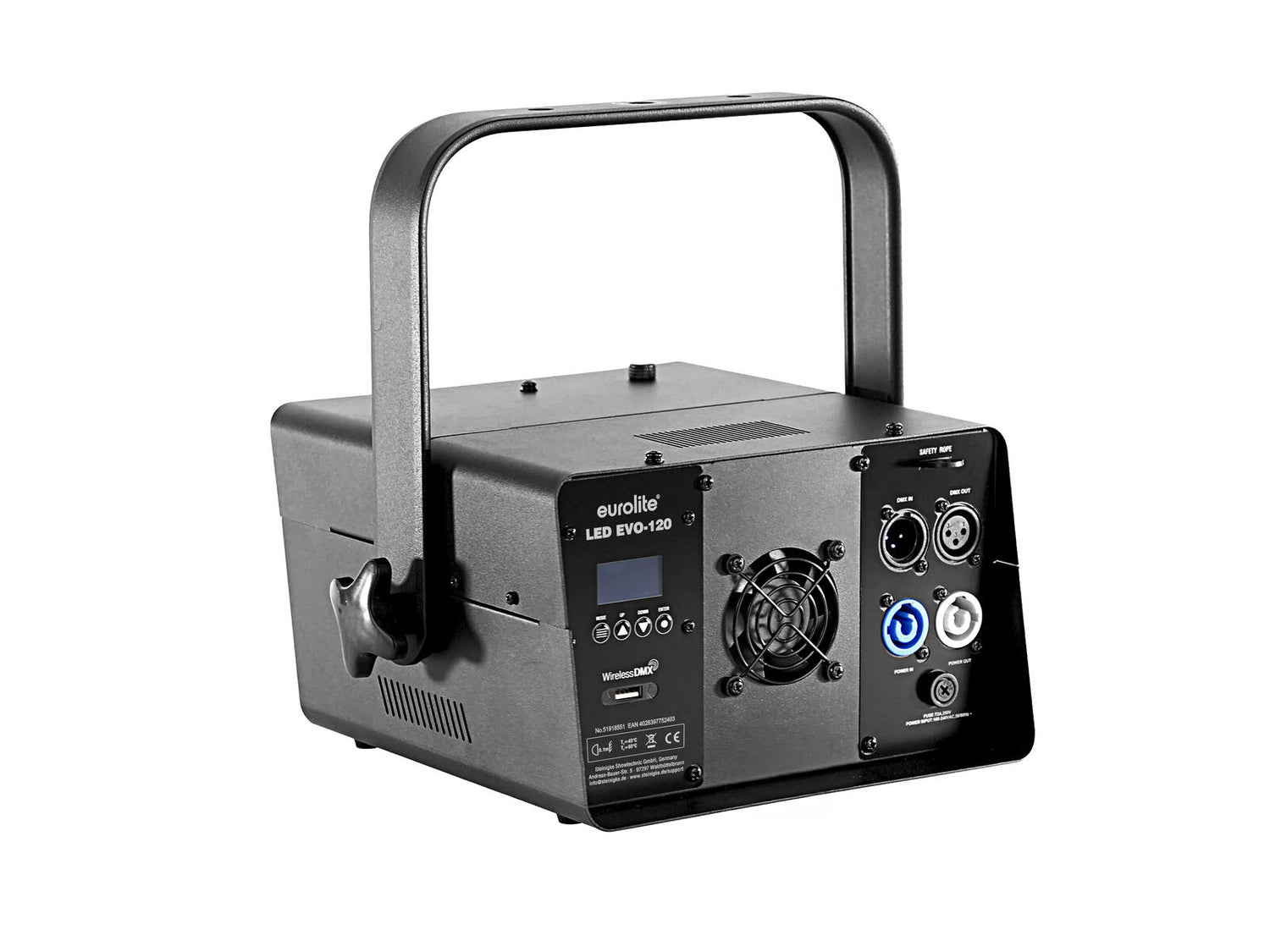

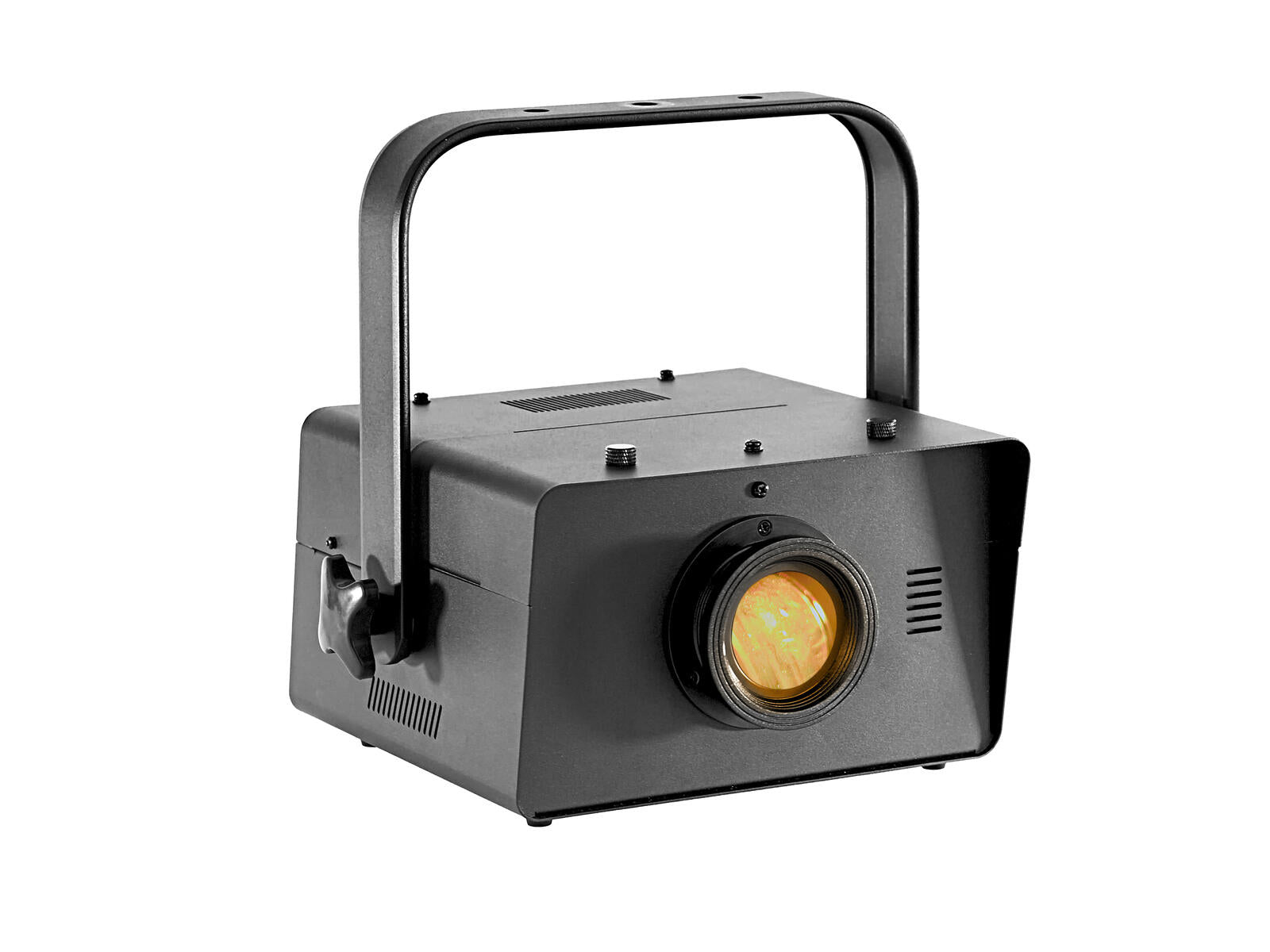

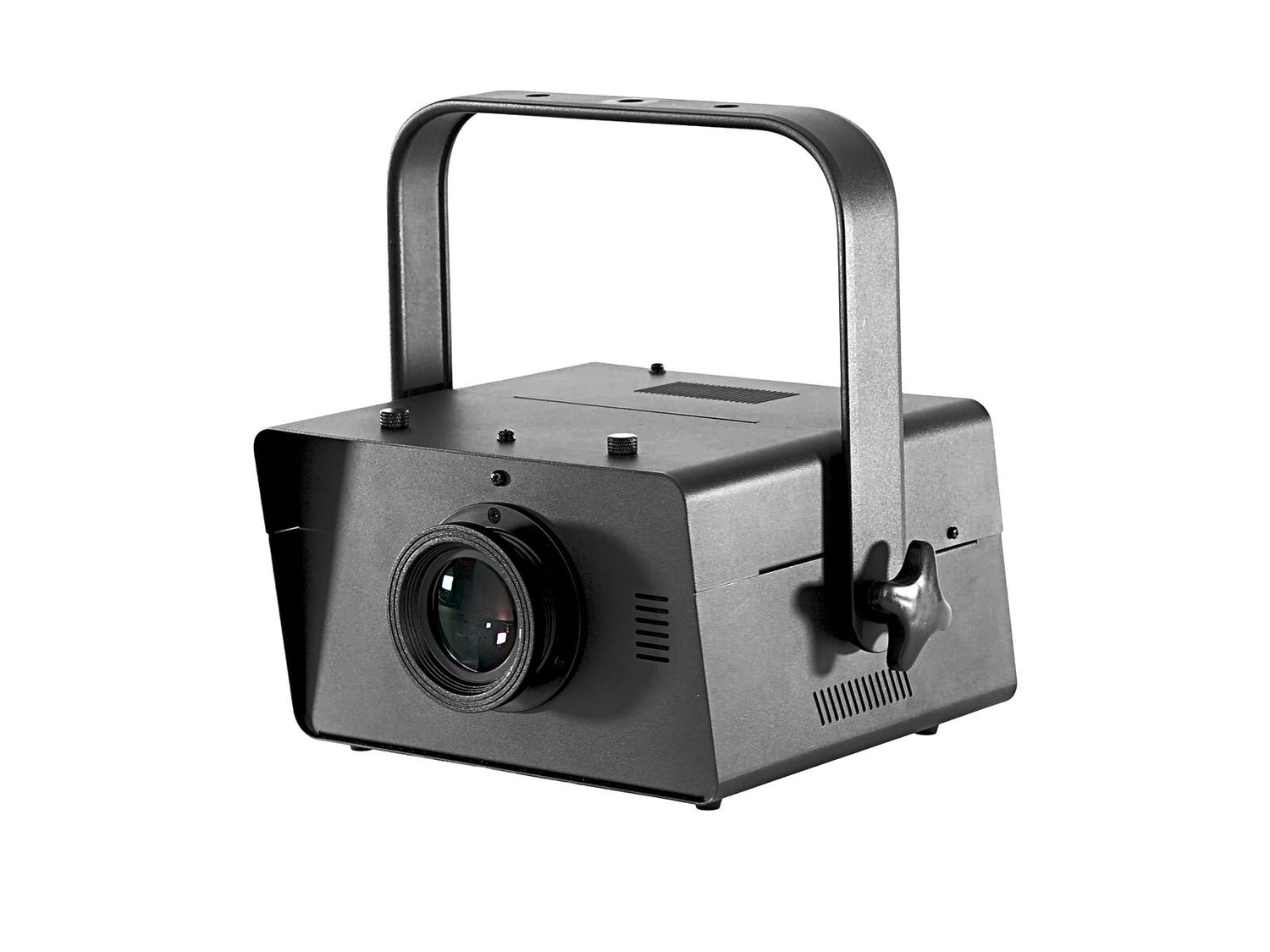

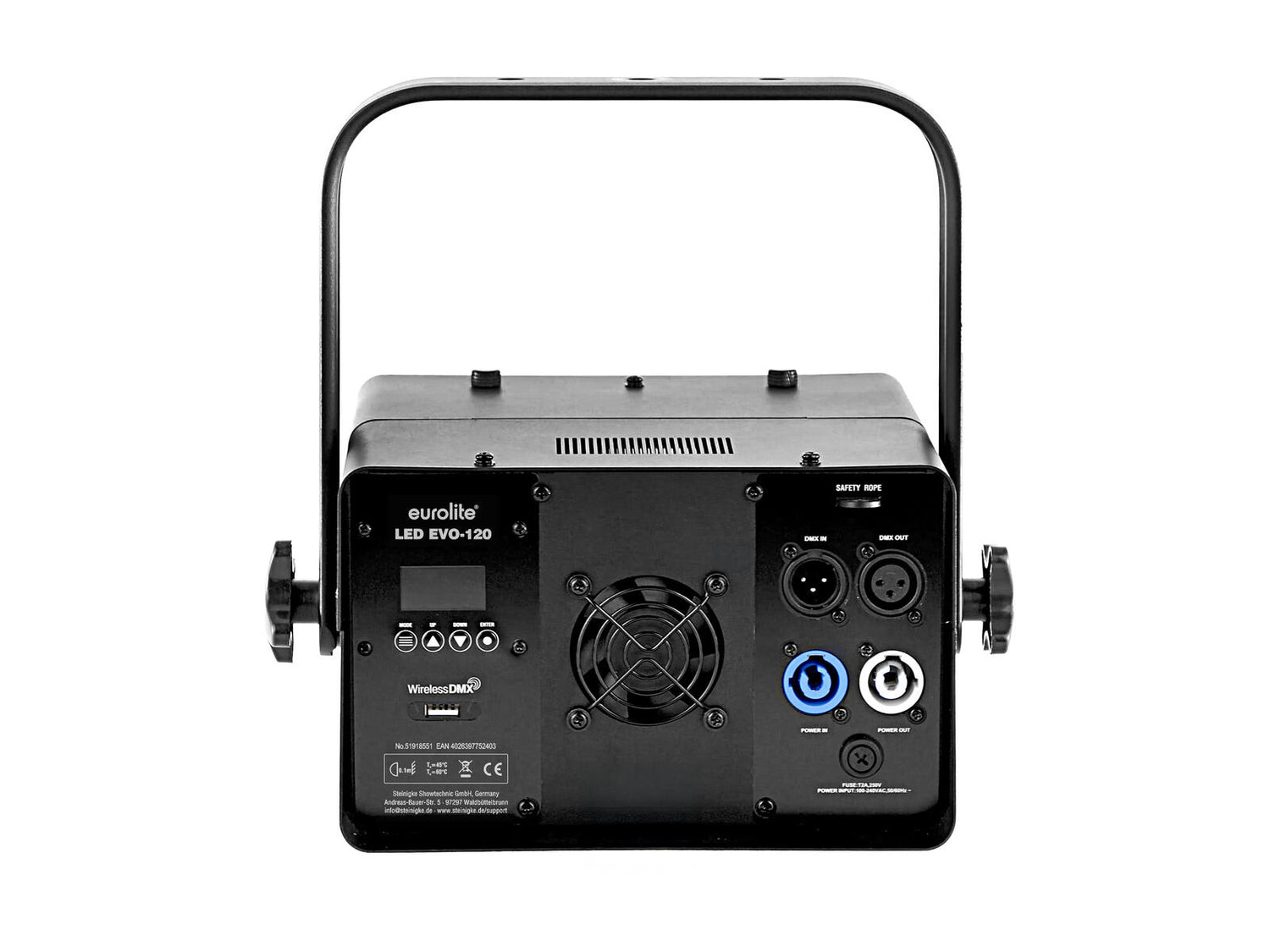

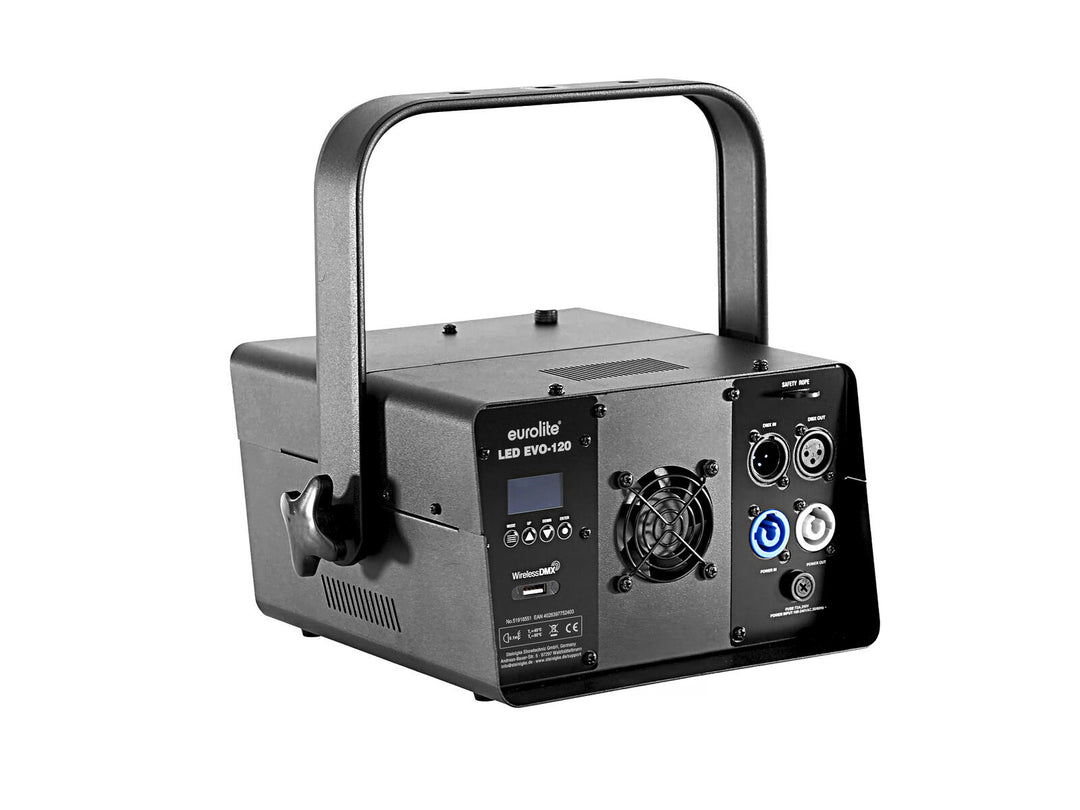

EUROLITE LED EVO-120 QCL -moniefektiprojektori

Denne lyseffekt tilbyder usædvanligt alsidige kreative muligheder. Den leveres med fire effekthjul, hvoraf to nemt kan indsættes ved hjælp af magnetiske beslag. Sættet indeholder to strukturerede glas-hjul, et animationshjul og et gobo-hjul.Kombinationen af to strukturerede glas-hjul skaber den klassiske vand-effekt. Når det kombineres med animationshjulet, frembringer det en krystallignende effekt med fascinerende lysbrydninger. Gobo-hjulet kan bruges til standardprojektioner eller kombineres med det strukturerede glas- eller animationshjul for at tilføje et ekstra lag bevægelse. De medfølgende motiver omfatter hjerter, flammer, en snekrystal, et Halloween-græskar samt en tekstur til at simulere skyer eller vand.EVO-120 drives af en 120 W RGBW LED. Takket være sin stille tilstand, som muliggør nærmest lydløs drift, egner dette armatur sig ikke kun til fester, men også til små til mellemstore teater- og show-scener.

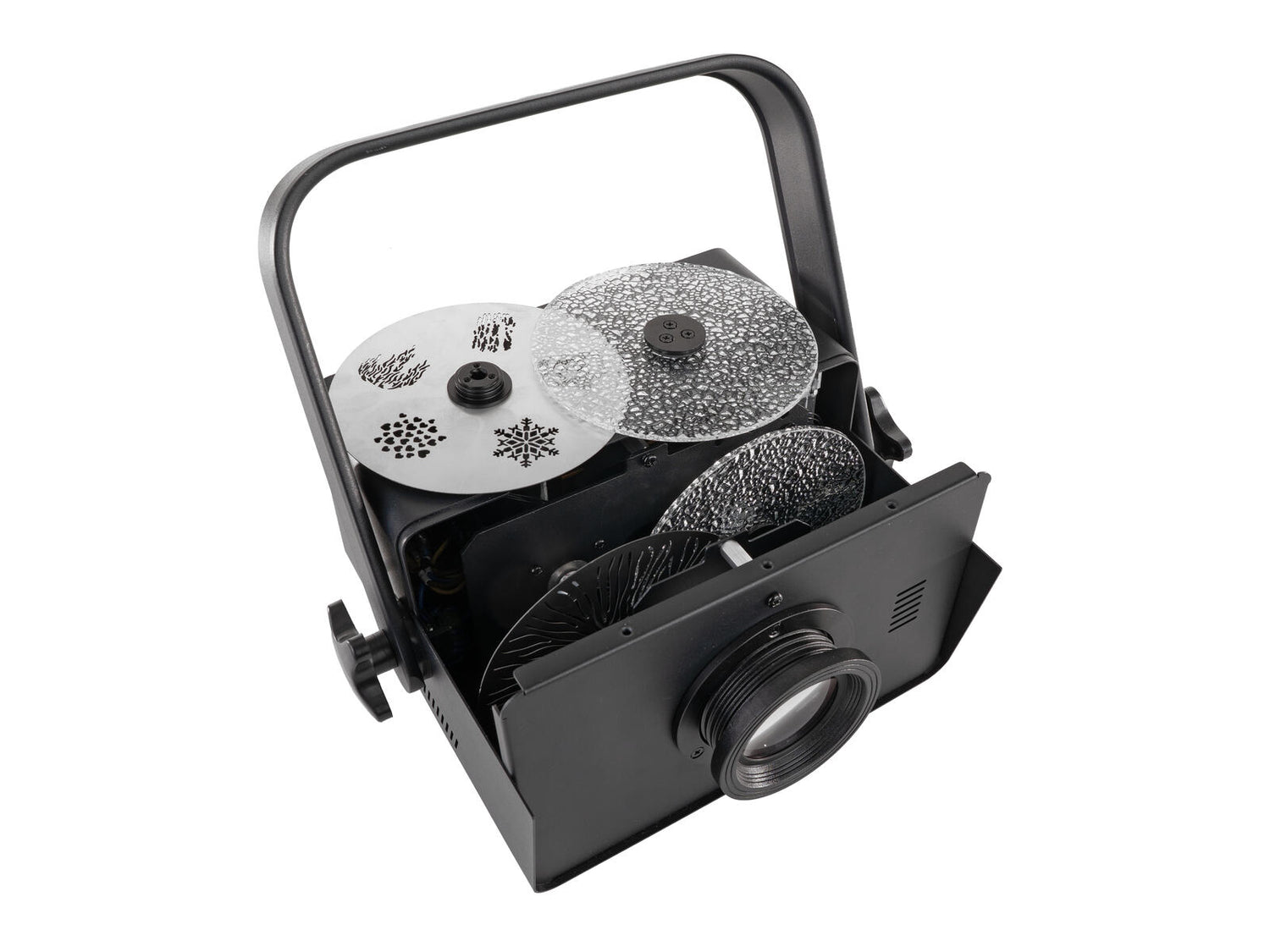

Innovativ projektionseffekt med magnetisk udskiftelige effekthjul

• 2 structure wheels, 1 animation wheel and 1 gobo wheel with 5 depictions included in the delivery
• Up to 2 wheels can be easily inserted via magnetic attachment systems
• Depending on the wheel combination, the sharpness setting and color choice, the effect produced is completely different
• 1 LED 120 W COB (chip-on-board) 4in1 RGBW
• Exact 16 bit resolution at Dimmer, color, gobo rotation
• Gobo wheel with static gobos; focus manual; animation wheel; texture wheel
• Dimmer electronic; dimmer curves with adjustable response; Dimmer speed (step response); pulse-width modulation adjustable; Rotation speed adjustable; Rotation direction adjustable; color fade adjustable
• Water effect; gobo effect; crystal effect
• Gobo wheel with static gobos, 5 gobos
• The device is cooled by temperature-controlled fan
• Control via DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB; RDM; stand-alone; master/slave function
• Flicker-free
• With a beam angle of 35°
• With mounting bracket
• Monochrome OLED display
• Mains input and output for power linking up to 8 units
• Built with SEETRONIC connector
• For application areas such as: Stage; clubs/dancing school; decoration; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels; theater; video and photography; advertisement/Shop window
• Very quiet working noise
• Application possibility: Suspended; on stand; wall mounting

Scope of delivery

• 1 x light effect
• 1 x power cord
• 1 x user manual
• 4 x effect wheel

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	120 W
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug
Cable construction:	3 x 1.5 mm² H05VV-F
Power output:	P-Con (gray), mounting version
Fuse:	5 x 20 mm, T 2 A
Lamp type:	LED lamp
LED type:	1 x 120 W COB (chip-on-board) 4in1 RGBW
Flash rate:	1 - 37 Hz
Equipment:	Gobo wheel with static gobos; focus manual; animation wheel; texture wheel
Gobos:	Gobo wheel with static gobos, 5 gobos
DMX channels:	6; 10; 17; 20
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	1 x temperature-controlled fan
Control:	DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB; RDM; stand-alone; master/slave function
Fixtures available for:	Light Captain
Projection:	Flicker-free
DMX fail mode:	Blackout; hold
Beam angle:	35°
Beam angle (1/2 peak):	35°
Beam angle (1/10 peak):	35°
Housing color:	Black
Attachment system:	Mounting bracket
Display type:	Monochrome OLED display
USB port:	1 x type A
Diameter mounting holes:	3 x Ø10mm
Use of brands:	Built with SEETRONIC connector
Material:	Steel
Dimensions:	Length: 25.2 cm Width: 30.0 cm Height: 27.3 cm
Weight:	4.90 kg
Noise classification:	Class 1 (very slight noise, suitable for noise-sensitive environments) depending on mode used
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
