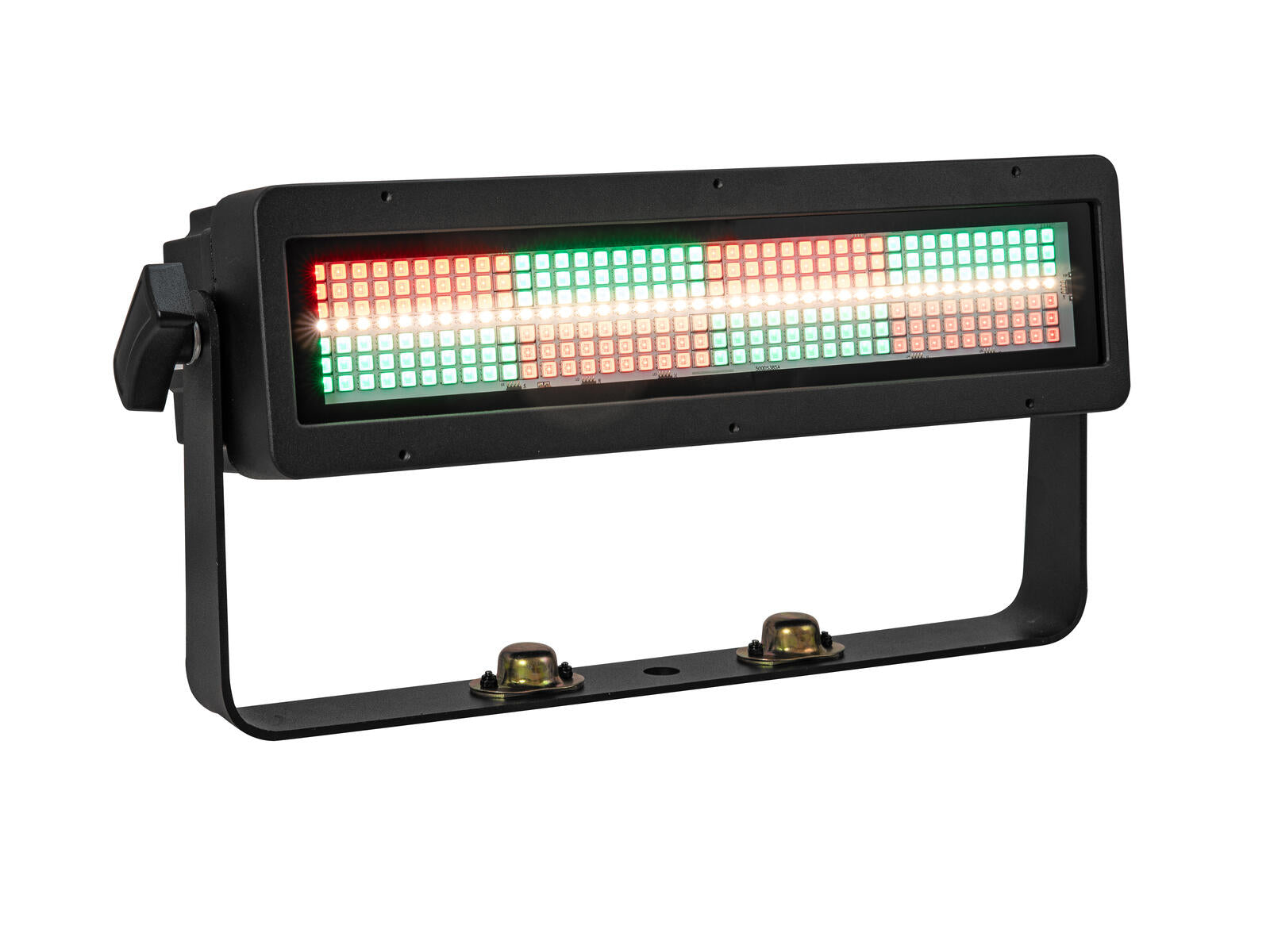

EUROLITE LED IP PIX -strobovalo RGB CW+WW 5pin MK2

MK2-version af IP PIX Strobe er stort set identisk med den originale model. Den første version har allerede bevist sig med høj output, solid byggekvalitet, et vejrbestandigt hus og fremragende værdi for pengene.Hovedopdateringen er monteringsbeslaget: det er nu længere, hvilket muliggør bedre kabelstyring ved horisontal montering. Det har også en monteringsmulighed for det medfølgende omega-bracket med hurtigudløserbeslag. Alternativt kan en clamp stadig monteres direkte på beslaget. MK2-versionen fås med enten 3-polet DMX-stik eller, som i denne version, 5-polet stik.Det gennemprøvede lyskoncept forbliver uændret: i midten er en meget lys LED-stribe med justerbar farvetemperatur fra varm hvid til kold hvid, opdelt i fire individuelt styrbare segmenter. Dette suppleres af RGB-LEDs over og under, arrangeret i otte segmenter.Med sin ekstremt brede beam vinkel og fremragende side synlighed kan armaturet bruges som strobe, blinder eller til atmosfæriske lyseffekter. Dets blæserløse design sikrer helt lydløs drift, mens det hermetisk forseglede IP65-hus giver pålidelig beskyttelse mod støv og vejr, hvilket gør det velegnet til både indendørs og udendørs brug.

Outdoor spotlight (IP65) for stroboscope, ambient and animation effects

• Compact and bright
• Show programs for white and colored LEDs on separate DMX channels
• 240 LEDs 0.5 W SMD 5050 3in1 R/G/B
  8 segments controlled separately
• 40 LEDs 1 W SMD 3030 2in1 CW/WW
  4 segments controlled separately
• With a beam angle of 120°
• Ambient effect; strobe effect; wash effect
• Dimmer electronic; color blend stepless; program speed adjustable; program selection adjustable; color animations with two adjustable colors
• 20 integrated show programs
• Variable color temperature 3200 K - 6600 K
• Control via stand-alone; sound to light via microphone; master/slave function; DMX
• Flicker-free
• With mounting bracket; with omega bracket
• OLED display
• Mains input and output for power linking up to 8 units
• Built with SEETRONIC connector
• The device is cooled by passive convection cooling
• Suitable for outdoor use IP65
• With pressure compensation membrane
• For application areas such as: Architecture; stage; clubs/dancing school; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels; theater; rental
• Silent operation
• Application possibility: Standing; suspended

Scope of delivery

• 1 x spotlight
• 1 x user manual
• 1 x power cord
• 1 x omega bracket

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	135 W
IP classification:	IP65
Protection class:	Protection class I
Power connection:	Mains input via IP T-Con (M) mounting version power supply cord with safety plug
Power output:	IP T-Con (F) mounting version
Lamp type:	LED lamp
LED type:	240 x 0.5 W SMD 5050 3in1 R/G/B 40 x 1 W SMD 3030 2in1 CW/WW
Flash rate:	1 - 25 Hz
DMX channels:	6; 10; 18; 24; 25; 32
DMX input:	1 x 5-pin XLR (M) mounting version IP
DMX output:	1 x 5-pin XLR (F) mounting version IP
Cooling:	Passive convection cooling
Control:	Stand-alone; sound to light via microphone; master/slave function; DMX
Fixtures available for:	Light Captain; Light´J; GDTF (GrandMA3)
Projection:	Flicker-free
PWM frequency:	4000 Hz
Beam angle (1/2 peak):	120°
Color temperature:	3200K - 6600K adjustable
Housing color:	Black
Attachment system:	Mounting bracket Omega bracket
Display type:	OLED display
Use of brands:	Built with SEETRONIC connector
Dimensions:	Length: 38 cm Depth: 11 cm Height: 17.6 cm
Weight:	3.60 kg
Noise classification:	Class 0 (no noise at all)

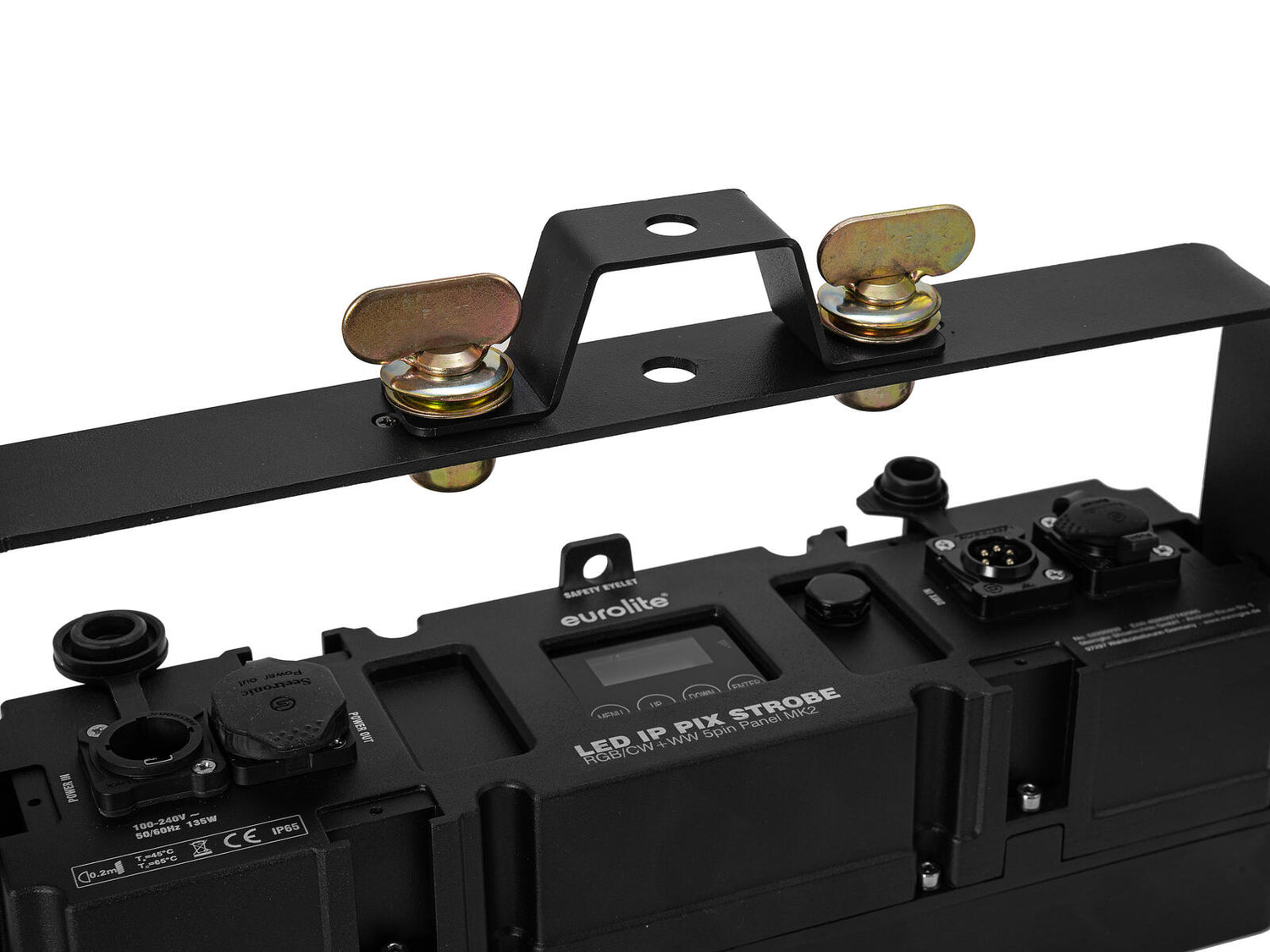

Mounting bracket
Diameter mounting holes:	3 x Ø13mm
Material:	Metal, 3 mm
Power cord
Cable construction:	3 x 1.5 mm² H07RN-F
Cable length:	Approx. 1.2 m
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
