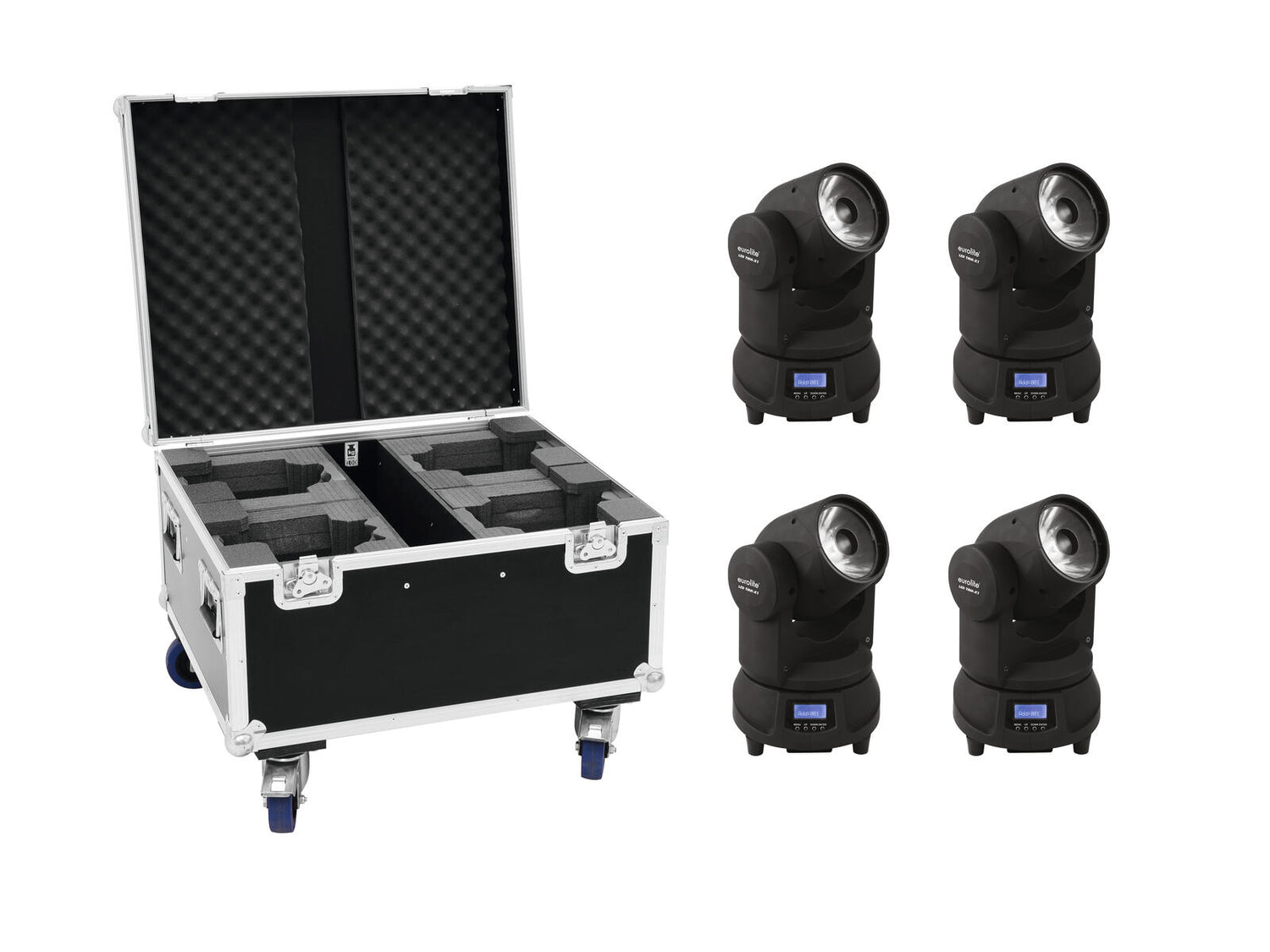

EUROLITE Set 4x LED TMH-X1 Moving Head Beam + Case
1
pois
3
Ladataan...
€2.092,95
Kpl. hinta
/
Ei saatavilla
Sis. alv. • B2B ilman alv
Toimitus €199
Kuvaus
Kuvaus
4x 60 W beam, compact, narrow angle, beautiful RGBW colors including PRO flightcase
- Positioning within

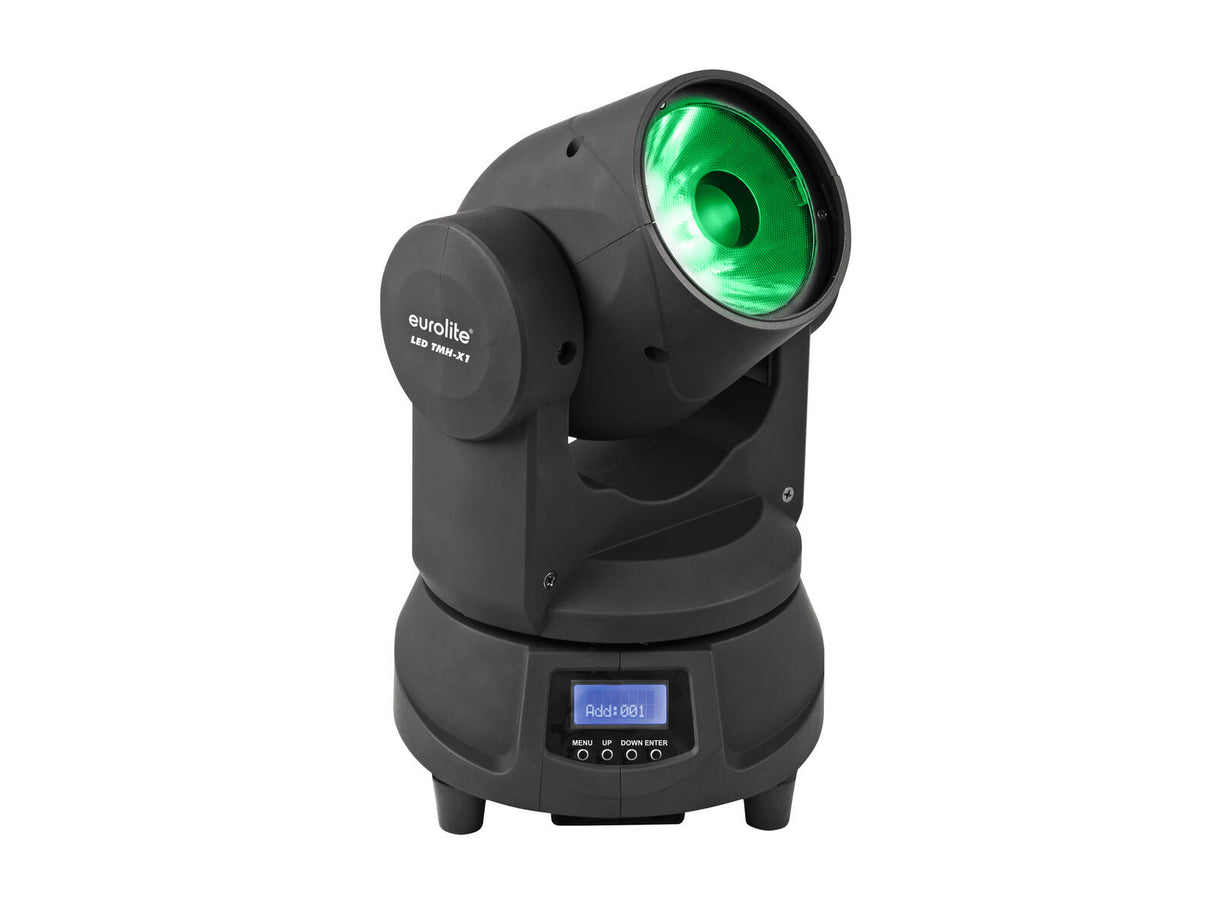

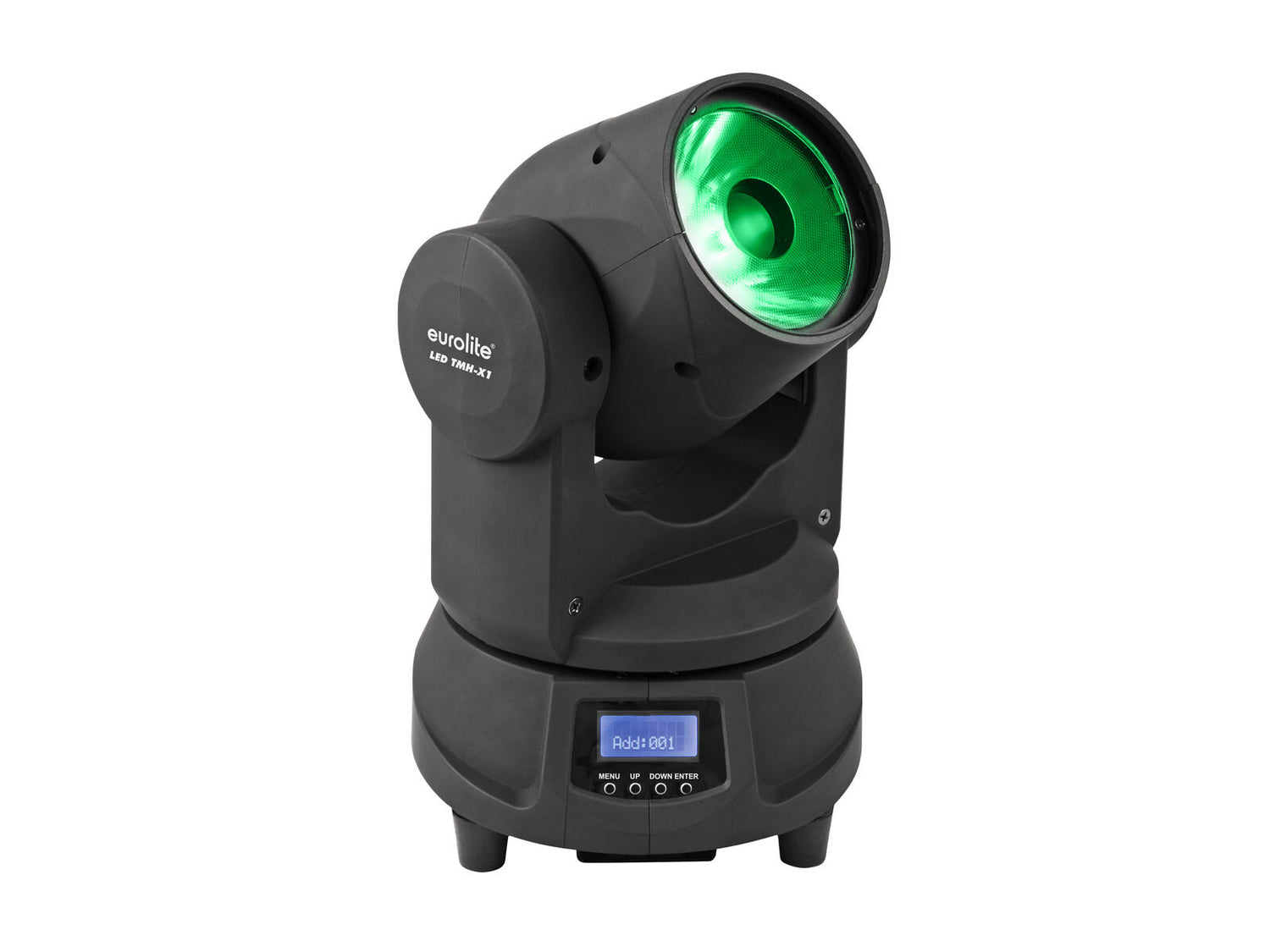

EUROLITE LED TMH-X1 Moving Head Beam
60 W beam, compact, narrow angle, beautiful RGBW colors
- Compact lightweight
- 1 LED 60 W COB (chip-on-board) 4in1 RGBW (homogenous color mix)
- Positioning within 540° PAN, 220° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Color selection; color blend stepless; Dimmer electronic
- Beam effect; strobe effect
- Integrated show programs
- The device is cooled by cooling fan
- Control via DMX; stand-alone; sound to light via microphone
- Flicker-free
- With a beam angle of 3°
- Mains input and output for power linking up to 8 units
- OSRAM bulb included
- For application areas such as: Clubs/dancing school; wedding/gala/events; stage; mobile djs / entertainer; rental
- Application possibility: Standing; suspended

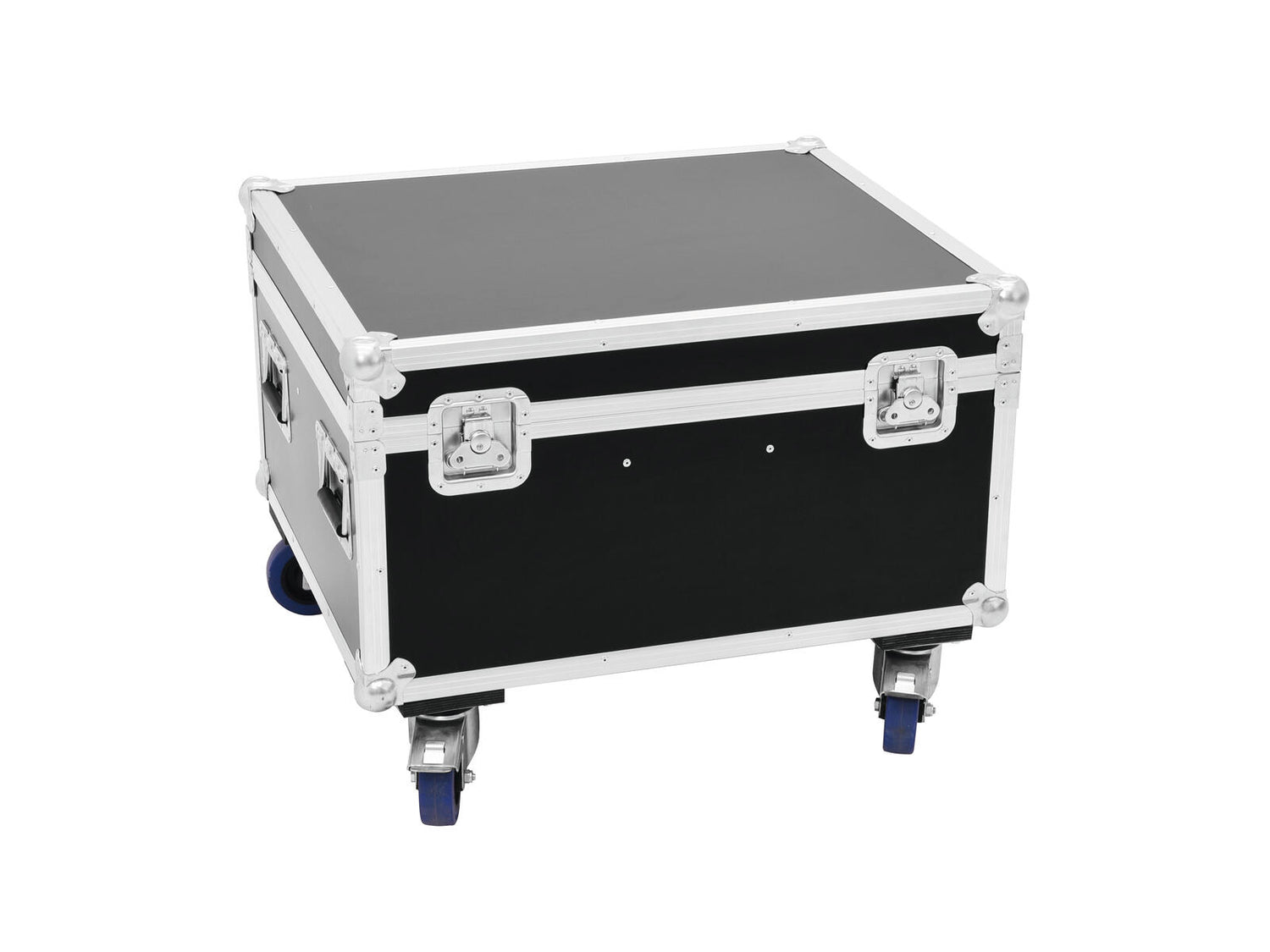

ROADINGER Flightcase 4x LED TMH-X1 Moving Head Beam with wheels
Trunk case with castors, PRO version
- With accessory compartment
- With 4 device compartments
- High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
- Interior with foam padding
- Aluminum profile frames 25mm with rounded edges
- 4 hinged, chromium plated case handles
- 1 chrome tip-over lock
- 2 high-quality butterfly locks
- 4 x castors with 2 locking brakes
- 4 x built-in stacking trays in the cover
- Branded hardware
- Made in Europe
- For further information about this product, please refer to the Data Sheet under "Downloads"
Scope of delivery
4 x EUROLITE LED TMH-X1 Moving Head Beam
- 1 x moving light
- 1 x user manual
- 1 x power cord
- 1 x omega bracket
- 1 x XLR cable
| Weight: | 39.78 kg |
| EUROLITE LED TMH-X1 Moving Head Beam | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 90 W |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| Lamp type: | LED lamp |
| LED type: | 1 x 60 W COB (chip-on-board) 4in1 RGBW (homogenous color mix) |
| Max. TILT movement: | 220° exact positioning (16 bit resolution) auto position correction (feedback) |
| Max. PAN movement: | 540° exact positioning (16 bit resolution) auto position correction (feedback) |
| Flash rate: | 0 - 10 Hz |
| DMX channels: | 14 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | DMX; stand-alone; sound to light via microphone |
| Fixtures available for: | Light´J; LED PC-Control 512; Light Captain |
| Projection: | Flicker-free |
| Beam angle (1/2 peak): | 3° |
| Beam angle (1/10 peak): | 7° |
| Illuminance in Lux (lx): | Red (R) 3m: 3251 lx, 6m: 712 lx Green (G) 3m: 4684 lx, 6m: 1125 lx Blue (B) 3m: 819 lx, 6m: 220 lx Cold white (CW) 3m: 7909 lx, 6m: 1899 lx All 3m: 15489 lx, 6m: 3655 lx |
| Housing color: | Black |
| Use of brands: | OSRAM bulb included |
| Dimensions: | Width: 20.7 cm Depth: 19.6 cm Height: 31.3 cm |
| Weight: | 4.29 kg |
| Noise classification: | Class 2 (slight noise) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| ROADINGER Flightcase 4x LED TMH-X1 Moving Head Beam with wheels | |
| Maximum load: | 100 kg |
| Aluminum profile frames: | 25 mm |
| Case handle: | 4 pc/pcs |
| Stop hinge: | 1 pc/pcs |
| Lock: | Butterfly lock: 2 pc/pcs |
| Transport aid: | 4 x castors with 2 locking brakes 4 x built-in stacking trays in the cover |
| Use of brands: | Branded hardware |
| Material: | Birch multiplex, 7 mm |
| Color: | Dark brown, laminated |
| Accessory compartment: | 10.5 cm x 60 cm x 27 cm |
| Compartment dimensions: | 27 cm x 14 cm x 27 cm |
| Inside dimensions: | 64.5 cm x 26 cm |
| Dimensions: | Width: 71 cm Depth: 61 cm Height: 53 cm |
| Weight: | 21.90 kg |
