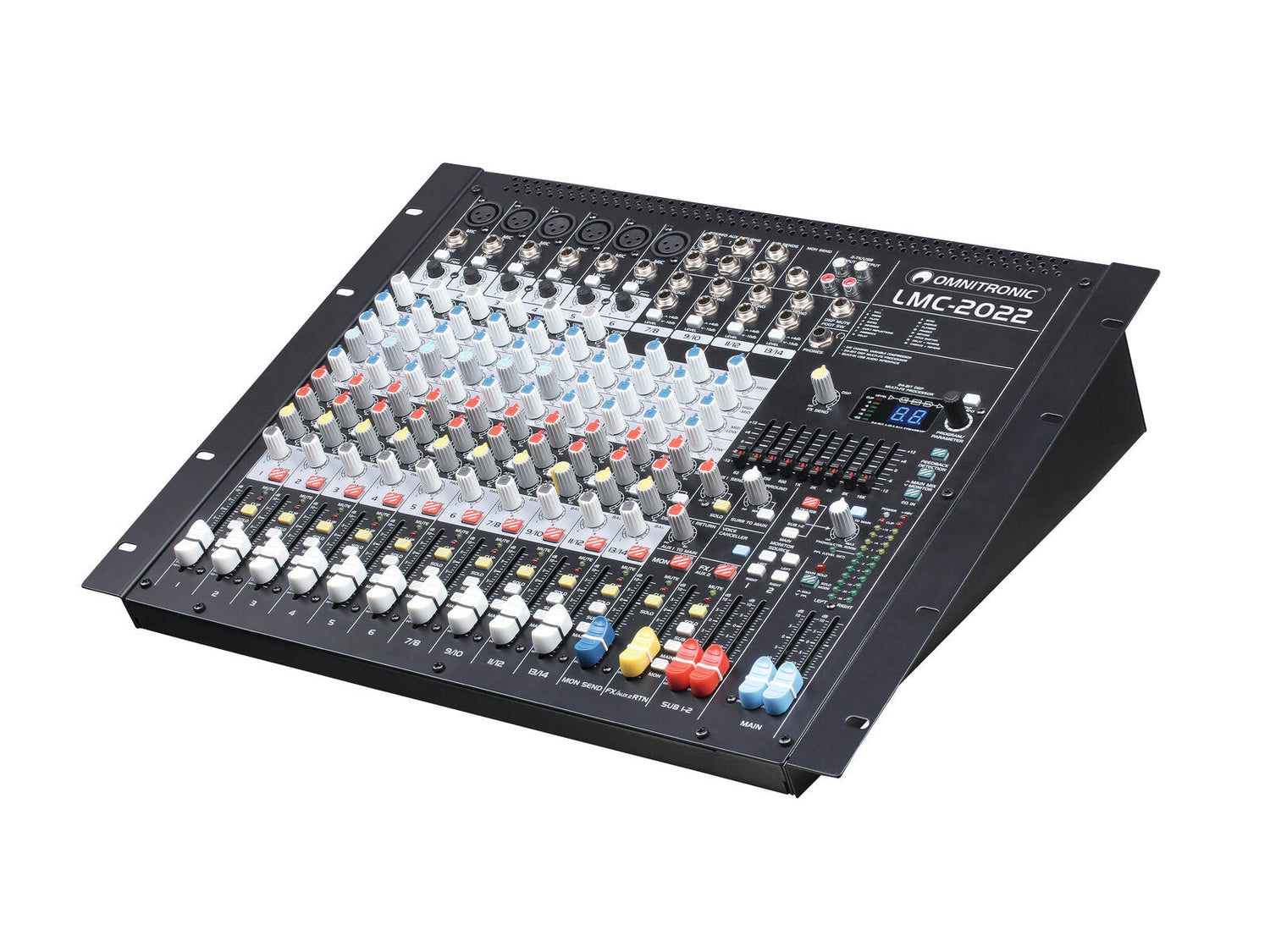

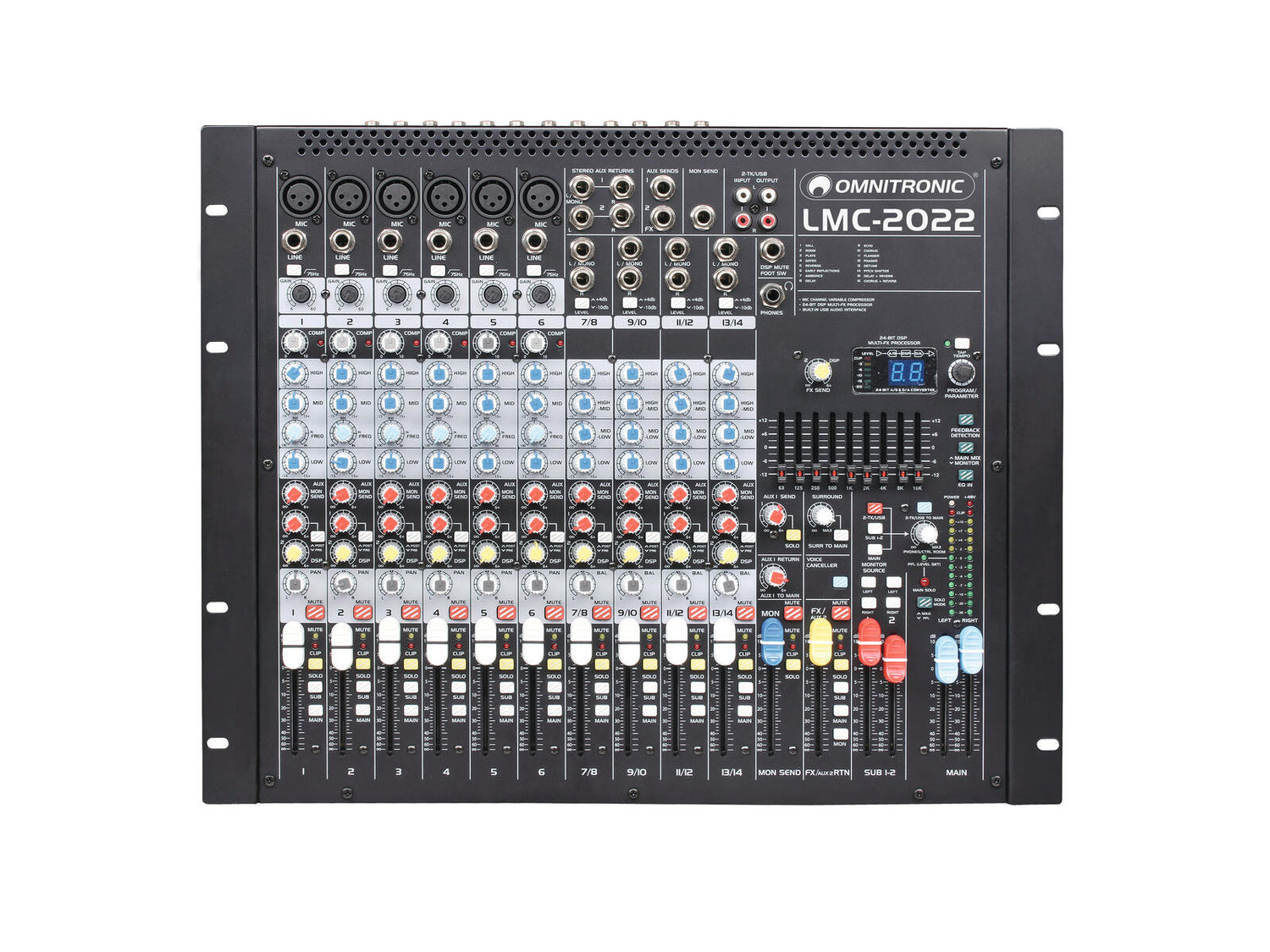

OMNITRONIC LMC-2022FX USB-miksauspöytä

Professional live mixing consoles with British EQ, FX unit and USB interfaceHelppoa saavuttaa oikea ääni LMC-sarjalla by OMNITRONIC! Uskomattoman käyttäjäystävälliset miksaukset tarjoavat lämpimän, luonnollisen äänen erinomaisin audioparametrein, laajan ominaisuussarjan ja maksimaalisen luotettavuuden - ihanteellinen ammattilaisstudiotallennuksiin, live-esiintymisiin ja kiinteisiin PA-asennuksiin. Erityisesti 2022FX sisältää useita hyödyllisiä ominaisuuksia, jotka ovat vertaansa vailla tässä hintaluokassa: palautteen tunnistusjärjestelmä, voice canceller ja 3D stereo surround -efekti.Kaikissa mono-kanavissa on erittäin matalakohinaiset, huippuluokan mikrofonivahvistimet, jotka tarjoavat poikkeuksellisen 130 dB dynamiikka-alueen ja kaistanleveyden alle 10 Hz:stä yli 200 kHz:iin kristallinkirkkaaseen signaalintoistoon. Uskomattoman lämpimät ja luonnolliset ekvalisaattorit kaikissa kanavapylväissä perustuvat klassiseen "British EQ" -piirikaavaan 60- ja 70-luvun miksauspöydistä. Lisäksi LMC-sarjan miksauksessasi on studioluokan kompressori helppokäyttöisellä yhden säätimen toiminnolla jokaisessa mono-kanavassa sekä 24-bittinen FX-prosessori 16 muokattavalla efektillä, jotka voidaan lisätä yksittäisille kanaville, busseille tai päämixiin. Sisäänrakennetun USB-ääniliitännän avulla jopa 48 kHz näytetaajuudella voit liittää Windows- tai Mac-tietokoneen ja tallentaa sessiot välittömästi.

PRO audio mixer with British-style EQ, compressor, effect unit and USB interface

• 6 mono input channels with gain control, 3-way EQ with semi-parametric mid band, low cut and pan control
• 6 inserts for flexible connection of outboard equipment on each mono channel
• 4 stereo input channels with 4-way EQ, level selection and balance control
• State-of-the-art, low-noise mic preamps with 130 dB dynamic range and high headroom
• Exceptional British EQs for warm and musical sound
• Studio-grade compressors with easy one-knob functionality and control LED on each mono channel
• 24-bit DSP FX unit with 16 editable presets, tap function and storable user parameter settings
• Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
• Intelligent feedback detection system makes eliminating feedback frequencies easy
• Voice canceller filters out vocal portions for karaoke applications
• Incredible 3D stereo surround effect for an enhanced listening experience
• 9-band stereo graphic EQ with illuminated faders allows tuning monitor or main mixes
• 3 AUX sends per channel: AUX 1 pre-fader for monitoring, AUX 2 pre/post-fader switchable for monitoring/FX applications, AUX 3 post fader for internal FX
• 2 subgroups with separate outputs for added routing flexibility
• 2 stereo AUX returns with flexible routing
• Clip LEDs on all channels
• Routing switches for mute, main mix, subgroup and solo/PFL on all channels
• Balanced main mix outputs with 6.3 mm jack and gold-plated XLR connectors
• Control room/phones outputs with multi-input source matrix
• CD/tape input assignable to main mix or control room/phones outputs, CD/tape output
• Precise 12-digit LED level meter
• BNC lamp socket
• FX mute with remote control via footswitch
• +48 V phantom power, can be switched centrally
• Digital signal processor 24 bit with 16 effects
• Monochrome 2 digit 7-segment LED display
• The device can be connected via USB to the PC
• (19") 48.3 cm rack installation possible
• For application areas such as: Clubs/dancing school; stage; theater; concerts/FoH's; rental

Scope of delivery

• 1 x mixer
• 1 x user manual
• 1 x power cord
• 1 x USB cable
• 2 x angle

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	50 W
Protection class:	Protection class I
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range:	20 - 20000 Hz
S/N ratio:	>110 dB
THD:	<0.05 % at 1 kHz
DSP:	Digital signal processor 24 bit with 16 effects
Phantom power:	48 V DC
Impedance:	Input: microphone 2.6 kOhm , bal. Input: line 10 kOhm , bal. Input: 2-Track 10 kOhm Input: AUX returns 10 kOhm , bal. Insert: 10 kOhm , unbal.
Gain:	Input: variable
Crosstalk:	>89 dB
Display type:	Monochrome 2 digit 7-segment LED display
Control elements:	Encoder, power switch, phantom power switch
Status LED:	Master level meter, clip, gain reduction, Mute, phantom power; power

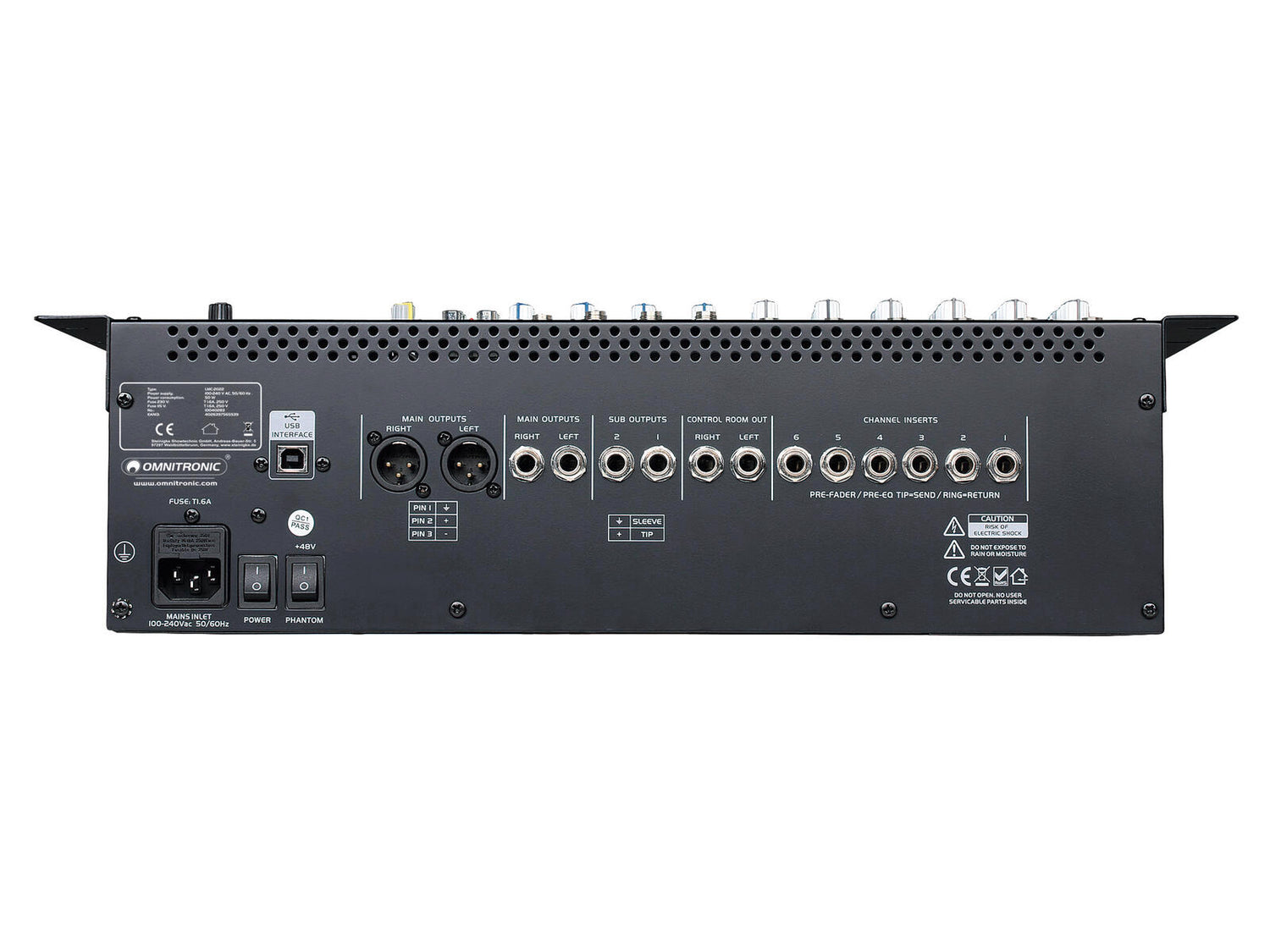

Connections:	Lamp via 1 x BNC (F) Input: microphone via 6 x 3-pin XLR Input: line via 14 x 6.3 mm jack socket (mono) mounting version Input: 2-Track via 1 x stereo RCA Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version Output: rec. via 1 x stereo RCA Output: master via 2 x 3-pin XLR Output: master via 2 x 6.3 mm jack socket (mono) mounting version Output: sub groups via 2 x 6.3 mm jack socket (mono) mounting version Output: AUX sends via 3 x 6.3 mm jack socket (mono) mounting version Output: foot control via 1 x 6.3 mm jack socket (stereo) mounting version Output: control room via 2 x 6.3 mm jack socket (mono) mounting version Output: AUX returns via 4 x 6.3-mm-jack (bal.) Insert: channel via 6 x 6.3 mm jack socket (stereo) mounting version
Channels:	Input channel: 6 x mono via XLR or jack, channel control via 60mm fader, 3-band EQ-Poti with semiparametric mid-band EQ ±15dB at 80Hz/100-8kHz/12kHz, 3 Send/AUX, pre-post switch, adjustable single-knob compressor, mute control, routing sub group bus switch, routing master bus switch, low cut switch, panoramacontol, gain control, solo switch Input channel: 4 x stereo via jack, channel control via 60mm fader, 4-band EQ-poti EQ ±15dB at 80Hz/500Hz/3kHz/12kHz, 3 Send/AUX, pre-post switch, routing sub group bus switch, routing master bus switch, mute control, solo switch, low cut switch, balancecontrol, Input sensitivity switch Master output: 1 x stereo, channel control via 60mm fader, graphic equalizer 9-band EQ ±12dB at 63/125/250/500Hz 1/2/4/8/6kHz
Crossover frequency:	High-pass 75 Hz, 18db/oct
Max. level:	Output: master +28 dBu, bal. Output: sub groups +22 dBu, unbal. Output: control room +22 dBu, unbal. Output: rec. +22 dBu Output: headphones +19 dBu, unbal. Output: AUX sends +22 dBu, unbal.
USB port:	Type B
PC connect:	Via USB
Housing design:	(19") 48.3 cm rack installation possible
Dimensions:	Width: 48.3 cm Depth: 40 cm Height: 12.7 cm
Weight:	6.25 kg
