OMNITRONIC ODX-208TMB Installation Speaker 100V black
1
pois
5
Ladataan...
€370,95
Kpl. hinta
/
Ei saatavilla
Sis. alv. • B2B ilman alv
Ilmainen toimitus
Kuvaus
Kuvaus
Weather-proof 8" wall speaker (IP56) with mount, 150 W RMS
- Well-balanced sound
- 2-way coaxial system with 20 cm woofer (8") and 2.5 cm dome tweeter (1")

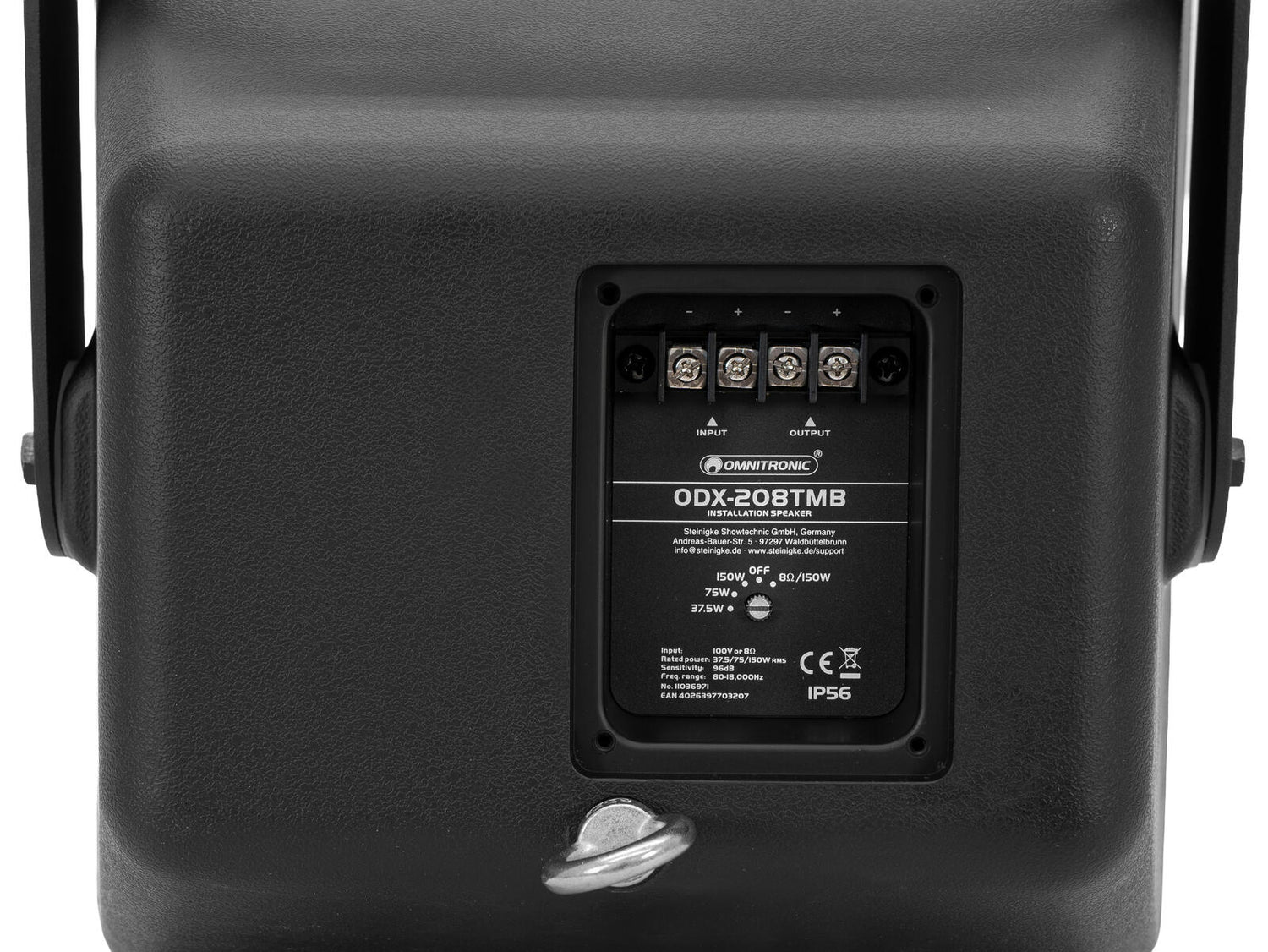

- Power selector switch with 8 ohms operating position
- Screw terminals for parallel connection
- Aluminum grille with acoustic foam

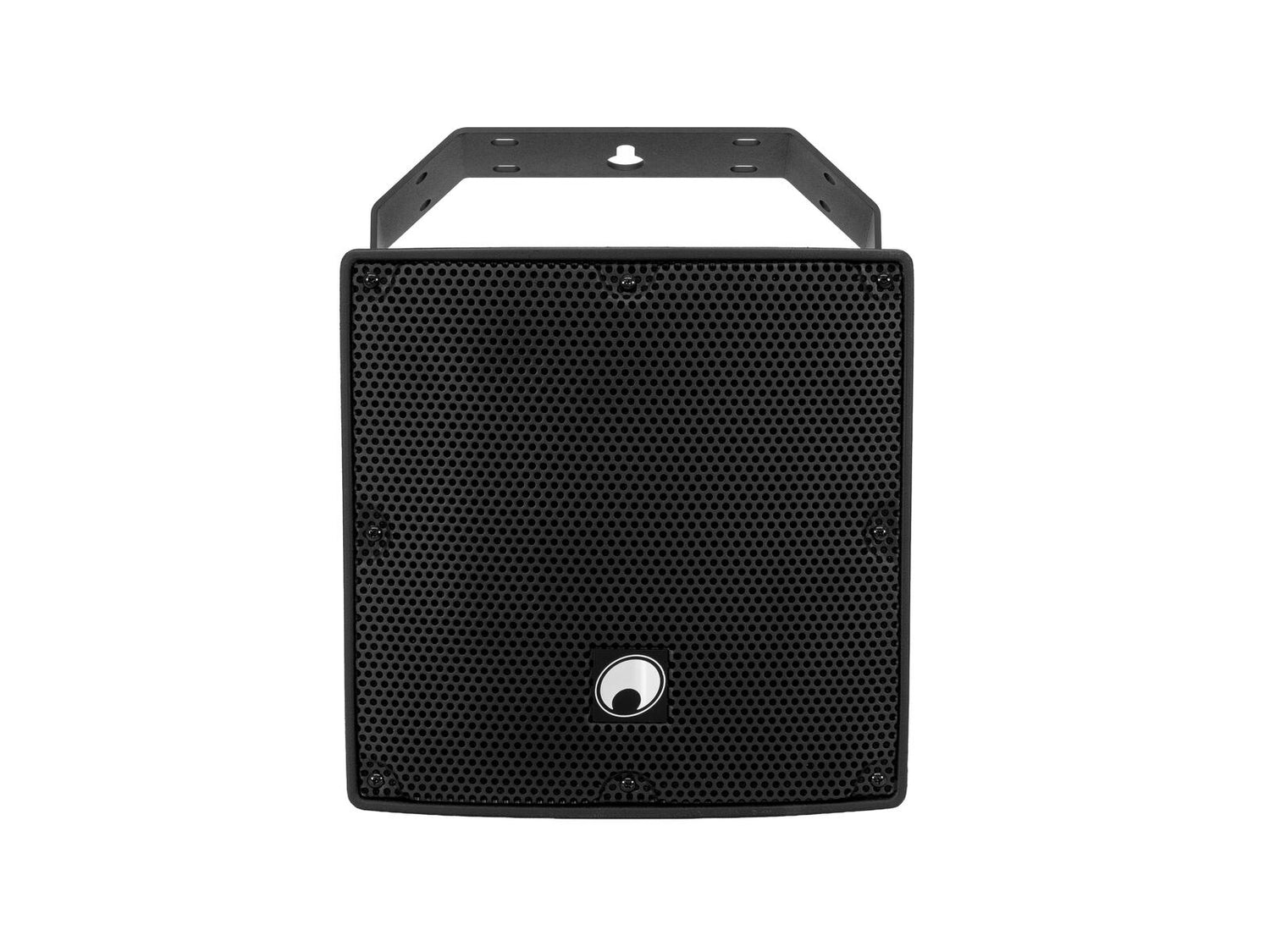

- With mounting bracket
- Suitable for outdoor use IP56
- For application areas such as: Installation; sports centres/gyms; multi-purpose hall
Scope of delivery
- 1 x top
- 1 x mounting bracket
- 1 x user manual
- 6 x screw
- 1 x safety eyelet
- 1 x lid
- 2 x washer
- 1 x screwing
| IP classification: | IP56 |
| Power: | Program: 300W Rated: 150W RMS |
| Frequency range: | 80 - 18000 Hz |
| Sensitivity: | 96 dB (1W/1m) |
| Max. SPL: | 118 dB |
| Dispersion angle: | 90° x 90° |
| Impedance: | 8 ohms; public address systems 100V |
| Attachment system: | Mounting bracket |
| Power tapping: | 37.5W; 75W; 150W RMS via selector switch switchable |
| Connections: | Input: speaker via screw terminal |
| Crossover frequency: | 2300 Hz |
| Speaker: | 1 x woofer 8" Basket material: aluminum Conematerial: cardboard/paper Voice coil lows 2" 1 x compression tweeter highs 1" Voice coil compression tweeter highs 1.4" |
| Type of speaker: | On ceiling/on wall speaker |
| Color: | Black |
| Dimensions: | Width: 30 cm Depth: 28 cm Height: 30 cm |
| Weight: | 10.60 kg |
