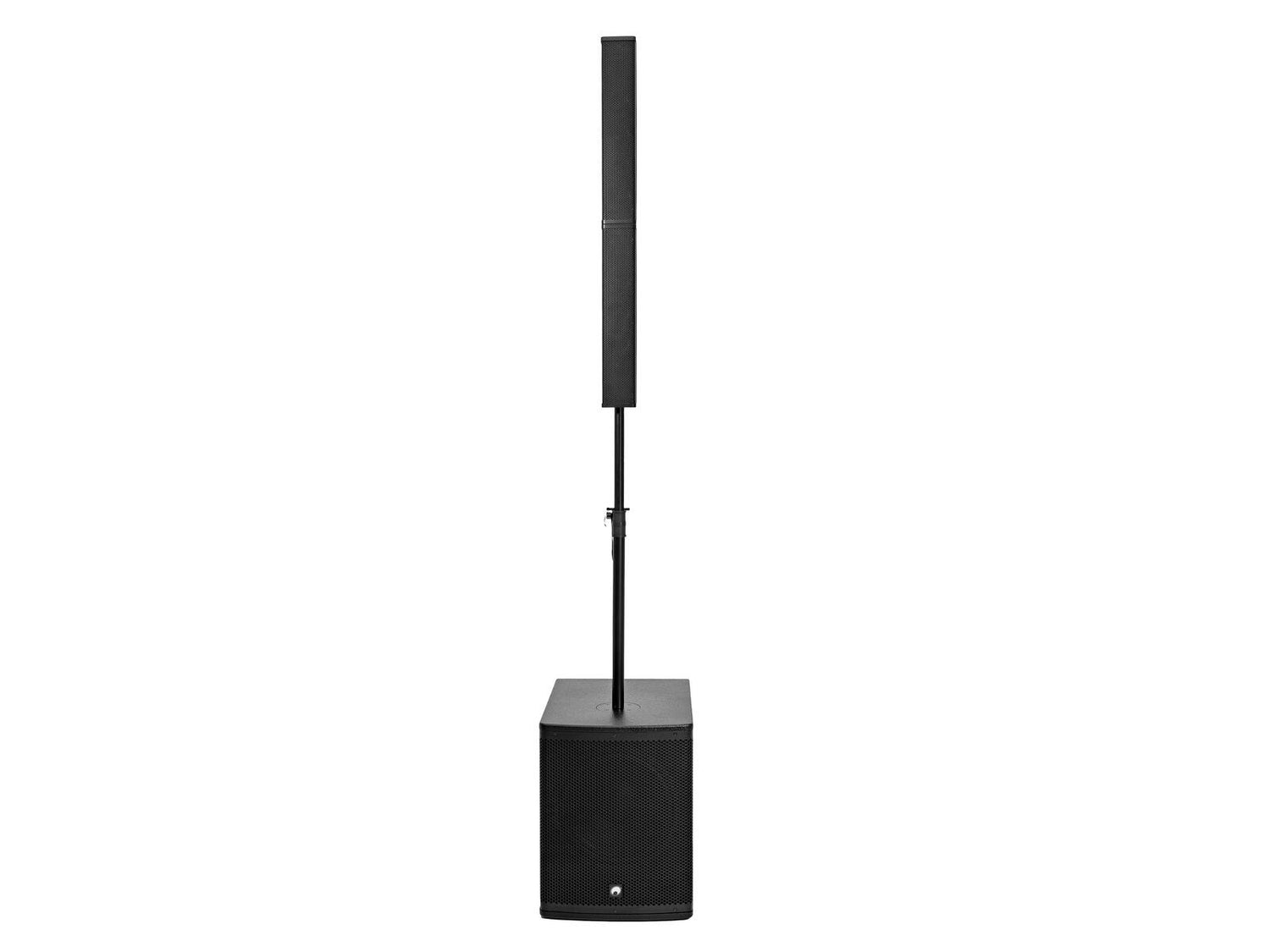

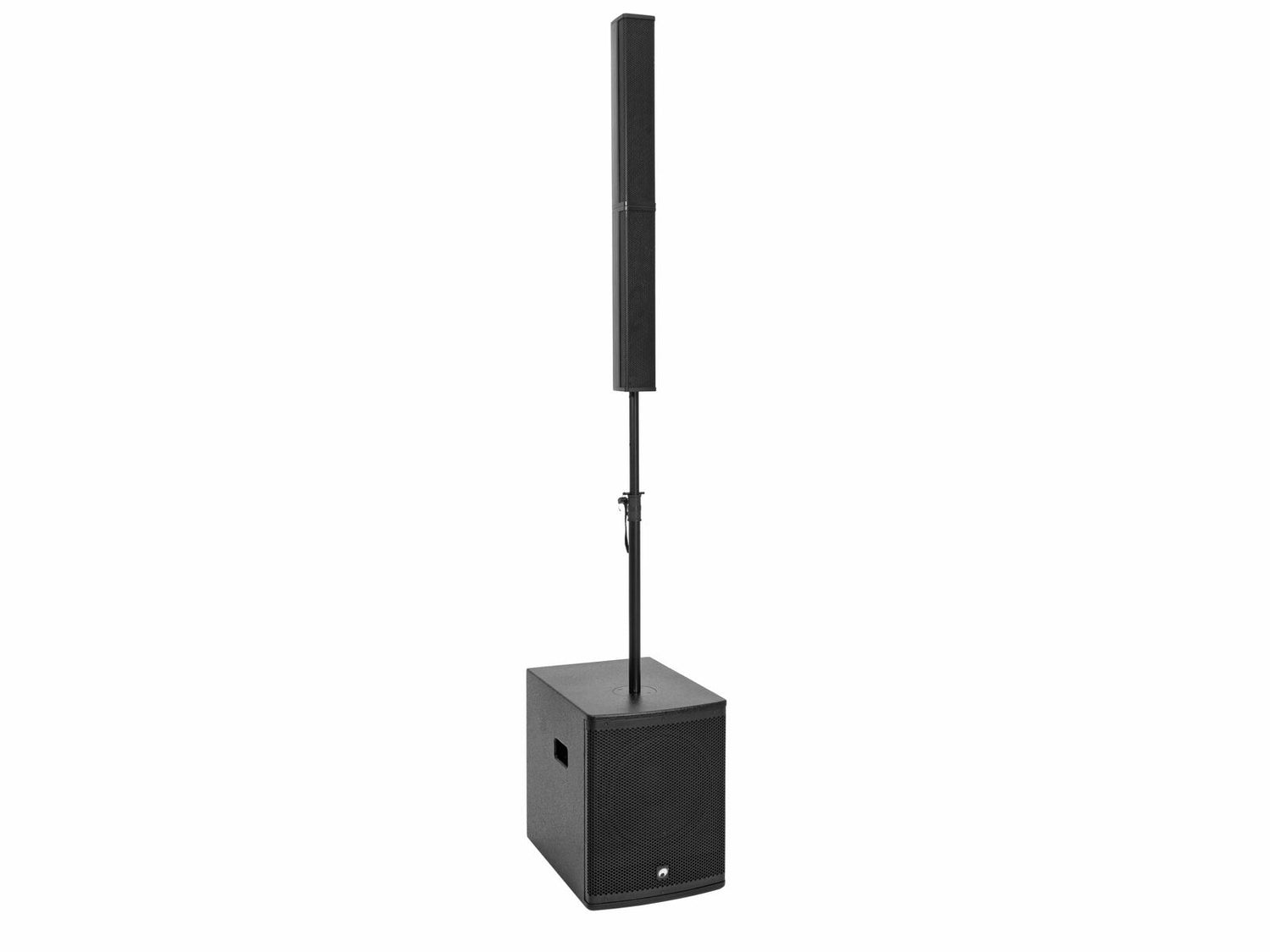

OMNITRONIC ROD-1283 Aktiivinen pylvökaiutinjärjestelmä

ROD-1283 on aktiivinen PA-järjestelmä, jolla on vaikuttavat äänenvoimakkuusvarat ja erinomainen audio-suorituskyky liikkeellä oleville DJ:ille ja muusikoille. Älykäs muotoilu 12" subwooferilla ja satelliittikaiuttimilla mahdollistaa 2.1-kokoonpanon sekä täyskaistan kaiutinjärjestelmän mono-tilassa. Satelliitit voidaan pinota ilman johtoja ja liittää subwoofer-koteloon älykkään klikki-mekanismin avulla. Integroitu vahvistin toimittaa jopa 800 watin tehon ja on suojattu limiterillä. Digitaalista 4-kanavaista mikseriä voidaan kätevästi ohjata näytön ja enkooderin kautta. Se tarjoaa laajan valikoiman tuloja mikrofonin, instrumentin, keyboardin ja kannettavan liittämiseen. Uusin Bluetooth-tekniikka TWS-tuelle takaa nopeat ja vakaat langattomat yhteydet Bluetooth audio-lähteisiin ja yhdistää kaksi ROD-järjestelmää stereokokoonpanoja varten. Käytännölliset EQ-esiasetukset mahdollistavat nopean ja sovelluspohjaisen äänimuokkauksen.

Mobile column PA system with DSP, mixer, stereo Bluetooth link, 800 W RMS

• Multiband Compressor; Multistep Limiter; Active Phase Correction; Delay Compensation; 3-band EQ
• 4-channel mixer
• 2.1 stereo mode or 1.1 mono mode with stacked modules
• Stereo Bluetooth link for wireless stereo operation with 2 systems linked together

bass

• Black metal grille with acoustic foam
• 2 recessed carrying handles
• 4 x plastic feet

integrated amplifier module

• Digital signal processor
• DSP presets: MUSIC; LIVE; SPEECH; 80 Hz low cut; FLAT
• Multicolor LCD display
• Control via Bluetooth
• Bluetooth: operating range up to 10m in buildings
• The device is cooled by low-noise cooling fan

Scope of delivery

• 1 x bass
• 2 x top
• 1 x distance tube
• 1 x power cord
• 2 x speaker cable
• 2 x tie strap
• 1 x user manual
• 1 x declaration of conformity

Output power:	800 W RMS system
Frequency range:	40 - 20000 Hz system
Max. SPL:	128 dB system
DSP:	Multiband Compressor; Multistep Limiter; Active Phase Correction; Delay Compensation; 3-band EQ
Weight:	25.90 kg
Bass
Frequency range:	40 - 150 Hz
Attachment system:	M20 thread
Speaker:	1 x woofer 12" with ferrit magnet Basket material: steel Voice coil lows 2.5" Conematerial: cardboard/paper
Type of speaker:	Subwoofer
Type of construction:	Vented
Recessed carrying handle:	2 pc/pcs
Transport aid:	4 x plastic feet
Material:	MDF (medium density fiberboard), painted
Color:	Black, textured coating
Material thickness:	16 mm
Dimensions:	Width: 37 cm Depth: 52 cm Height: 48 cm
Weight:	22.5 kg
Integrated amplifier module
Power supply:	230 V AC, 50 Hz
Power consumption:	Max. 400 W
Output power:	1 x 500 W RMS LF 2 x 150 W RMS (8 ohms) HF 1 x 300 W RMS (4 ohms) HF
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug included
Device fuse:	5 x 20 mm, T 3.15 A fuse replaceable
DSP:	Digital signal processor
DSP presets:	MUSIC; LIVE; SPEECH; 80 Hz low cut; FLAT
Cooling:	1 x low-noise cooling fan
Filter:	Low cut: 80 Hz
Control:	Bluetooth
Bluetooth:	Version: 5.3 with stereo link (TWS)
Bluetooth device name:	ROD-1283
Range:	Bluetooth: range up to 10m in buildings
Carrier frequency:	2.4 GHz
Circuitry:	Class D
Display type:	Multicolor LCD display
Control elements:	Power switch, encoder, menu, BACK button
Controls:	Overheat; short-circuit; DC voltage; limiter
Status LED:	Limit

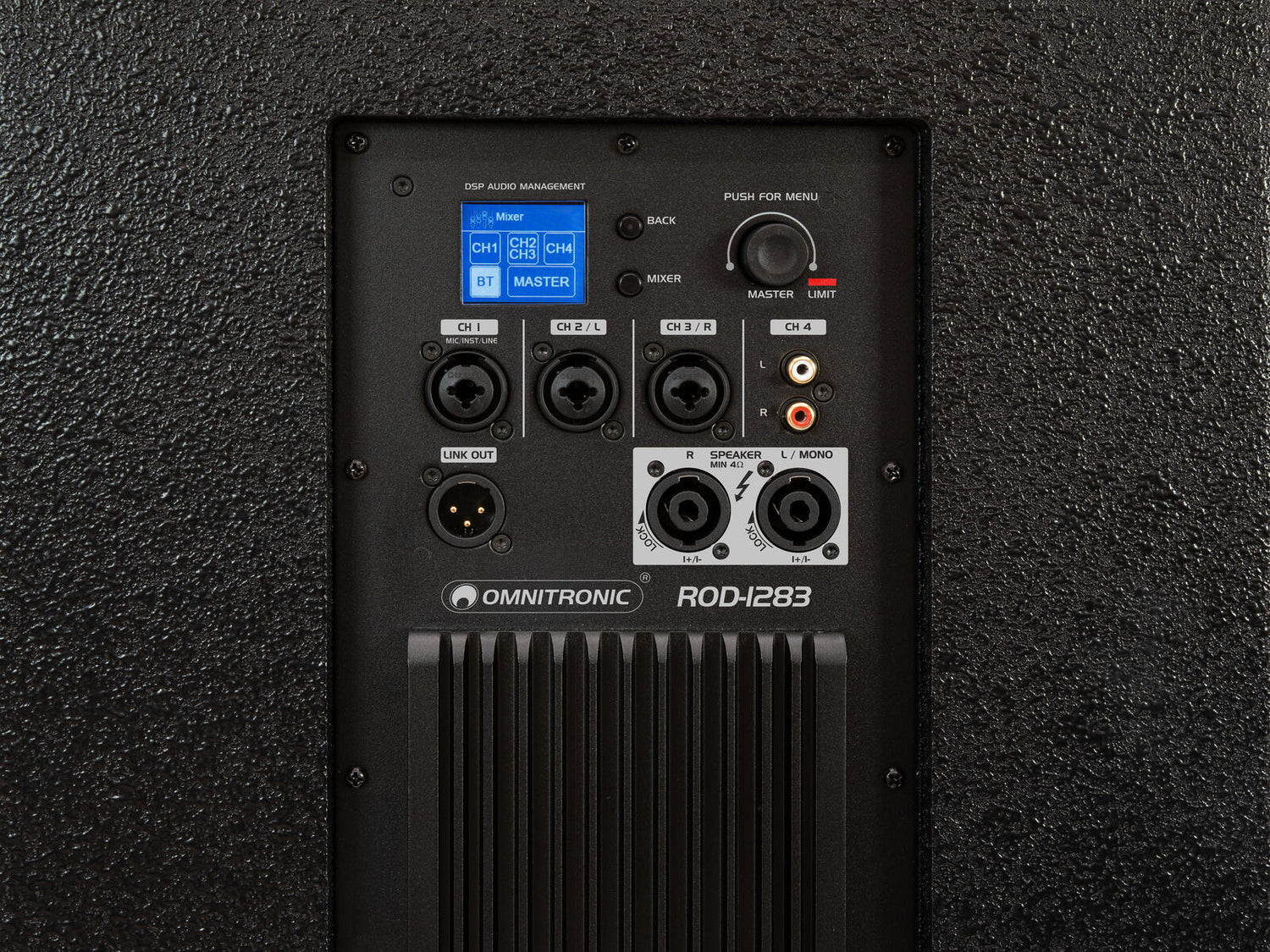

Connections:	Input: mic/line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 1 x stereo RCA Output: line via 1 x 3-pin XLR (M) mounting version Output: top via 2 x speaker built-in socket (F)
Crossover frequency:	150 Hz

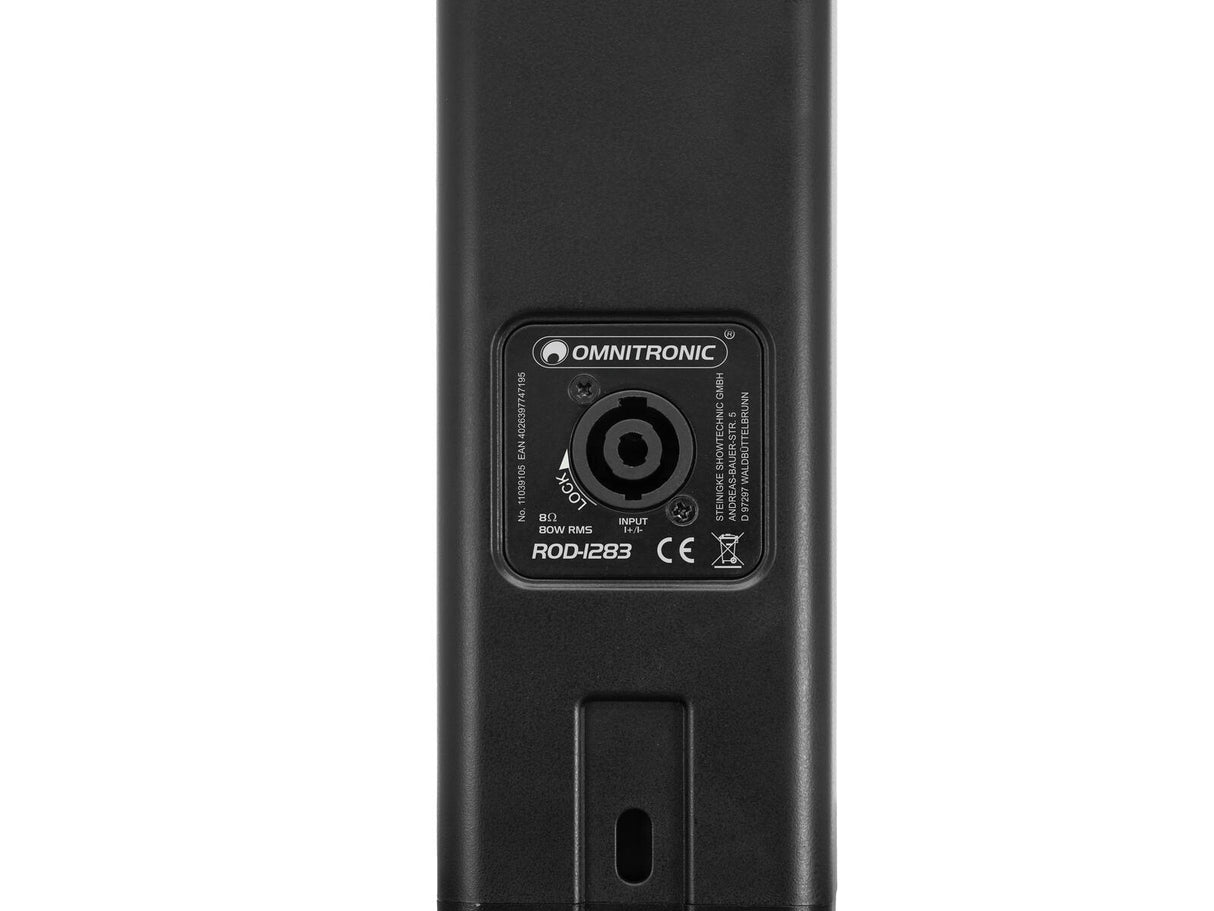

Top
Power:	Program: 160W Rated: 80W AES
Frequency range:	150 - 20000 Hz
Sensitivity:	90 dB (1W/1m)
Dispersion angle:	100° x 20°
Impedance:	8 ohms top
Attachment system:	Flange: Ø 25mm

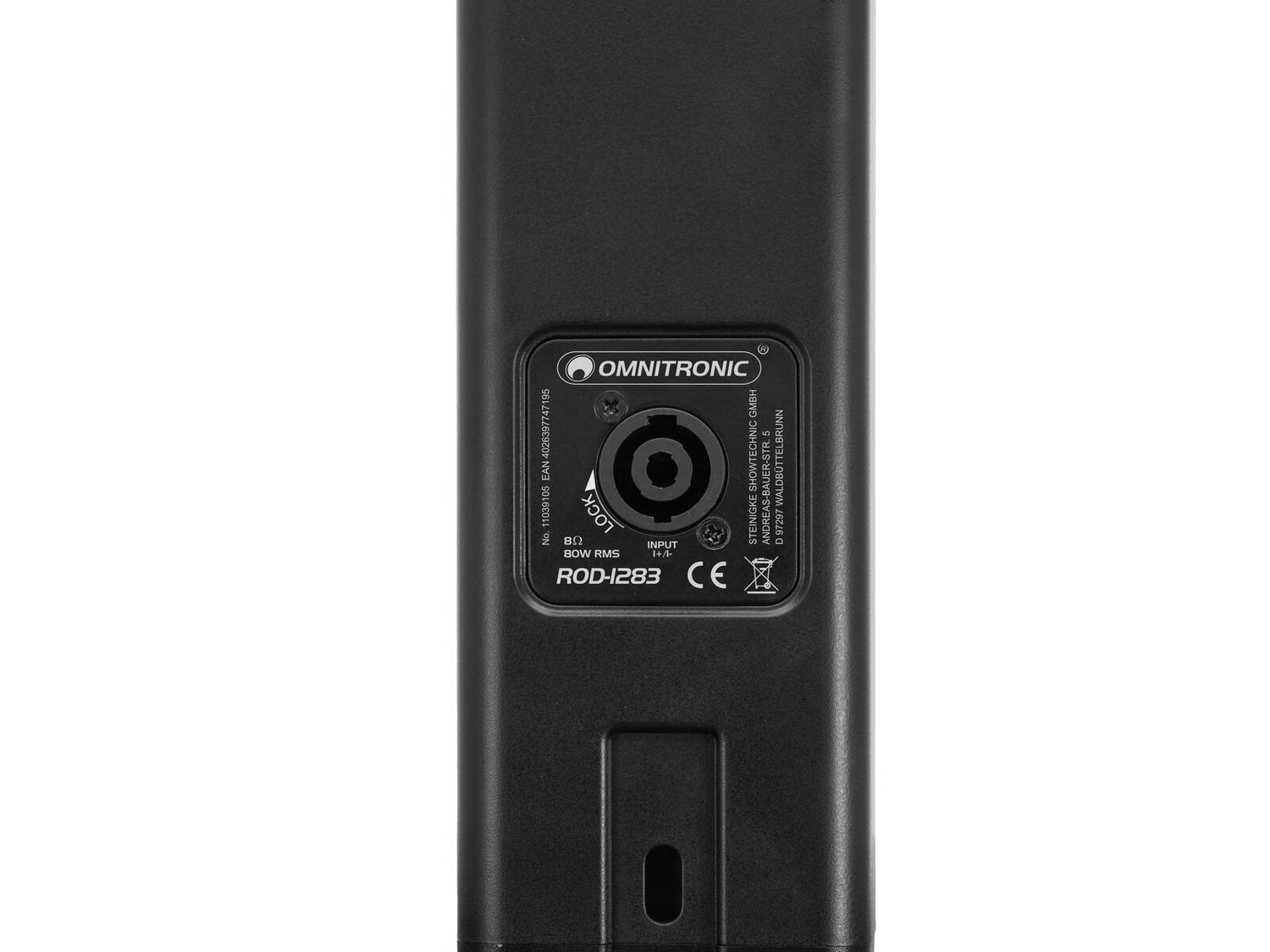

Connections:	Input: top via 1 x speaker built-in socket (F) Link: special connector
Speaker:	4 x full range loudspeaker 3" with neodymium magnet Basket material: steel Voice coil full range loudspeaker 0.75" Conematerial: cardboard/paper
Type of speaker:	Column speaker
Type of construction:	Closed Box
Material:	Plastic hard
Color:	Black
Dimensions:	Width: 8.5 cm Depth: 10.5 cm Height: 45 cm
Weight:	1.50 kg

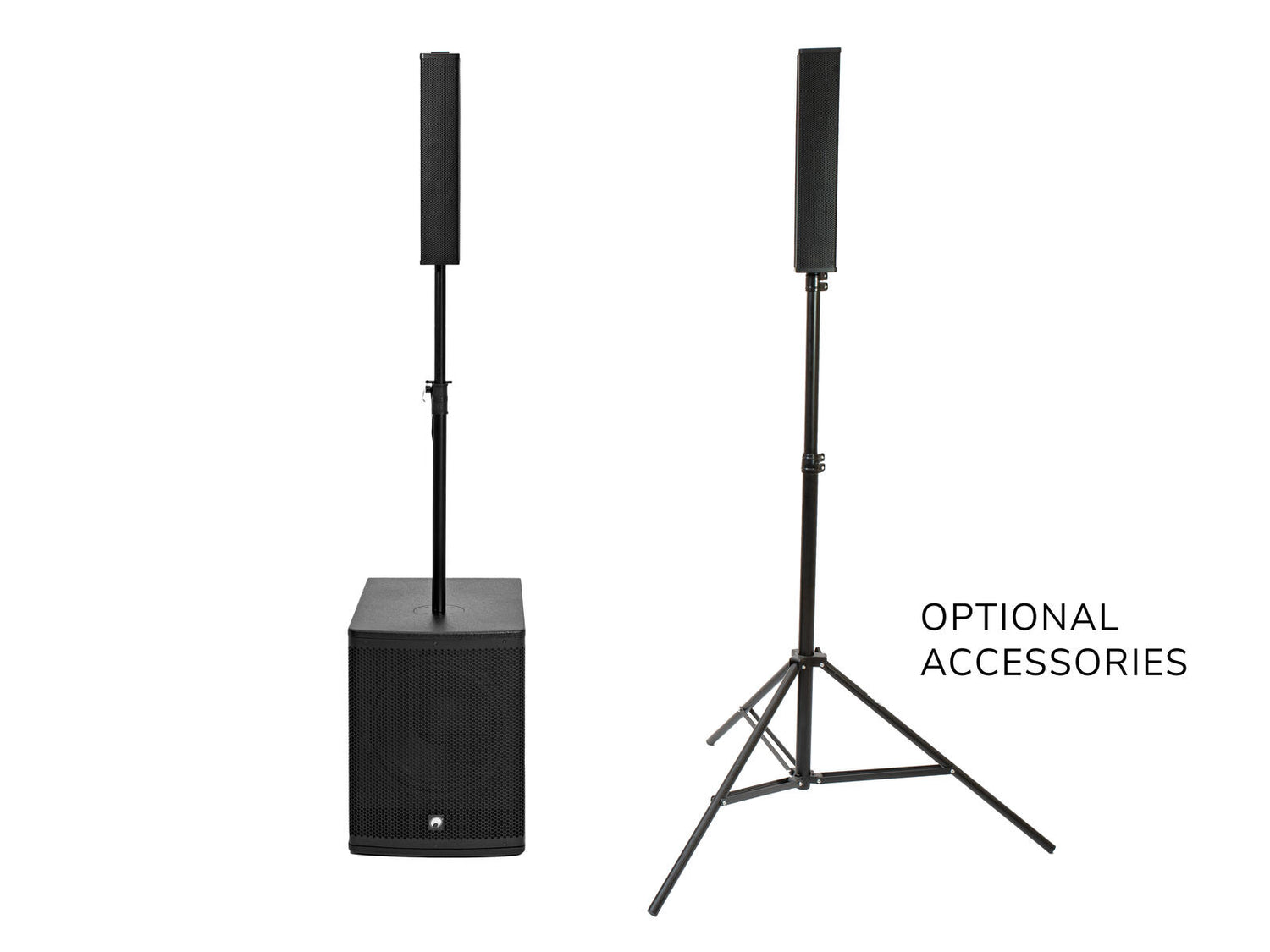

Distance tube
Height:	Maximum: 95 cm Minimum: 59 cm Adjustable in 4 steps with locking pin
Type (general stands):	Speaker stand/manual
Material:	Steel, painted
Power cord
Cable construction:	3 x 0.75 mm² H05VV-F
Cable length:	1.8 m
Speaker cable
Cable construction:	2 x 0.75 mm² speaker cable
Cable length:	2 m 5 m
