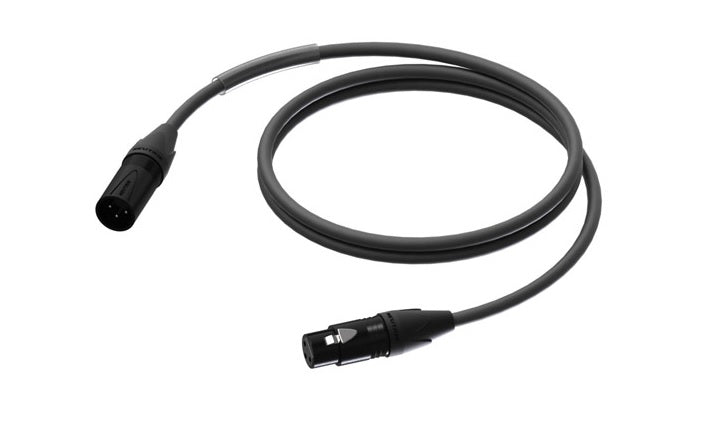

ProCab 3 pol DMX/AES XLR han > XLR hun m/sort Neutrik - 1 m

ProCab PRD953 DMX/AES XLR han > XLR hun m/sort Neutrik - 1 m

PRD953 er et 110 Ohm DMX-AES-kabel konstrueret ved brug af PMX222-kablet og udstyret med Neutrik 3-pin XLR-stik. Den fortinnede, 22 AWG, flettede dobbeltafskærmning (Al-foil + TC braiding), sammen med den fleksible ydre PVC-kappe, giver kablet en forhøjet brugervenlighed. PRD953 fås i forskellige længder fra 0,5 meter til 20 meter.

Type of cable: DMX AES cable
Inner conductor: 17 x 0.16 mm Tinned Copper
Inner conductor section: 0.342 mm²
Insulation color: Red / White
Number of conductors: 2
Overall shield: Aluminum foil + Tinned copper braiding 16 x 8 x 0.1
Filling: Cotton
Separator: None
Outer jacket: Flexible PVC
Outer jacket color: Dark Grey
Outer jacket dimensions: ø 6.5 mm ± 0.1 mm
American Wire Gauge: 22 AWG
Connection Type: XLR-3 Male to XLR-3 Female
Lead resistance: Less than 52 Ohms / km
Capacitance Conductor / Shield @ 1 MHz: 79 pF / m
Capacitance Conductor / Conductor @ 1 MHz : 50pF / m
Characteristic impedance: 110 Ohm
Fitted Connectors : NC3MXX-BAG, NC3FXX-BAG
