RCF installations mixer 9 input og 3 zoner

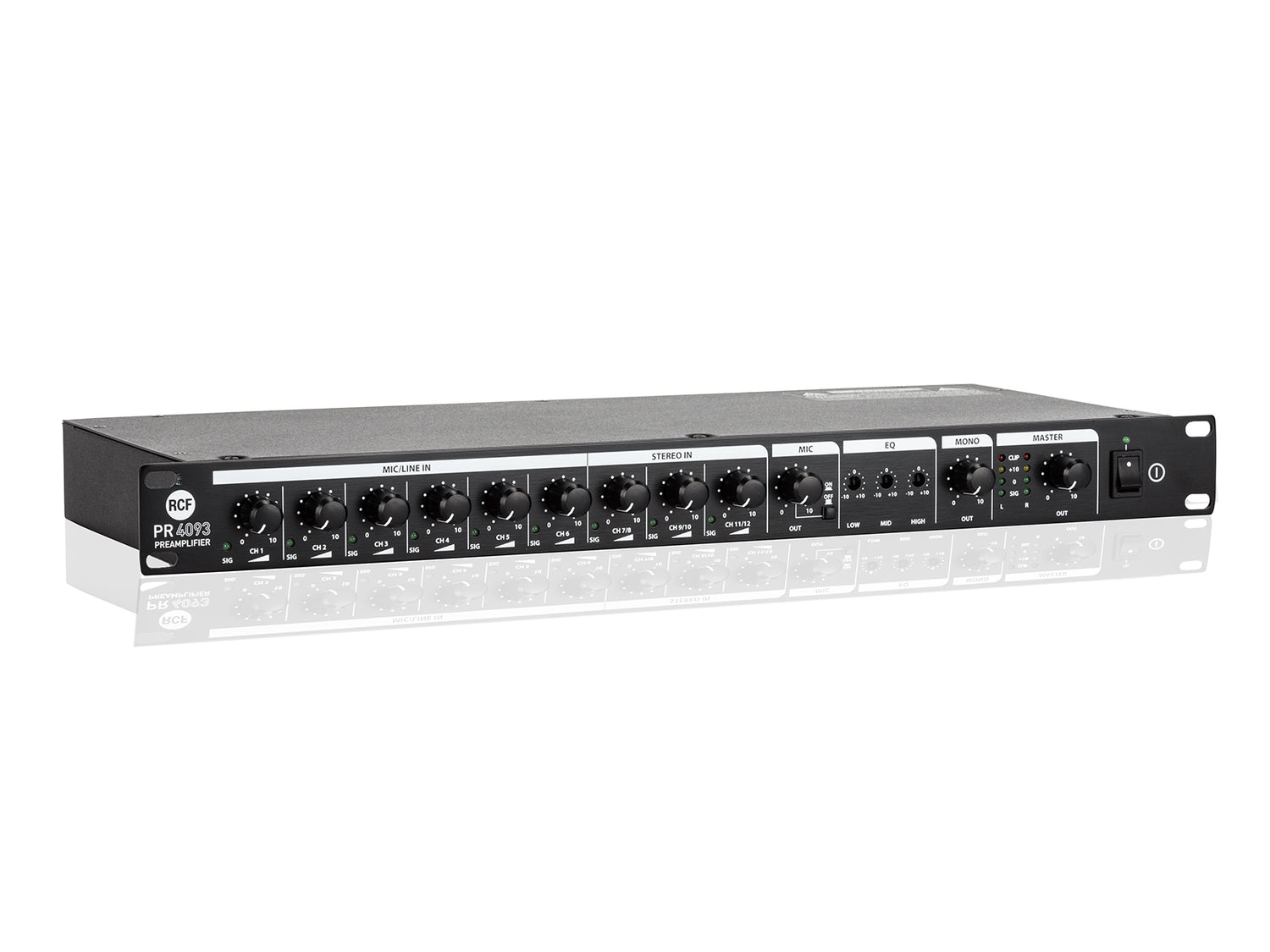

RCF PR4093

PR4093 er designet til at give en fleksibel løsning til paging- og musikapplikationer i PA-systemer. Den har 6 balancerede inputs mic/line med mulighed for Phantom-power.
Det første input har prioritet som aktiveres af et VOX-kredsløb. 3 stereo-input på RCA-stik er tilgængelige.
Outputs giver forskellige funktionaliteter som tone-kontrol på frontpanelet, dedikerede mixing af inputs 1-6 og forbindelse til optagelsesenheder.

MONO INPUTS (CHANNELS 1 TO 6, BALANCED)
Frequency Response: 20 ÷ 22 Hz ÷ kHz
Distortion (THD & N): <= 0,03% at 1 kHz
Sensitivity: -40 dBu (MIC) / 0 dBu (LINE)
Max. input level: -19 dBu (MIC) / +21 dBu (LINE)
Input impedance: 2 kOhm (MIC) / 19,5 kOhm (LINE)
Max. voltage gain (MIC): 60 dB to LINE OUT (balanced), 50 dB to REC OUT (unbalanced), 60 dB to MIC OUT (unbalanced), 55 dB to MONO OUT (unbalanced)
Max. voltage gain (LINE): 20 dB to LINE OUT (balanced), 10 dB to REC OUT (unbalanced), 20 dB to MIC OUT (unbalanced), 15 dB to MONO OUT (unbalanced)
Phantom power voltage: 18÷21 V

STEREO INPUTS (CHANNELS 7/8, 9/10, 11/12)
Frequency response: 20 ÷ 22 Hz ÷ kHz
Distortion (THD & N): <= 0.03% at 1 kHz
Sensitivity: +10 dBu
Max. input level: +21 dBu
Input impedance: 19.5 kOhm
Max. voltage gain (LINE): 10 dB to LINE OUT (balanced), 0 dB to REC OUT (unbalanced), 0 dB to MONO OUT (unbalanced)

OUTPUT SECTION
LINE OUT level: 0 dBu (± 2 dBu, balanced), max. +21 dBu
MIC OUT / MONO OUT level: 0 dBu (± 2 dBu, unbalanced), max. +21 dBu
LINE OUT impedance: 250 Ohm
MIC OUT / MONO OUT impedance: 125 Ohm

EQUALIZER
Low: ±15 dB at 80 Hz
Mid: ±12 dB at 2.5 kHz
High: ±15 dB at 8 kHz

CROSSTALK
Adjacent stereo inputs: Input to output:
POWER SUPPLY
Operating voltage: 220÷240 V ac (50 Hz), 24 V dc

PHISICAL SPECIFICATION
Height: 44 / 1,73 mm/inch
Width: 483 / 19,01 mm/inch
Depth: 200 / 7,87 mm/inch
Net Weight: 2,9 / 6,39 Kg/Lbs
