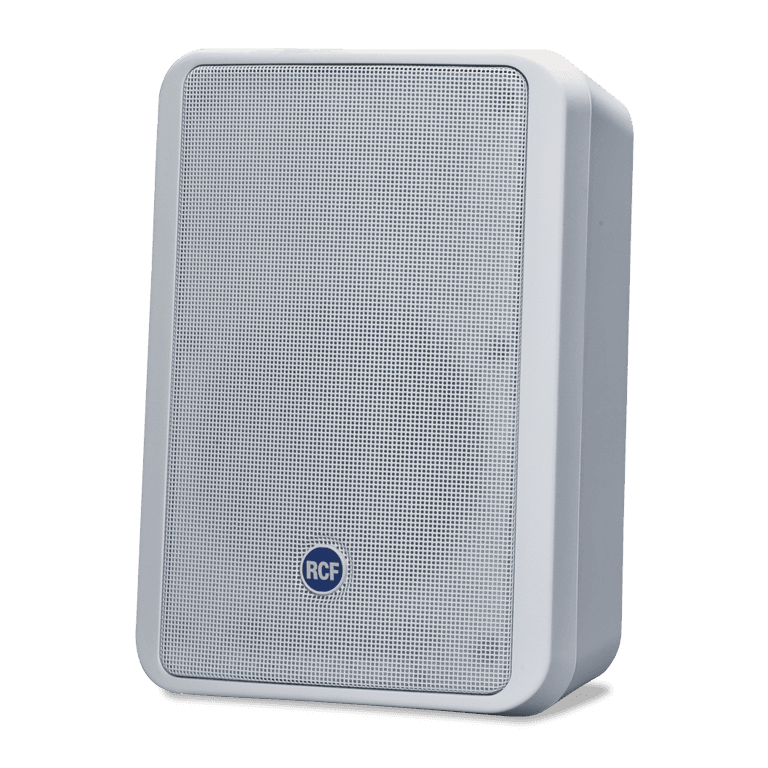

RCF seinäkiinnitettävä kaiutin MR55 kompakti 2-tie, Hvid

Acoustical Specifications

• Product type: Passive 2-way bass reflex installation loudspeaker
• Frequency response (-10dB): 55Hz – 25kHz
• Max SPL @ 1m: 110dB
• Coverage angle: 110°
• System sensitivity: 87dB
• Bass reflex tuning: 65Hz

Transducers

• Woofer: 1 x 5"
• Woofer diaphragm: Carbon fibre
• Dome tweeter: 1 x 0.75"
• Tweeter type: Soft dome, horn-loaded
• High-frequency cooling: Ferrofluid

Power Section

• Nominal impedance: 4 ohm
• Power handling: 175W
• Peak power handling: 700W Peak
• Crossover frequency: 3000Hz
• Crossover: Built-in low-inductance passive crossover
• HF protection: Dynamic protection

Connections

• Input connector: Push-type terminals
• Output connector: Push-type terminals

Cabinet

• Cabinet material: Self-extinguishing plastic
• Grille: Steel
• Available colours: Black / White
• Mounting: Hinged installation bracket included

Dimensions

• Height: 270mm
• Width: 187mm
• Depth: 172mm

Versions

• MR 55 Black: Part no. 13100016
• MR 55 W White: Part no. 13100017

Shipping

• Package height: 380mm
• Package width: 260mm
• Package depth: 260mm
• Package weight: 4.65kg

Compliance

• Safety: CE compliant
