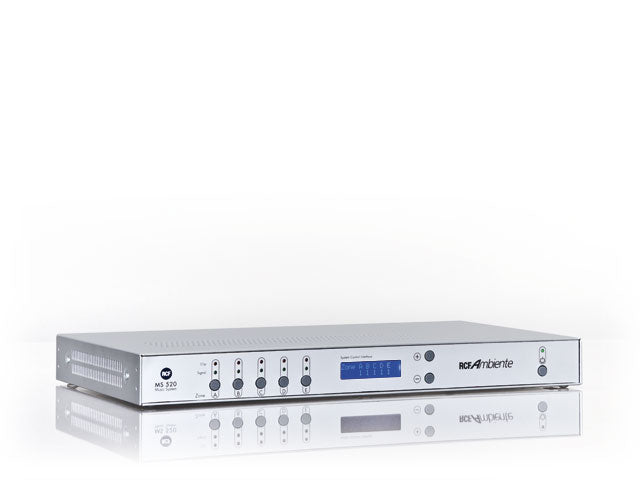

RCF Zonemixer forstærker MS520, 5 zoner, 20W

RCF Control unit m/ indbygget forstærker 5 x 20W

MS520 er en slim-line-enhed med tre forskellige musikprogrammer og en til paging. De kan transmittes i fem mono-zoner, eller alternativt i fire zoner hvor en er i stereo. Et auxiliary-input er tilgængeligt til hver af de fem zoner, til at forbinde f.eks. CD-afspillere og mixere. De baggrundsbelyste funktionstaster og display giver adgang til alle menuer til konfigurering og justering af systemet: Volume, Tone, Loudness, Output-settings, VOX.

3 Music Source Inputs individually selectable to each output

One Input Source with Override facility (Jukebox or Auto Announcer)

5 zoned outputs (Mono) or 1 Stereo and 3 Mono Output Zones

Can be expanded interlink of two or more MS520 units

Inbuilt 20W into 4 Ohms 5 channel Amplifiers (1 Stereo – 3 Mono Option)

Direct Inputs and Outputs on each zone

Paging or Alarm Input Override System

Full Digital Matrix control of functions to all 5 zones

Up to 10 remote control panels RC 62 can be connected to each MS 520

Power output: 5 x 20 Watt rms

Input section

Total number of inputs 9

Balanced 8

Unbalanced 1

Mono 6

Stereo 3

Line inputs 8

Line connectors RCA

Mic+Line inputs 1

Mic+Line connectors Euroblock

Mic+Line Phantom 16 V DC

VOX Yes

General Purpose Inputs (GPI) 1

Output section

Signal output number 6

Signal output connectors RCA

Power output connectors Euroblock

Processing

Tone controls Yes

Crossover 80 ÷ 200 Hz

Controls Configuration

Front panel Priority

Yes Chime tone Yes
