Tascam iXZ Mikrofon og instrument preamp til Apple

Tascam iXZ Mikrofon og instrument preamp til Apple

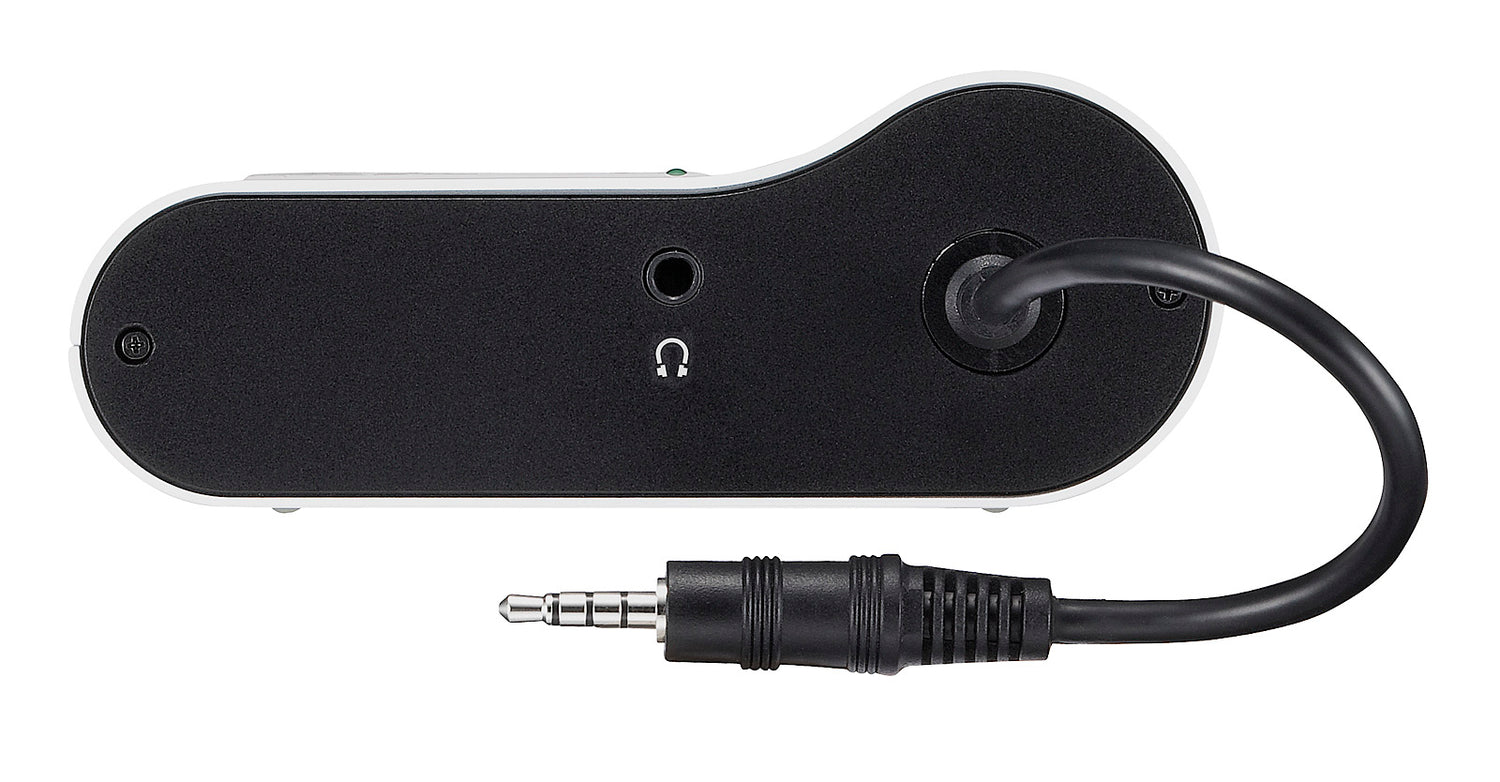

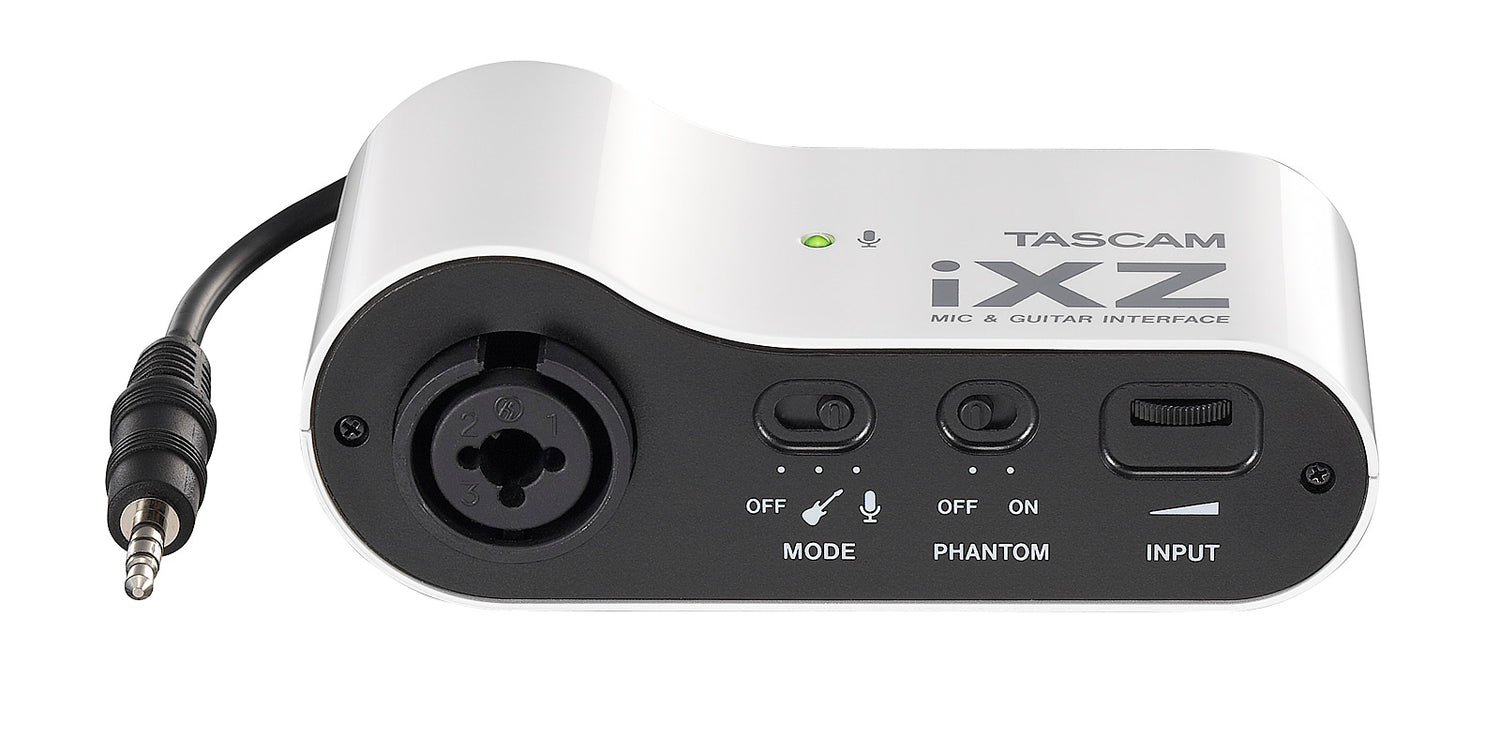

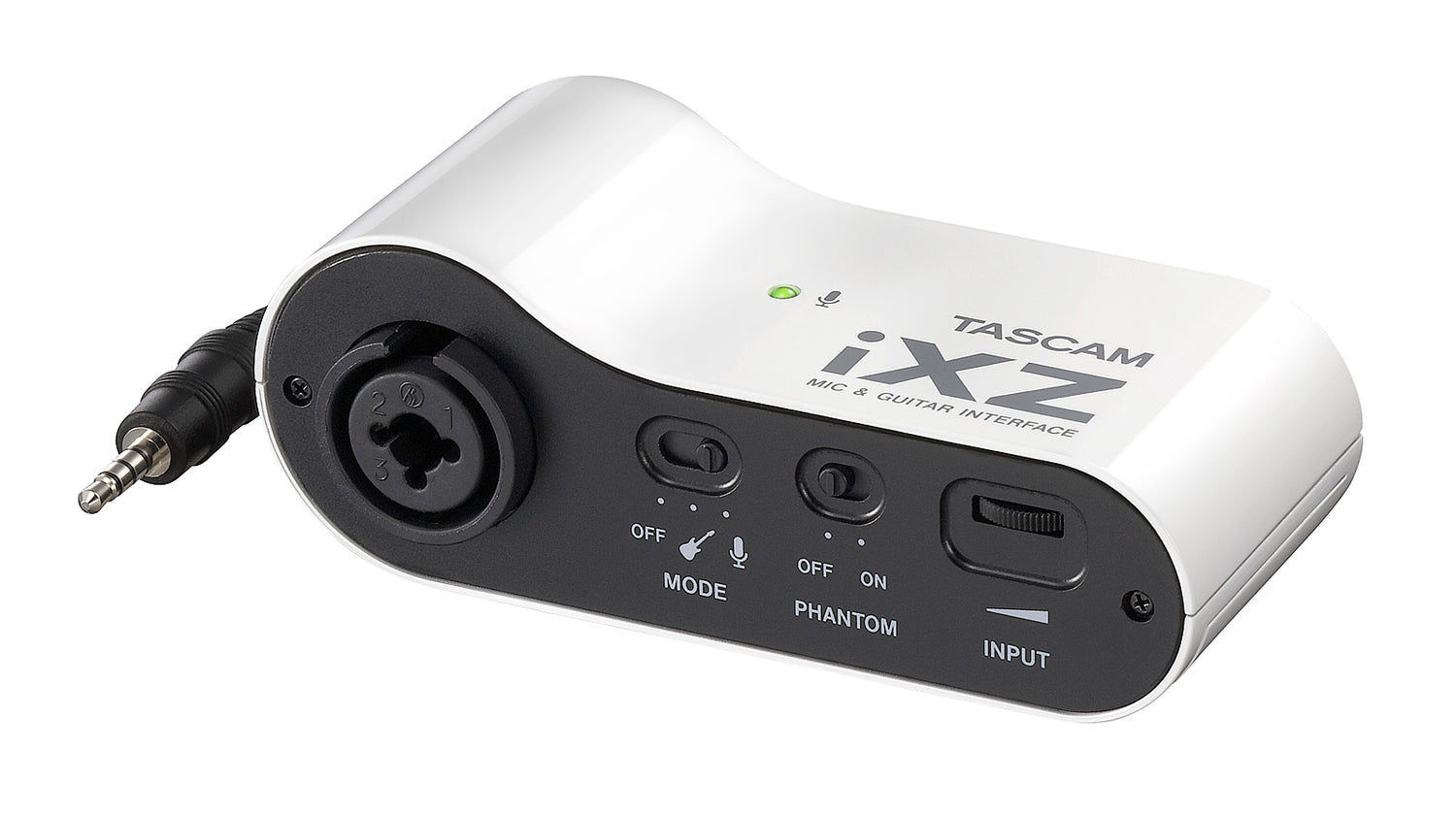

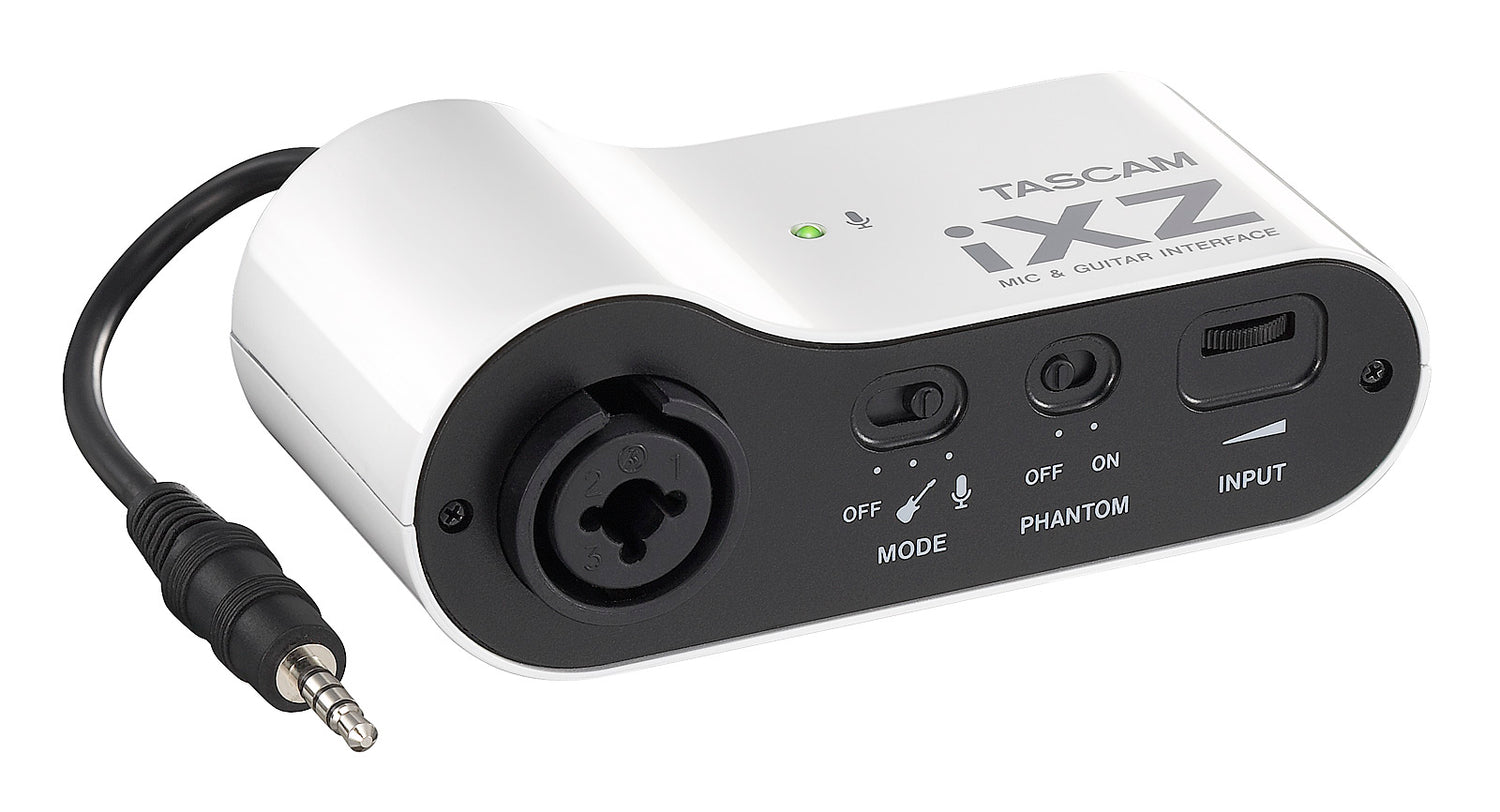

iXZ er et lommestørrelse, mic/instrument-input til Apple iPad, iPhone eller iPod Touch. En guitar, mikrofon eller en bas kan sættes til og interagere med sampling, en guitar-amp, optagelse og DJ-apps. iXZ tilbyder phantom-power til mikrofoner og kontrol til at styre dens gain. Enheden tilbyder også et hovedtelefon-output.

High-quality mic/instrument preamp for smartphones and tablet computers
Use your iOS/Android device for serious recording, guitar/bass/vocal training or karaoke
Balanced/unbalanced combo input connector (XLR/TS)
Switchable phantom power for condenser microphones
Level control on mic input
Headphone output
Connection with mobile device via 4-pin mini plug (CTIA standard connector; an Apple Lightning adapter or OMTP adapter may be required to connect to your mobile device)
No battery required when used as instrument preamp
Two AA batteries required for mic preamp and phantom power
Tascam 2-track recording app can be downloaded from AppStore at no charge
Apple is a trademark of Apple Inc., registered in the U.S. and other countries.

Analogue audio inputs and outputs
Microphone/Guitar input

Microphone input XLR-3-31 (1: GND, 2: HOT, 3: COLD)
Input impedance 2.4 kOhm
Nominal input level
-42 dBu (INPUT Volume set to max.)
+2 dBu (INPUT Volume set to min.)
Maximum input level +2 dBu
Guitar input 6.3-mm mono standard jack
Input impedance 470 kOhm
Maximum input level -10 dBV

Headphones output
3.5-mm stereo mini jack
iPod touch, iPhone, or iPad connection cable
3.5-mm 4-pin mini jack, 500 mm (CTIA standard, adapter required for OMTP-compatible devices)
Power supply and other specifications

Power supply
Two alkaline batteries or NiMH rechargeables (used for microphone input)
Power consumption
Approx. 0.32 W (with phantom current 5 mA)
Battery life time (continuous operation)
15 hours (with Evolta alkaline batteries, phantom current 5 mA)

Dimensions (W x H x D) 106 mm x 40 mm x 45 mm
Weight 101 g (excluding batteries)
Operation temperature range 5-40 °C
