dbx DriveRack PA2 -prosessori
€492,95
Kpl. hinta
/
Ei saatavilla
Kuvaus
Kuvaus
- Päivitetty versio suositusta DriveRack PA+:sta.
- Nyt parannetuilla suodattimilla ja DSP:llä sekä uudella ohjatulla asennusohjelmalla, joka opastaa sinua asennuksessa.

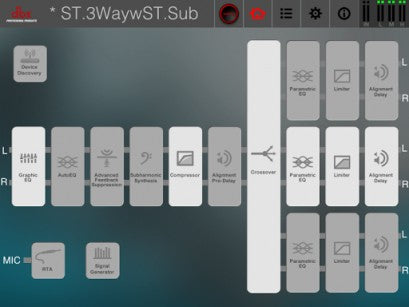

- Liitä laite lähiverkkoon, niin voit hallita kaikkia parametreja etänä PC-, MAC-, iOS- tai Android-laitteen kautta.
- DriveRack PA2:ssa on laaja tietokanta esiasetuksia, joissa on eri kaiutin- ja vahvistinmalleja.
- Laitteessa on lisäksi tilaa 75:lle omalle esiasetukselle.

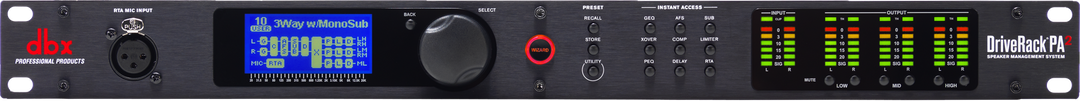

dbx DriveRack PA2
- All New Setup Wizard
- Streamlined AutoEQ
- All New AFS (Advanced Feedback Suppression)
- Mobile Control (Android®, iOS®, Mac®, Windows®)

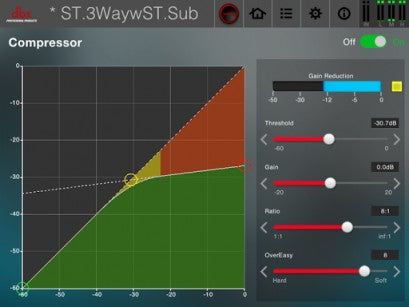

- dbx Compression

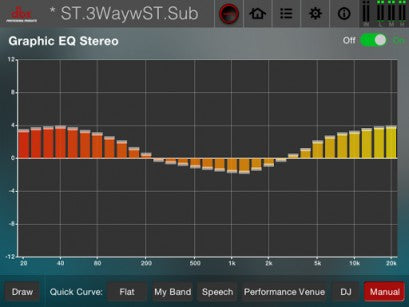

- Graphic EQ

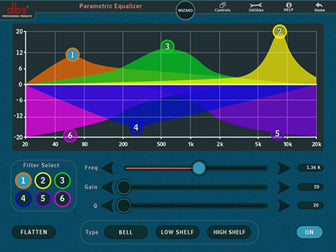

- 8-Band Parametric EQ (adjusted when using the AutoEQ) Input
- Subharmonic Synthesis
- Crossover (supports full range, 2-way, and 3-way systems)

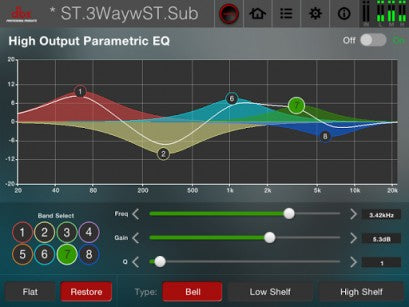

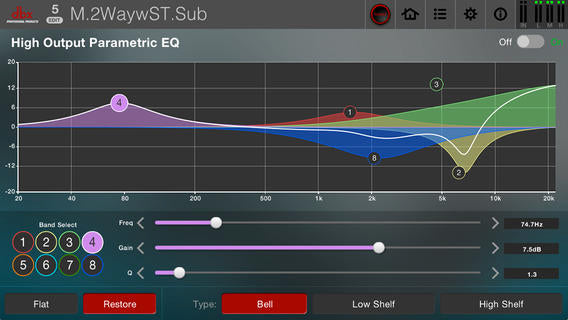

- 8-Band Parametric EQs (used for speaker tunings) Output
- dbx Limiting
- Driver Alignment Delays
Also known as: DBX Drive Rack PA2, Drive Rack-PA2, DriveRackPA2, DBX DriveRack-PA 2
Tekniske specifikationer
Tekniske specifikationer
DBX DriveRack PA2

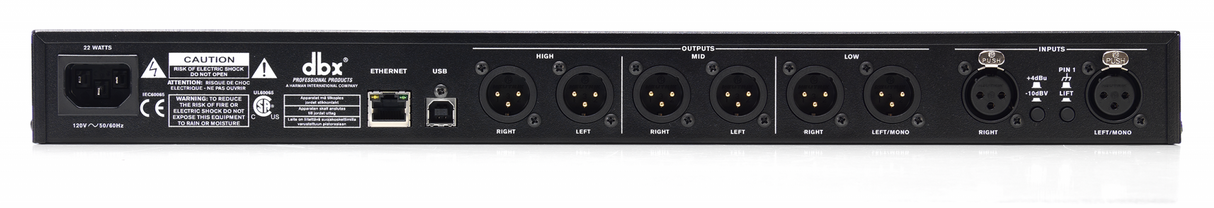

| Input | (2) line inputs. (1) RTA Mic input |
| Input Connectors | (2) Female XLR line inputs. (1) Female XLR RTA Mic input |
| Input Type | Electronically balanced/RF filtered |
| Input Impedance | >50 kohm |
| A/D Converter | dbx Type IV™ Conversion System |
| CMRR | > 45dB |
| Mic Preamp Phantom Power | +15VDC (RTA) |
| Mic Preamp Equivalent Input Noise (EIN) | < -117dB, 22Hz-22kHz, 150 ohm (RTA) |
| Output | (6) Line Outputs |
| Output Connectors | Male XLR |
| Output Type | Electronically balanced, RF filtered |
| Output Impedance | 120 Ω |
| Max Output | +20dBu |
| A/D Dynamic Range | 112 dB A-weighted, 110 dB unweighted |
| Type IV Dynamic Range | 123 dB with transient material, A-weighted, 22kHz BW; 121 dB with transient material, unweighted, 22kHz BW; 115 dB typical with program material, A-weighted, 22kHz BW |
| Alignment Delay | 10ms per channel (60ms total) |
| Sample Rate | 48kHz |
| Dynamic Range | >110 dB A-weighted, >107dB unweighted |
| THD+Noise | 0.003% typical at +4dBu, 1kHz, 0dB input gain |
| Frequency Response | 20Hz – 20kHz, +/- 0.5dB |
| Interchannel Crosstalk | < -110 dB, -120dB typical (input-to-output: < -100 dB) |
| Operating Voltage | 100-120VAC 50/60 Hz - EU: 220-240 VAC 50/60 Hz |
| Power Consumption | 22 W |
| Unit Weight | 5.25 lbs. (2.4 kg) |
| Shipping Weight | 6.75 lbs. (3.1 kg) |
| Dimensions | 1.75” (H) x 5.75” (D) x 19” (W), 4.4cm (H) x 14.6cm (D) x 48.26cm (W) |
| D/A Dynamic Range | 112 dB A-weighted, 110dB unweighted |
